– 12 –

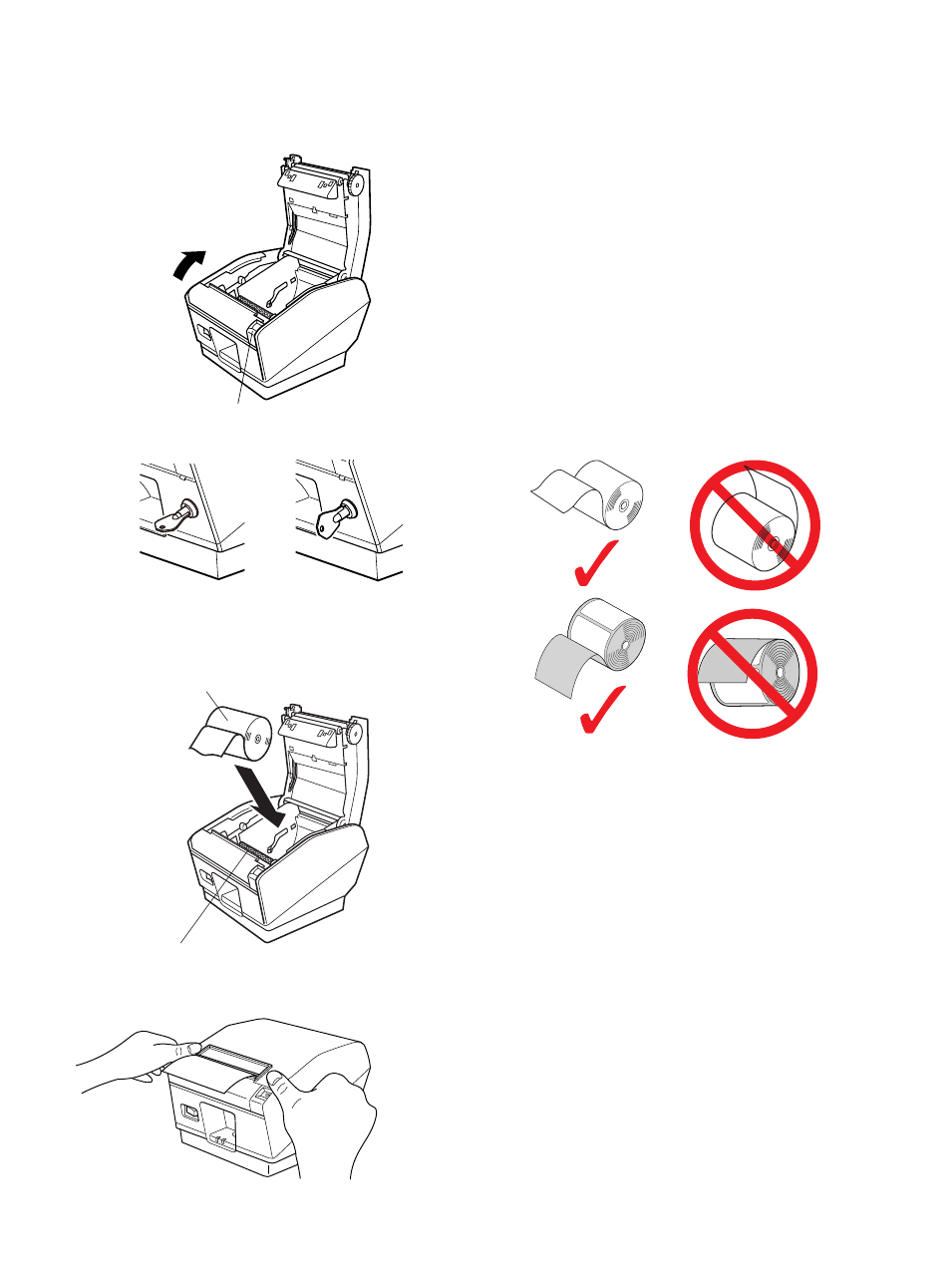

3-7. Loading the Paper Roll

Be sure to use paper roll that matches the printer’s specification.

Cover open lever

Paper roll

Tension bar

カバーオープンレバー

Push the cover open lever and open the printer

cover.

For the RX model:

Turn the key under the cover open lever so that the

lock is "OPEN." Then, push down on the cover

open lever and open the printer cover.

The key cannot be removed when the lock is

"OPEN." Before you remove the key, turn it so

that the lock is in the "CLOSE" position.

Set the paper roll in the direction as shown, and

pull on the leading edge of the paper towards you.

Note: Make sure not to pass the paper under the

tension bar. In the following condition,

remove the tension bar unit in accordance

with the procedure described in paragraphs

3-7-1:

• Paper thickness between 100 μm and

150 μm

Note: When using a paper roll with an 79.5 mm

width, attach the paper roll holder in ac-

cordance with the procedure described in

paragraph 3-7-2.

Push both sides as shown in order to close the

printer cover.
Note: When closing the printer cover, make sure

both sides close firmly, not just one side.

CLOSE

OPEN
