9-2. Auto Cutter Specifications

(1) Cutting frequency

Max. 20 cuts per minute

(2) Thickness of paper

0.065 ~ 0.15 mm (when using 115.5 mm width paper)

0.065 ~ 0.085 mm (when using 79.5 mm width paper)

9-3. Interface

RS-232C serial interface / Two-way parallel interface (IEEE1284) / USB interface / Ethernet

interface

9-4. AC Adapter (Option)

(1) Operating Voltage

Input Voltage: 90 to 264 V AC, 50/60 Hz

Output Voltage: DC 24 V±10%

(2) Current Consumption (DC 24 V at room temperature)

Standby:

Approx. 0.12 A

ASCII printing:

Approx. average 2.0 A

(Approx. 17.5% printing rate)

100% print duty:

Approx. peak 8.6 A

(Solid printing):

Approx. average 4.2 A

(Continuous solid printing should be 50 mm or less.)

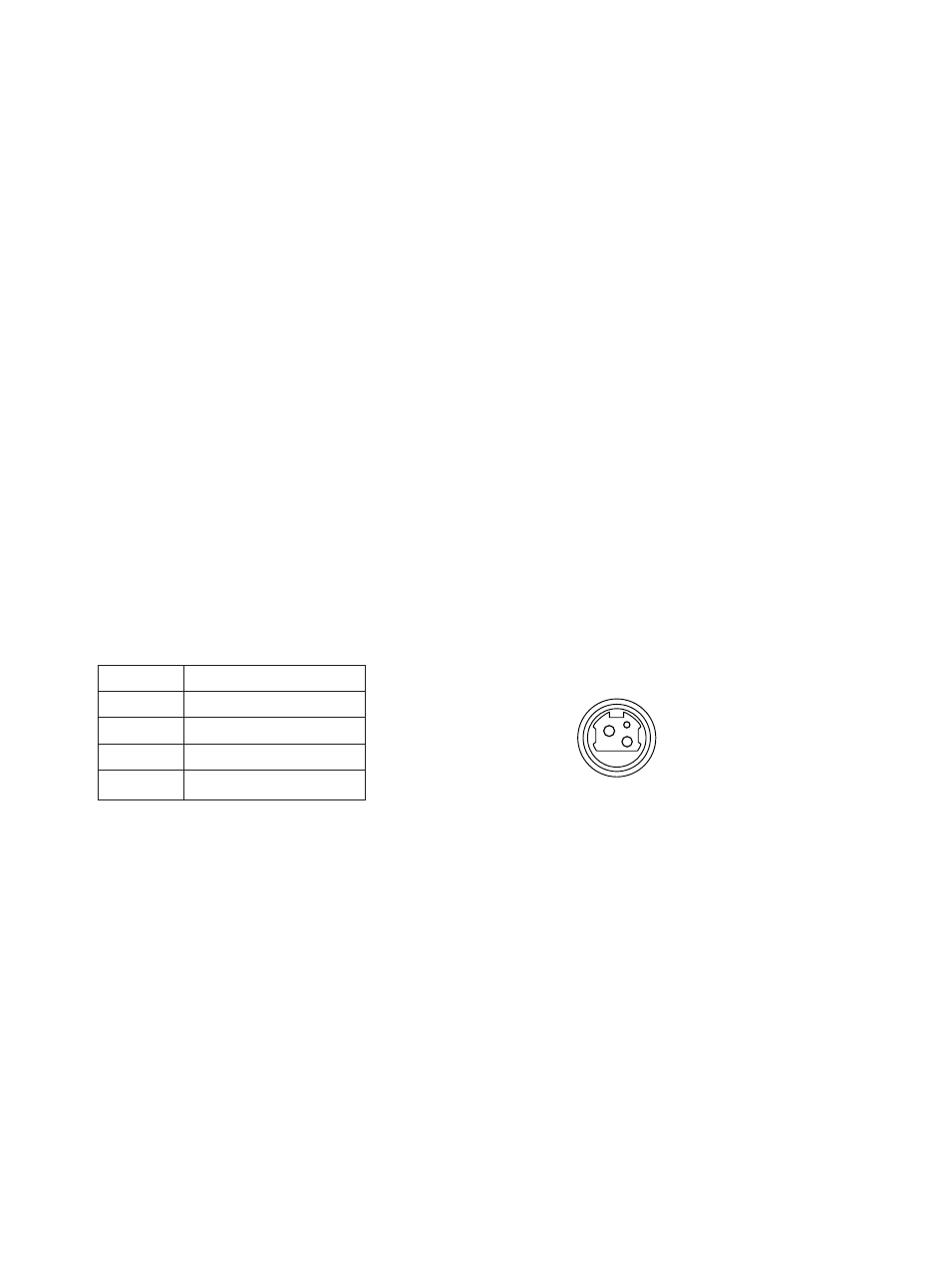

(3) Power Connector

Pin No.

Function

1

Drive power (24 V)

2

Signal GND

3

N.C.

Shell

Frame ground

Note:

• When using a printer power supply other than the optional AC adaptor (PS60A-24 se-

ries), be sure that the following cautions are observed.

• Use a power supply of DC 24 V ± 5% and more than 2.0 A (5.0 A Load 10 sec. Max.)

with SELV output and LPS or Class 2 output approved by IEC60950-1.

• Be careful about installing the printer in an area where there is noise. Take the appropri-

ate measures to protect against electrostatic AC line noise, etc.

1

2

3
