– 26 –

Adjustment value according to the paper you are using

Paper thickness

(µm)

When using the paper roll with a core whose inside diameter (A):ø12, outside diameter

(B):ø18

Detected diameter (C)

(Approx. mm)

Remained paper length

(Approx. m)

Level 1

Level 2

Level 3

Level 1

Level 2

Level 3

65

ш23

ш27

ш31

2.5

4.9

7.7

75

2.1

4.2

6.7

Paper thickness

(µm)

When using the paper roll with a core whose inside diameter (A): ø25.4, outside di-

ameter (B):ø32

Detected diameter (C)

(Approx. mm)

Remained paper length

(Approx. m)

Level 1

Level 2

Level 3

Level 1

Level 2

Level 3

65

ш36

ш40

ш44

2.8

6.4

10.4

75

2.4

5.5

9.0

85

2.1

4.9

7.9

95

1.9

4.4

7.1

105

1.7

4.0

6.4

130

1.4

3.2

5.2

150

1.2

2.8

4.5

Note:

1) The adjuster is factory-set at level 1 on the horizontal

layout and level 3 on the vertical/wall-mount layout.

2) The detected diameter and remained paper length

given above are calculated values, and there may be

some variances depending on the rolled state of the

paper or the actual mechanism.

3) If thick paper is used (paper thickness between 100 μm

and 150 μm), the paper roll may loosen and cause

variances in the detected values. Therefore, set the

adjustor to Level 3 for horizontal layout.

4) The near end sensor doesn't correspond to the thermal

label paper roll (tack label paper).

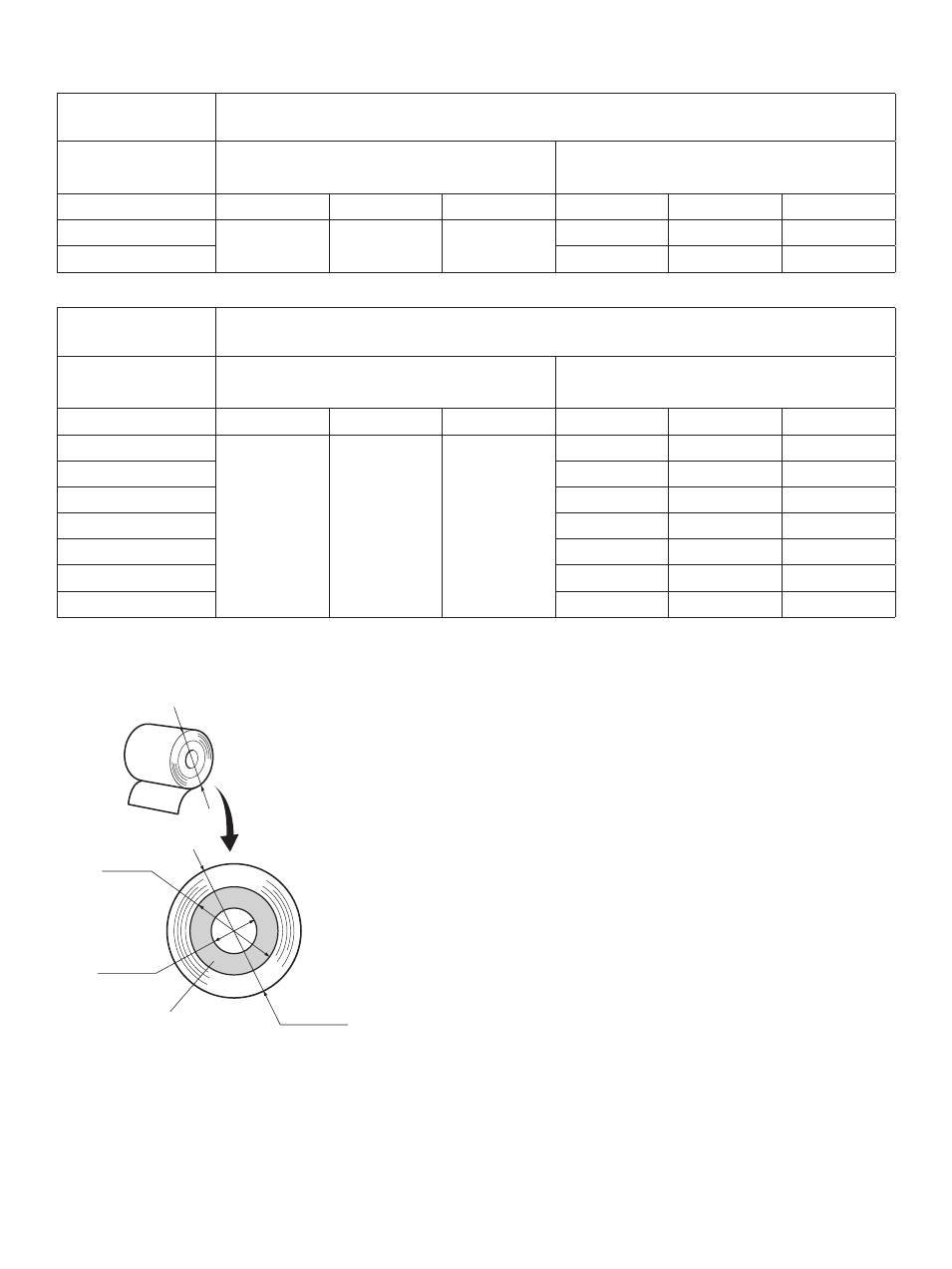

C
