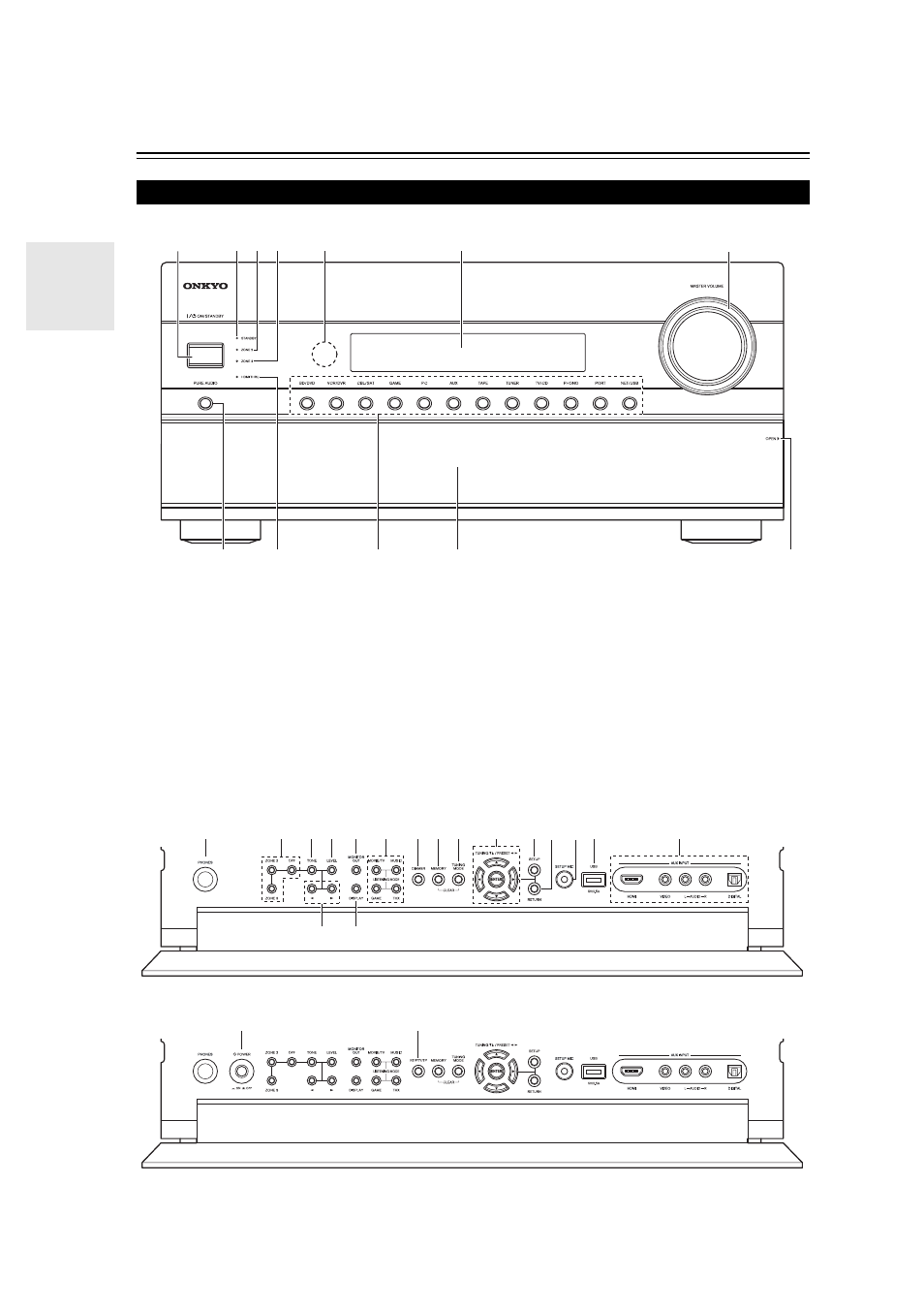

Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
ON/STANDBY button ( ➔ 25)
STANDBY indicator (
➔
25)
ZONE 2 indicator ( ➔ 77)
ZONE 3 indicator ( ➔ 77)
Remote control sensor/transmitter ( ➔ 4)
Display (
➔
9)
MASTER VOLUME control and indicator ( ➔ 26)
PURE AUDIO button (
➔
36)
HDMI THRU indicator ( ➔ 61)
Input selector buttons ( BD/DVD, VCR/DVR,
CBL/SAT, GAME, PC, AUX, TAPE, TUNER,
TV/CD, PHONO, PORT and NET/USB) (
➔ 26)
(North American models)
(European and Asian models)
Front Panel
Front flap Pull here to open the flap.
