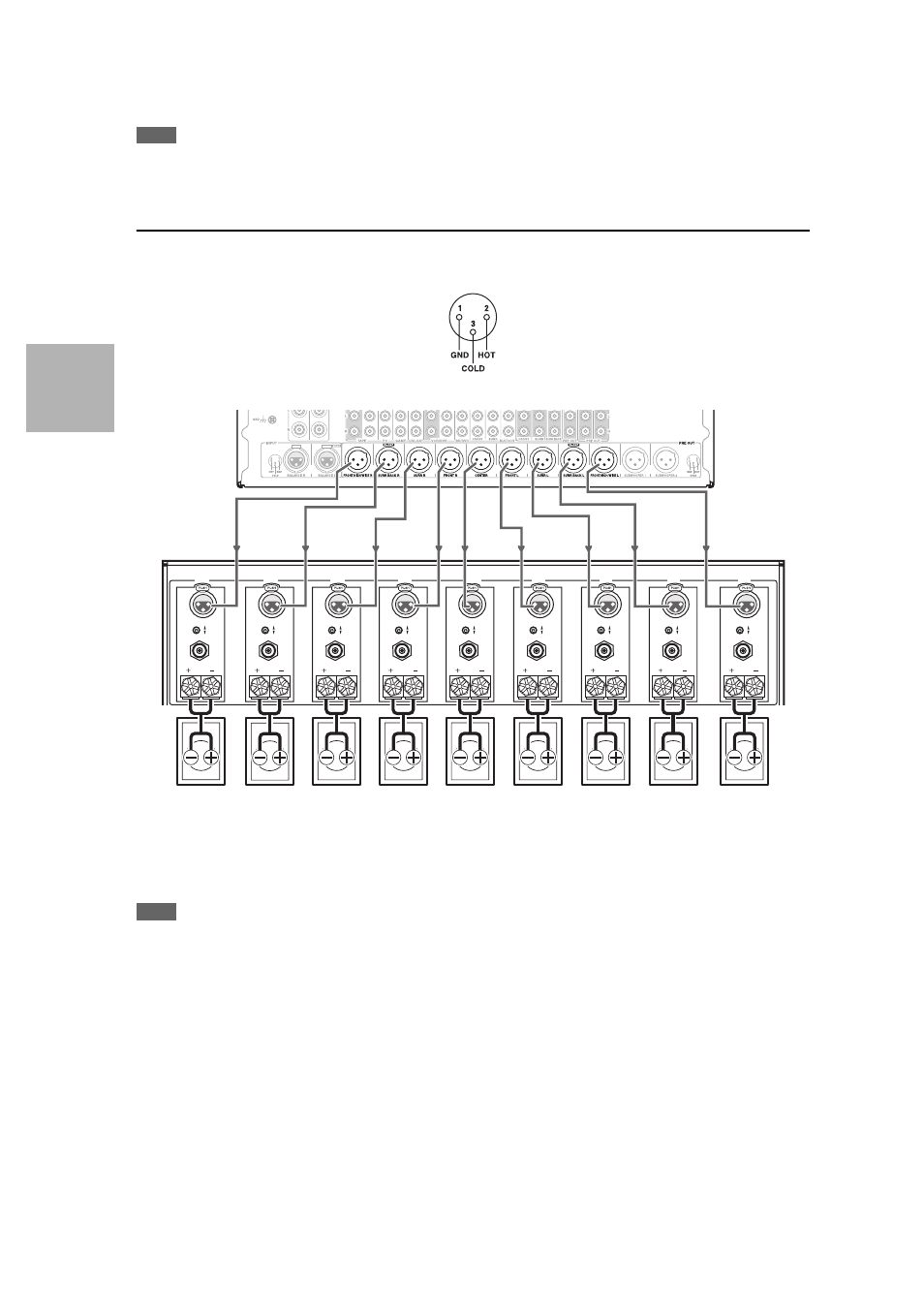

Connecting a Power Amplifier with XLR Inputs
You can connect the AV controller to a multichannel power amplifier with balanced XLR input jacks by using several
XLR audio cables.
The AV controller’s balanced PRE OUT jacks are wired as shown.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
Note
*1 Specify crossover frequency for the channel that you want to output in “Speaker Configuration” ( ➔ 48).
*2 If you use the front high and wide speakers at the same time, you need to set the “Front High + Front Wide” setting to “Yes”
(
➔ 48).
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURROUND BACK
RIGHT SURROUND
RIGHT
12V TRIGGER
IN OUT
SURROUND
LEFT
CENTER
FRONT
LEFT
SURROUND BACK
LEFT FRONT
RIGHT
INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
FRONT HIGH/
FRONTWIDE
LEFT
INPUT
SELECT
OUTPUT
FRONT HIGH/
FRONT WIDE
INPUT
SELECT
OUTPUT
RIGHT
Surround
back/Front
wide right
speaker
*2
AV controller
Multichannel
power amplifier
Surround
right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
back/Front
wide left
speaker *2
Front high/
Front wide
right speaker *1
Front high/
Front wide
left speaker *1
