Chapter 3 - Operation
AMC-101
Installation & Operation Manual
3-2
Controls and Indicators
Power Supply
AC
DB-9 Connector
(ALARM)
JP2
JP1
AMC-RELAY
(ALARM)
Card
JP1
JP4
JP2
GND
JP6
JP7
VCC
ERR-CFG
IDLE-EN
AMC-101
Module
AMC-101
Module
LEDs Card

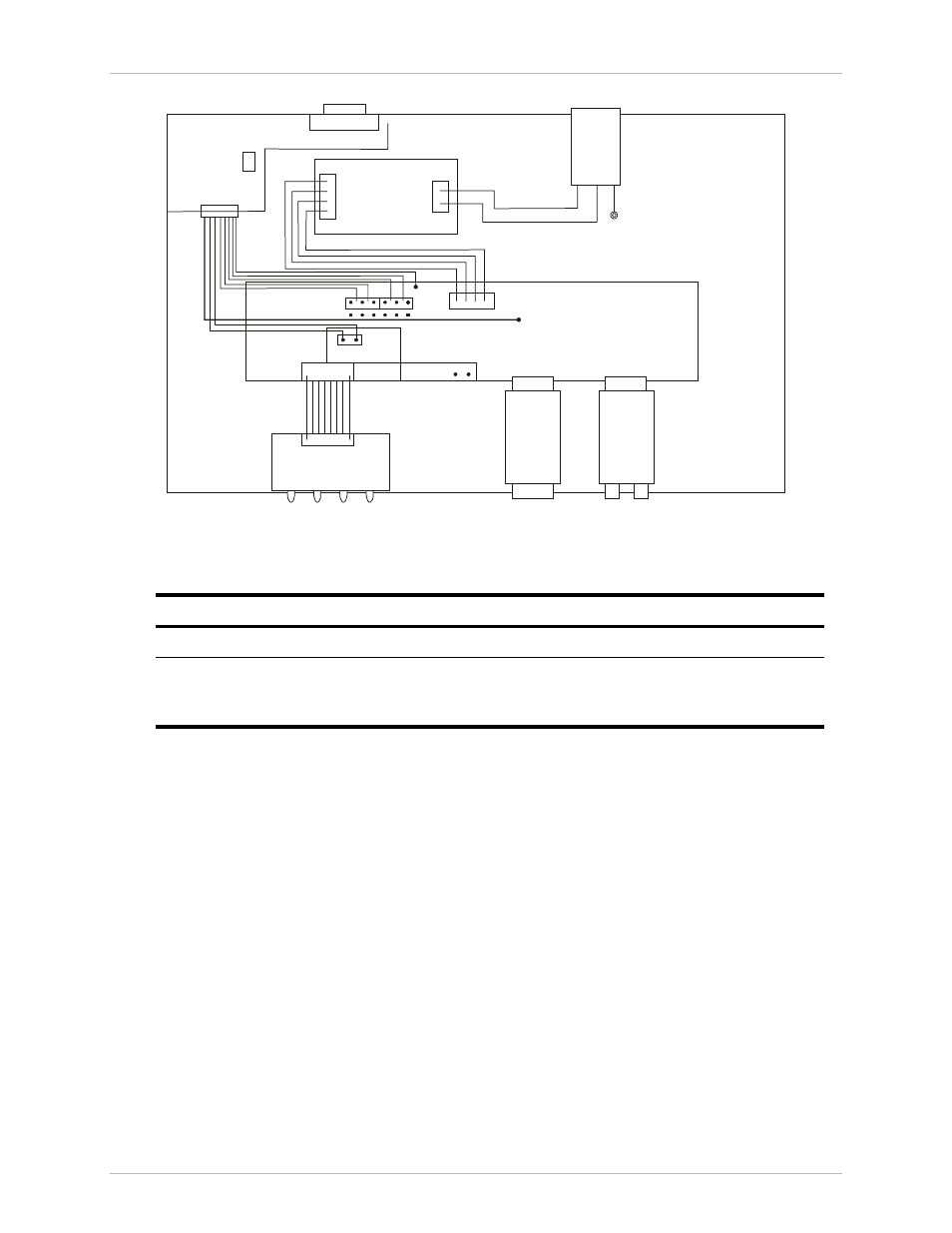

Figure 3-2 Jumper Locations and Functions
Table 3-3
Functions and Settings
Jumper ID
Function
Conditional Setting
JP2
ERR-CFG
Mounted (Factory Default)
JP7
Idle-Enable
If mounted, idle will be transmitted when no signal
is received from the other side. Not mounted
(Factory Default)
