AMC-101 Installation & Operation Manual
Chapter 2 - Installation & Setup
AMC-101 Modules
2-7
MM/ST/13/R Module

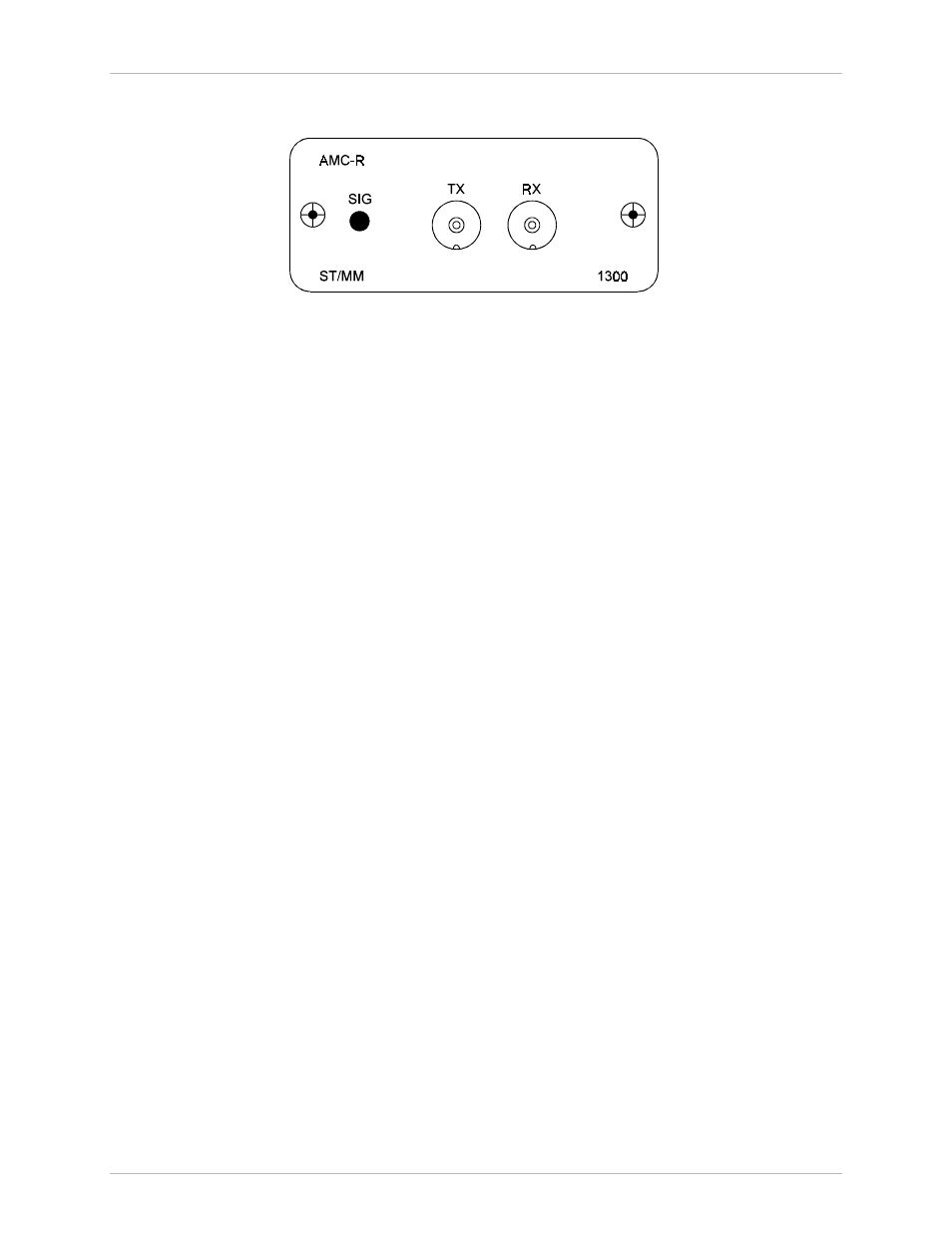

Figure 2-8 MM/ST/13/R Module Front Panel
Wavelength:
1300 nm
Connector:
ST
Used with:
Multimode fiber
Protocols supported:
STS-3c, STM-1, STS-1, FDDI, TAXI and Fast
Ethernet
Timing mode:
Retimed
Coding method:
4B/5B, NRZ
Optical output into 62.5/125 fiber:
-18 dBm
Receiver sensitivity:
-31 dBm
Maximum input power:
-14 dBm
