AMC-101 Modules

2-19

SM/FC/15LH/R Module

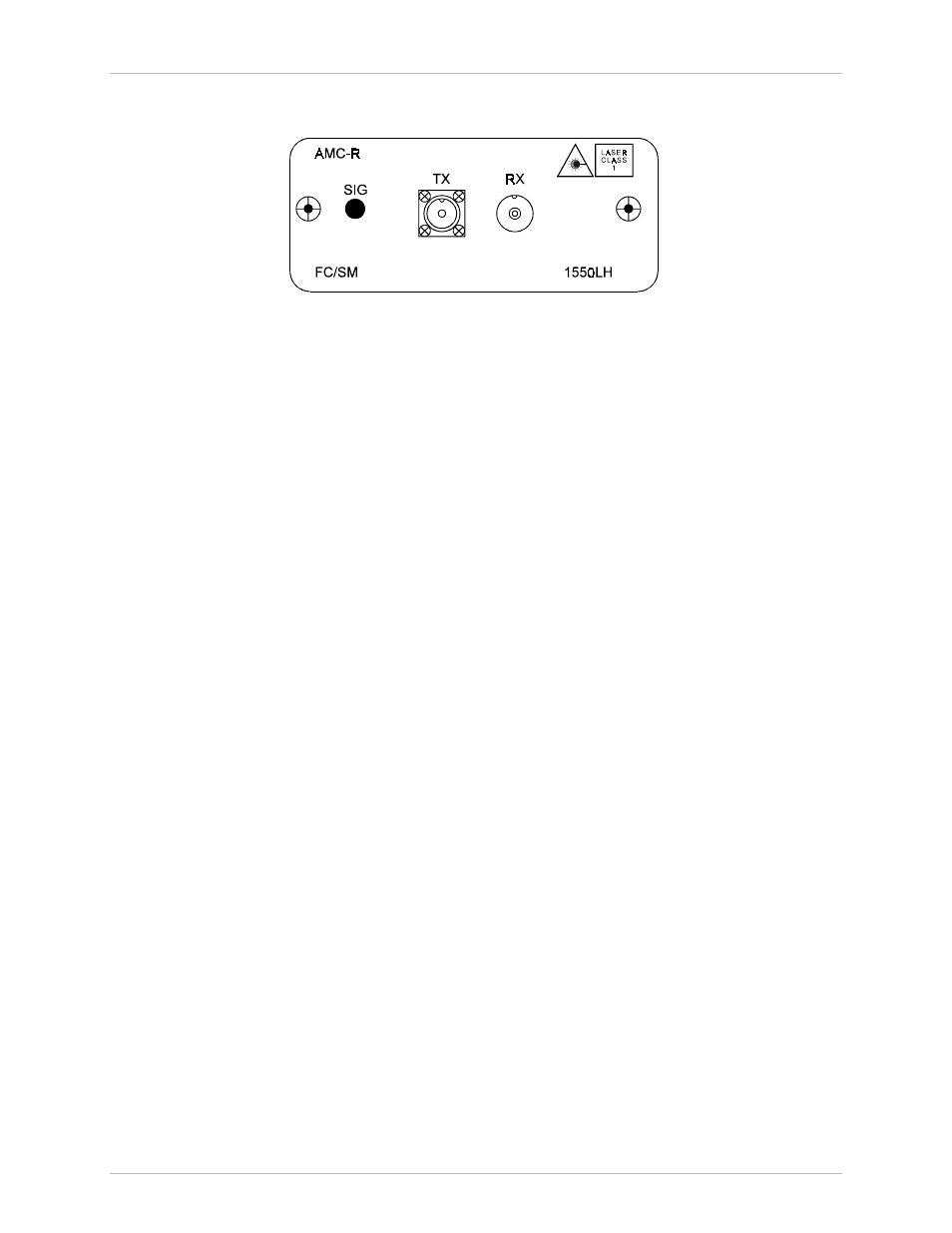

Figure 2-20 SM/FC/15LH/R Module Front Panel

Wavelength:

1550 nm

Connector:

Used with:

Single mode fiber

Protocols supported:

STS-3c, STM-1, STS-1, FDDI, TAXI
and Fast Ethernet

Timing mode:

Retimed

Coding method:

4B/5B, NRZ

Optical output into 9/125 fiber:

-2 dBm

Receiver sensitivity:

-34 dBm

Maximum input power:

-1 dBm
