AMC-101 Installation & Operation Manual Chapter 1 - Introduction
General Applications 1-3
1.3 General Applications
A single AMC-101 is used to connect two devices operating with different
fiber or electrical interfaces (see Figure 1-1).
ATM Station
UTP Cat 5 1300 nm
Single Mode Fiber 155 Mbps
AMC-101 ATM Switch

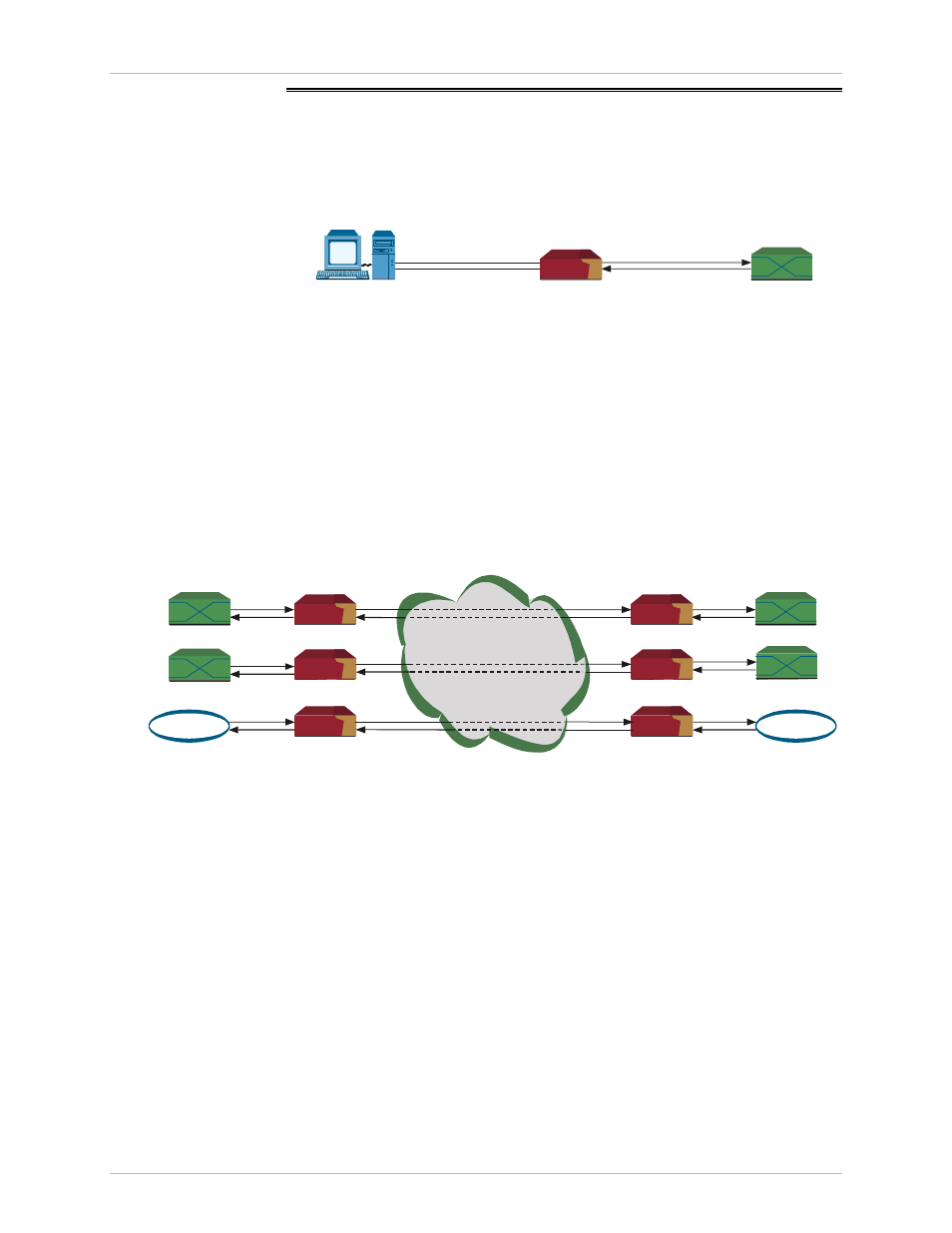

Figure 1-1 Dissimilar Device Connectivity
A pair of AMC-101s connect two similar devices over different media types
(see Figure 1-2).
FDDI FDDI
AMC-101 ATM Switch ATM Switch
AMC-101
AMC-101 AMC-101
AMC-101
AMC-101
Coax
155 Mbps
Coax
155 Mbps
MMF
1300 nm
MMF
1300 nm
MMF
850 nm
MMF
850 nm
Token Ring Token Ring
PTT Single Mode
1300 nm
Figure 1-2 Dual Similar Device Connectivity
