AMC-101 Installation & Operation Manual
Chapter 2 - Installation & Setup
AMC-101 Modules
2-15
SM/ST/13LH/R Module

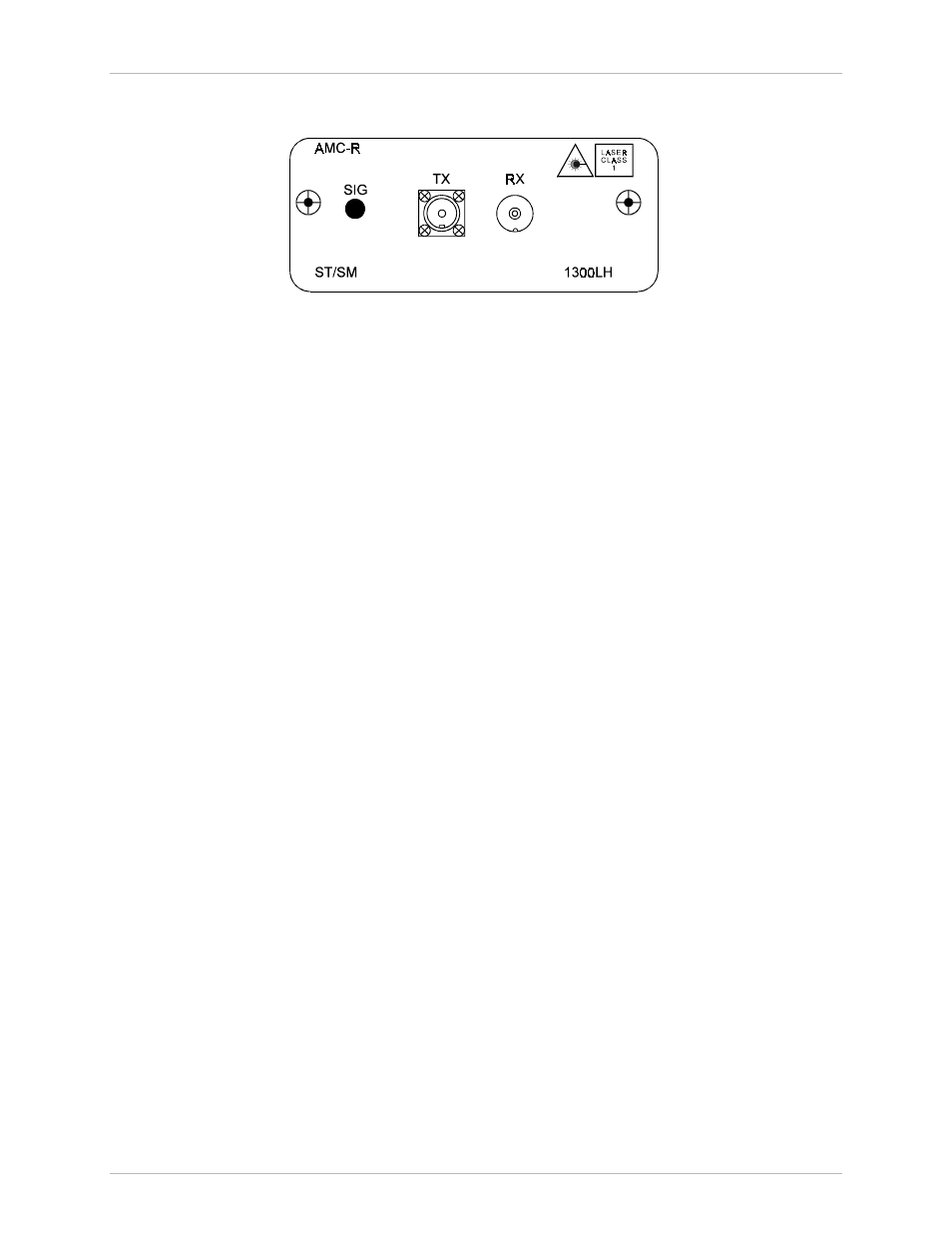

Figure 2-16 SM/ST/13LH/R Module Front Panel
Wavelength:
1300 nm
Connector:
ST
Used with:
Single mode fiber
Protocols supported:
STS-3c; STM-1, STS-1, FDDI, TAXI and Fast
Ethernet
Timing mode:
Retimed
Coding method:
4B/5B, NRZ
Optical output into 9/125 fiber:
-2 dBm
Receiver sensitivity:
-34 dBm
Maximum input power:
-1 dBm
