Chapter 2 - Installation & Setup
AMC-101
Installation & Operation Manual
2-10
AMC-101 Modules
SM/ST/13/T Module

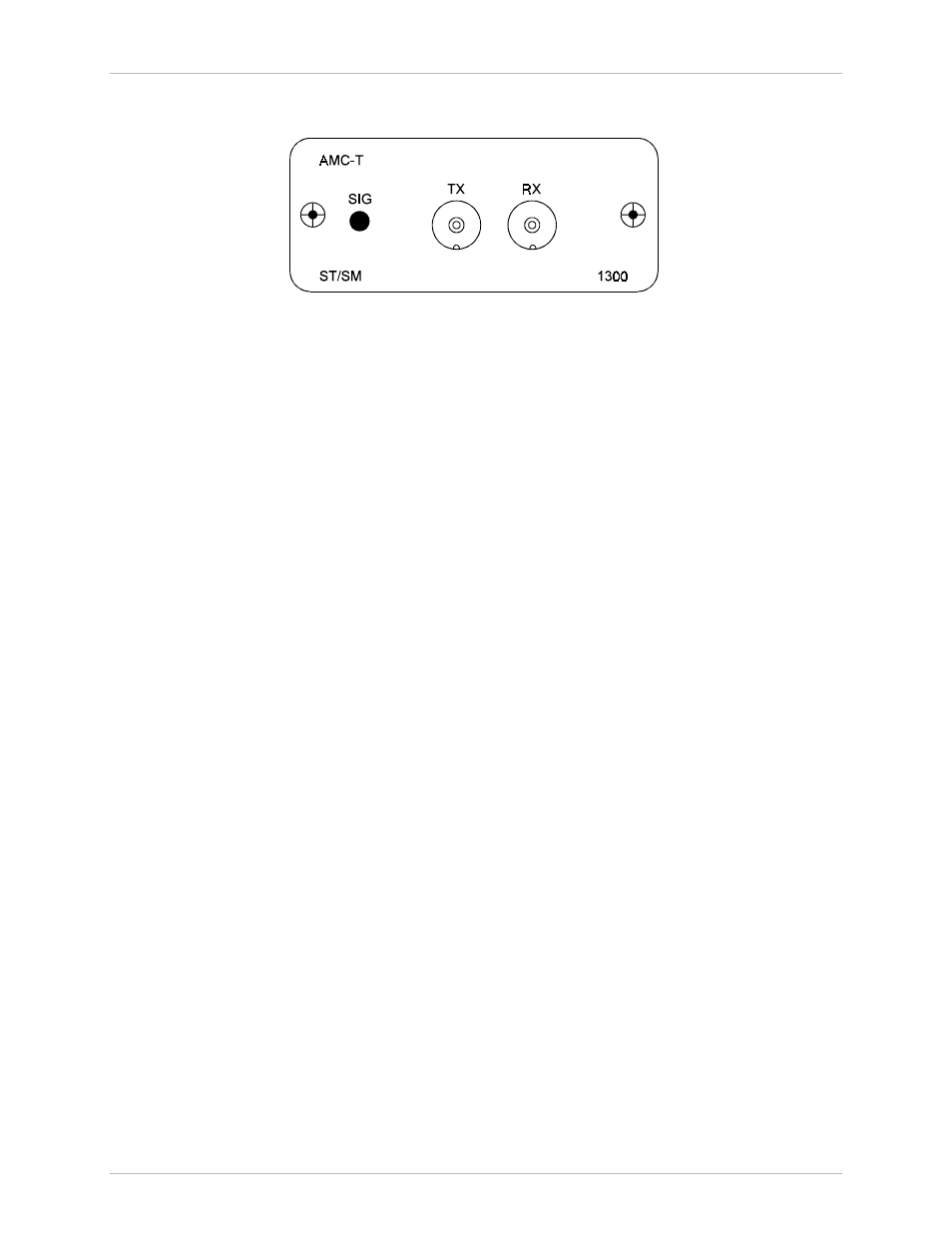

Figure 2-11 SM/ST/13/T Module Front Panel
Wavelength:
1300 nm
Connector:
ST
Used with:
Single mode fiber
Protocols supported:
Any two level optical protocols up to
155 Mbps
Timing mode:
Transparent
Coding method:
4B/5B, NRZ
Optical output into 9/125 fiber:
-15 dBm
Receiver sensitivity:
-31 dBm
Maximum input power:
-1 dBm
