AMC-101 Installation & Operation Manual Chapter 2 - Installation & Setup
AMC-101 Modules 2-27
STP/155/R Module

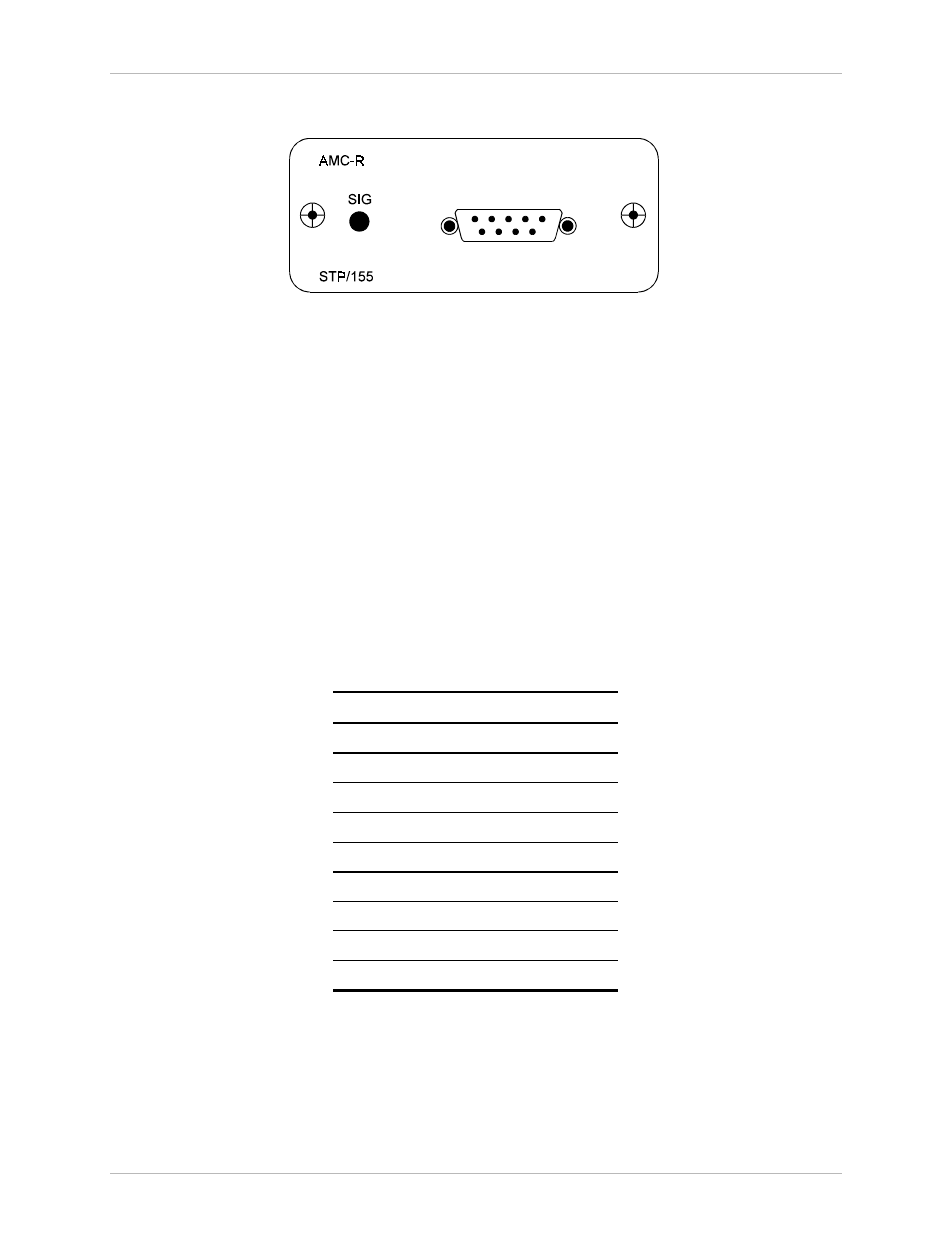

Figure 2-28 STP/155/R Module Front Panel
Connector: DB-9
Used with: STP type 1 cable
Protocols supported: STS-3c
Timing mode: Retimed
Coding method: NRZ
Range: 100 m
Impedance: 150 Ω
Table 2-1 STP/155/R Pinout
Pinout
Pin 1 Rx+
Pin 2
Pin 3
Pin 4
Pin 5 Tx+
Pin 6 Rx-
Pin 7
Pin 8
Pin 9 Tx-
