Chapter 2 - Installation & Setup
AMC-101
Installation & Operation Manual
2-8
AMC-101 Modules
MM/ST/13/T Module

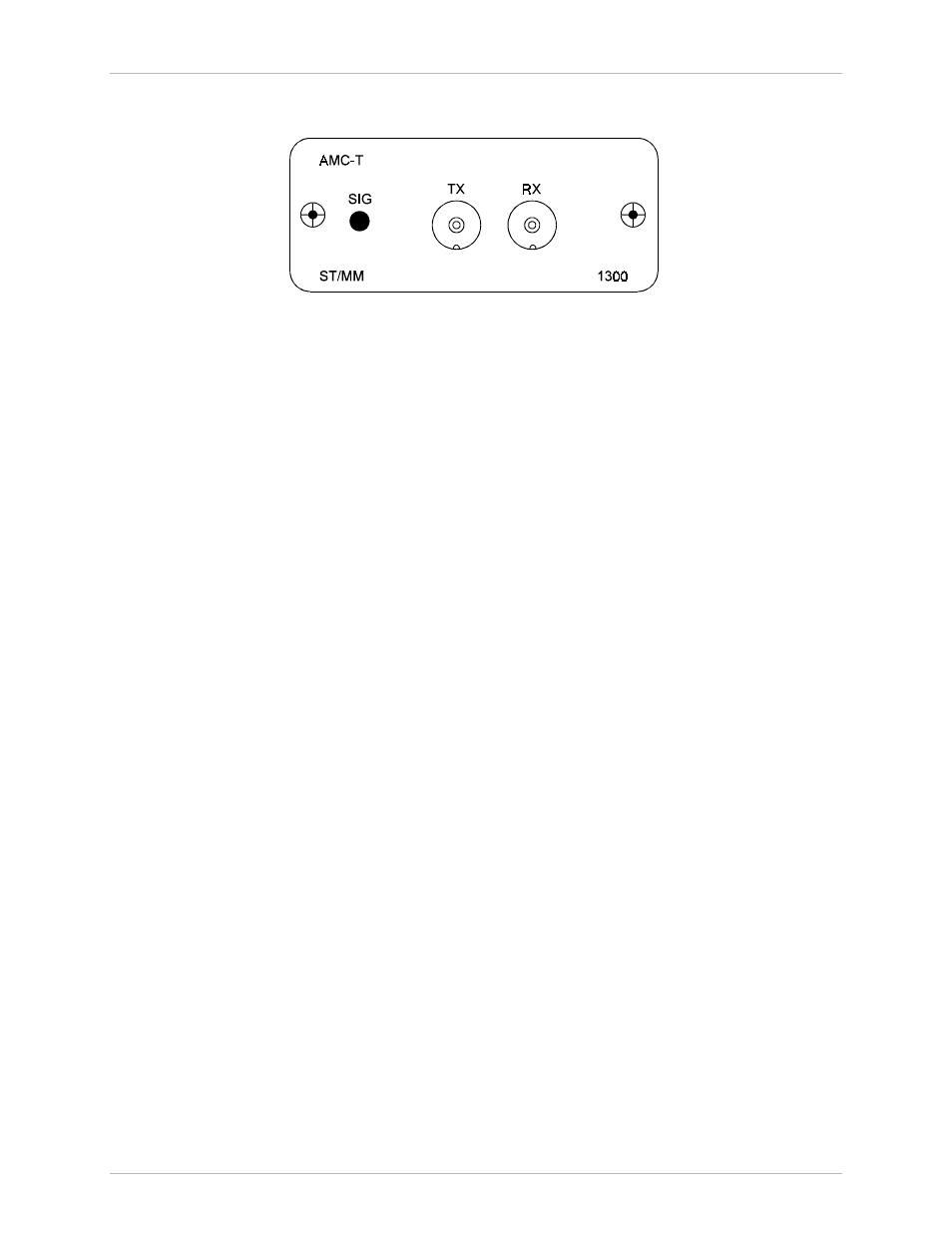

Figure 2-9 MM/ST/13/T Module Front Panel
Wavelength:
1300 nm
Connector:
ST
Used with:
Multimode fiber
Protocols supported:
Any two level optical protocols up to
155 Mbps
Timing mode:
Transparent
Coding method:
4B/5B, NRZ
Optical output into 62.5/125 fiber:
-18 dBm
Receiver sensitivity:
-31 dBm
Maximum input power:
-14 dBm
