2.4 AMC-101 Modules

The upper part of the module front panel is AMC-R for a Retimed Timing
mode; the lower part is AMC-T for a Transparent Timing mode. In both
panels, the module name is labeled at panel’s bottom.

MM/SC/13/R Module

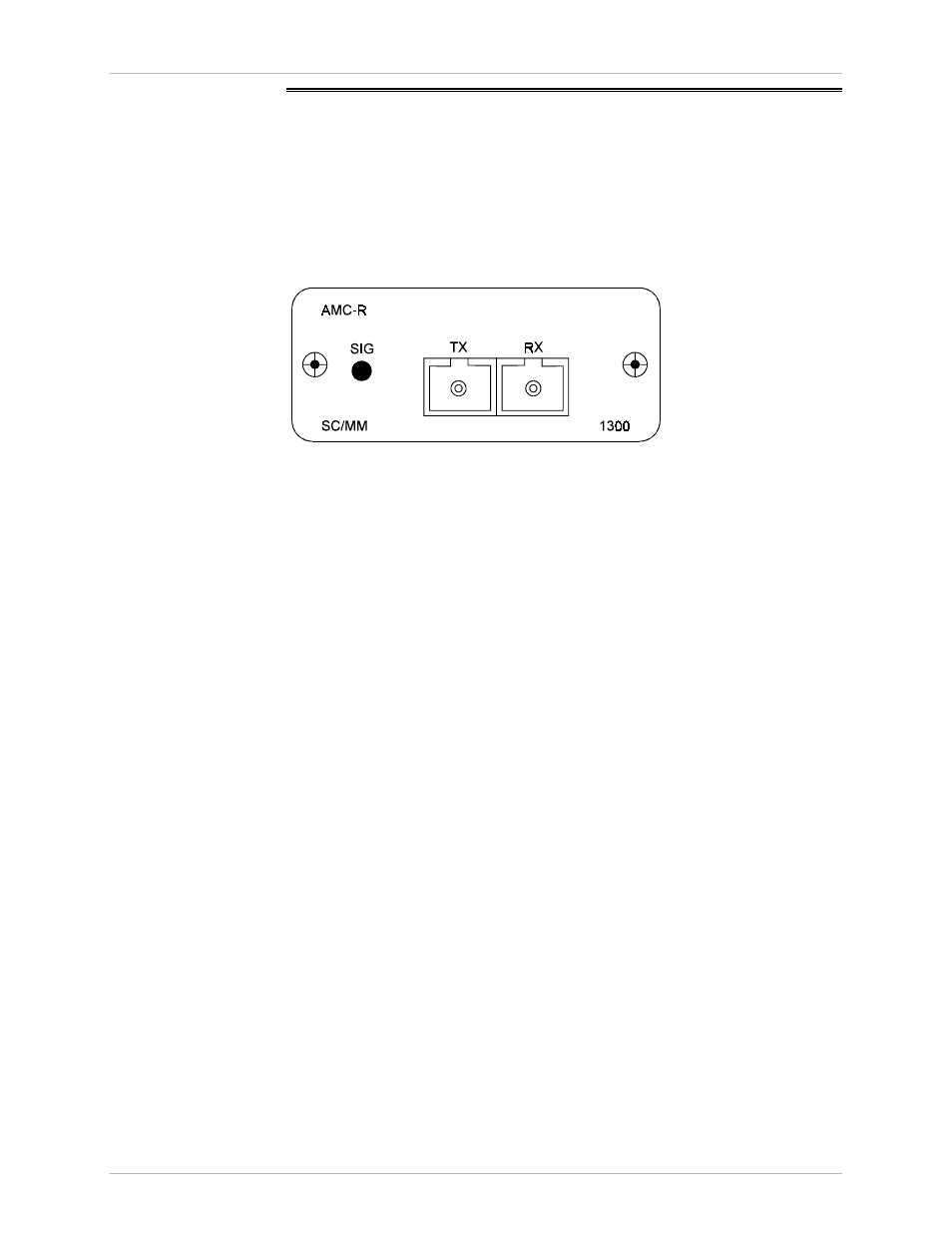

Figure 2-6 MM/SC/13/R Module Front Panel

Wavelength:

1300 nm

Connector:

Used with:

Multimode fiber

Protocols supported:

STS-3c, STM-1, STS-1, FDDI, TAXI and
Fast Ethernet

Timing mode:

Retimed

Coding method:

4B/5B, NRZ

Optical output into 62.5/125 fiber:

-18 dBm

Receiver sensitivity:

-31 dBm

Maximum input power:

-14 dBm
