AMC-101 Installation & Operation Manual
Chapter 2 - Installation & Setup
AMC-101 Modules
2-25
CX/BNC/155/R Module

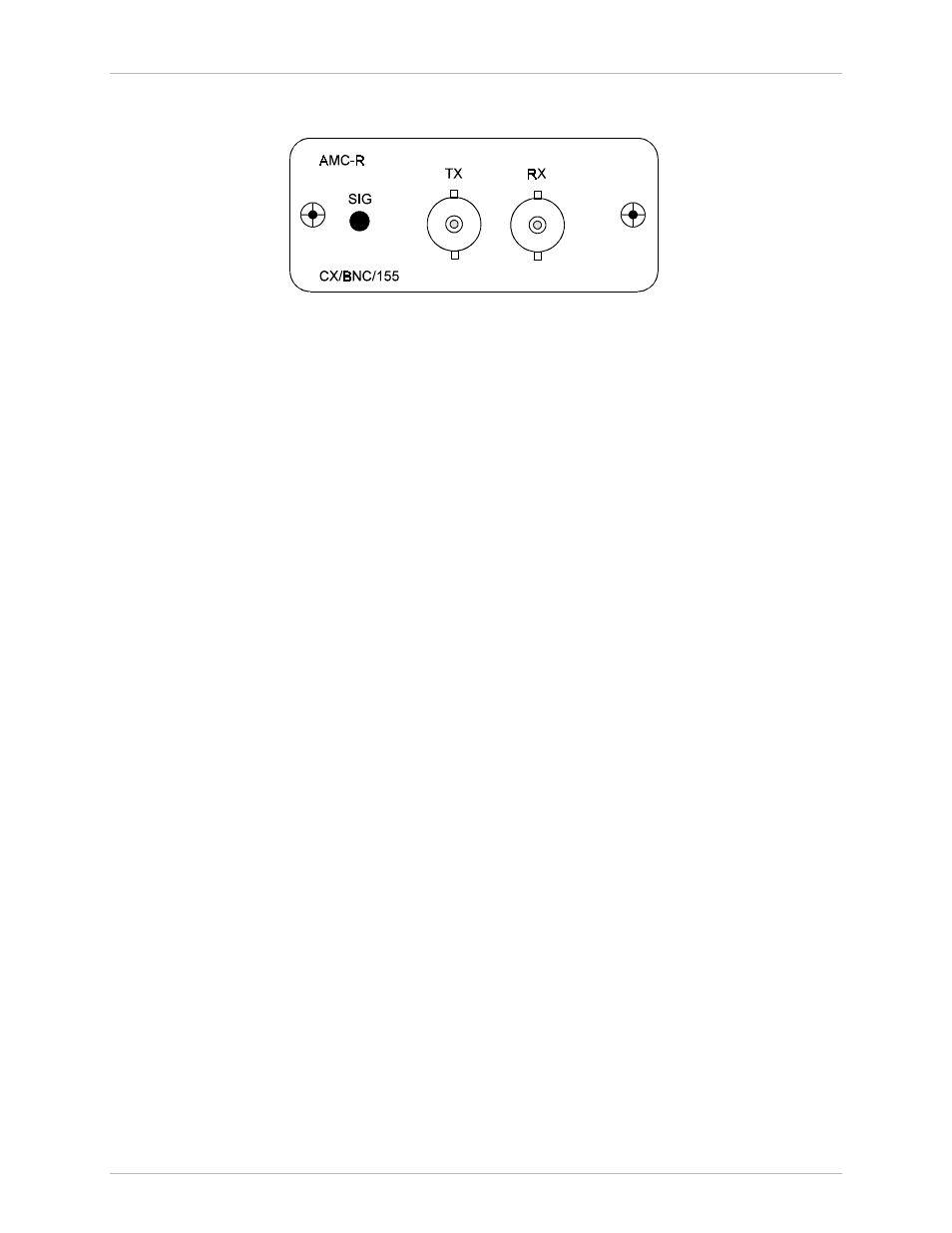

Figure 2-26 CX/BNC/155/R Module Front Panel
Connector:
BNC
Used with:
Coax cable
Protocols supported:
STS-3c, STM-1
Timing mode:
Retimed
Range calculation:
12.7 dB at 78 MHz according to
square root of frequency law
Impedance:
75
Ω
