26
Q-750d Series Installation/Operation Manual
PRE
L
IMINAR
Y
Installing the Fixed
CineWide Base Plate
(Q-750d/CineWide)
Figure 3-9 shows the anamorphic lens base plate assembly for a Q-750d/CineWide.

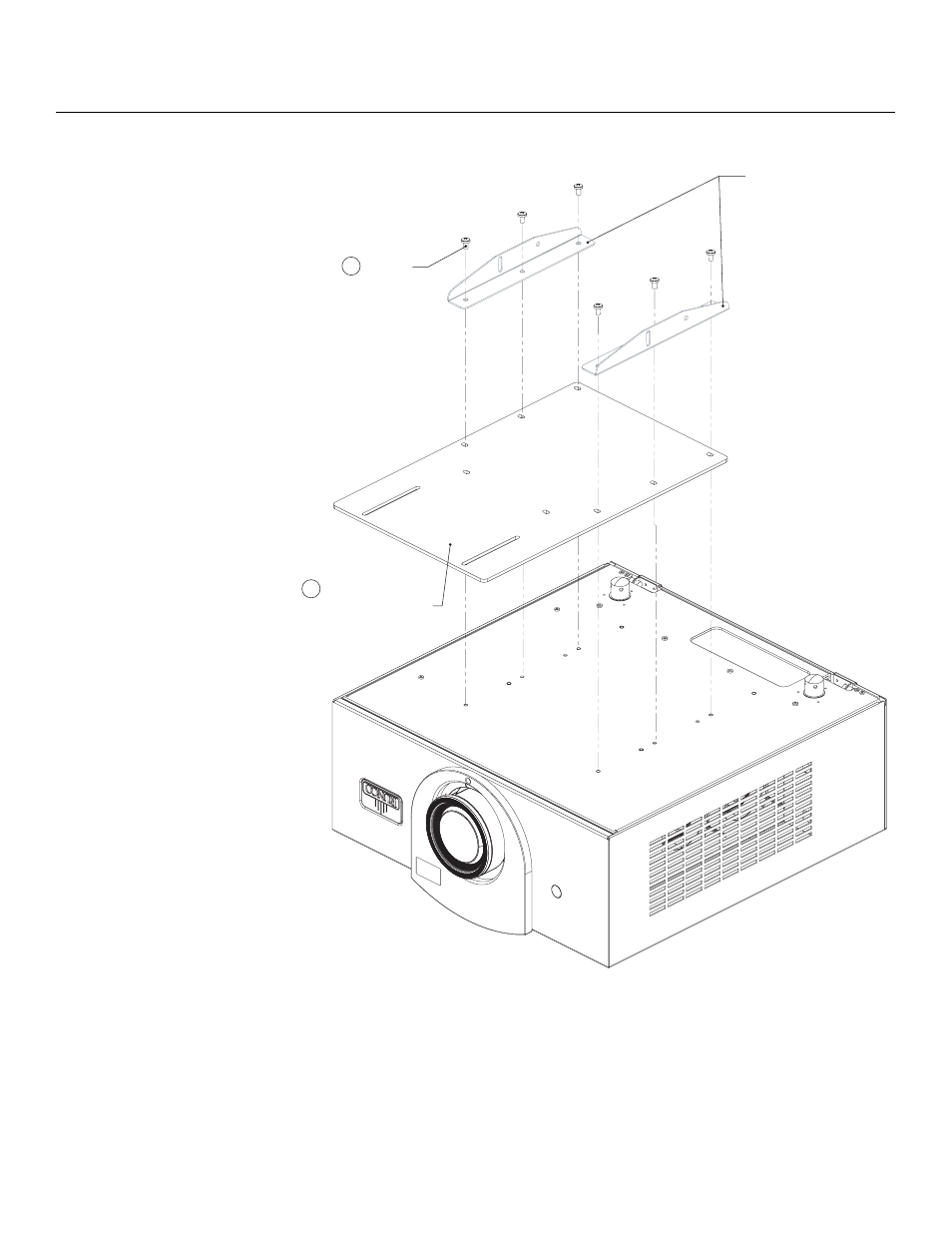

Figure 3-9. Q-750d/CineWide with Anamorphic Lens Base Plate and Ceiling
Mounting Rails - Exploded View
➤
Ceiling Mount
Rails (part of
Ceiling Mount
Kit)
Anamorphic
Lens Base Plate
Screw,
Phillips
Pan-Head,
M6 x 1.0 x
12mm (6x)
1
2
