Q-750d Series Installation/Operation Manual
PRE
L
IMINAR
Y

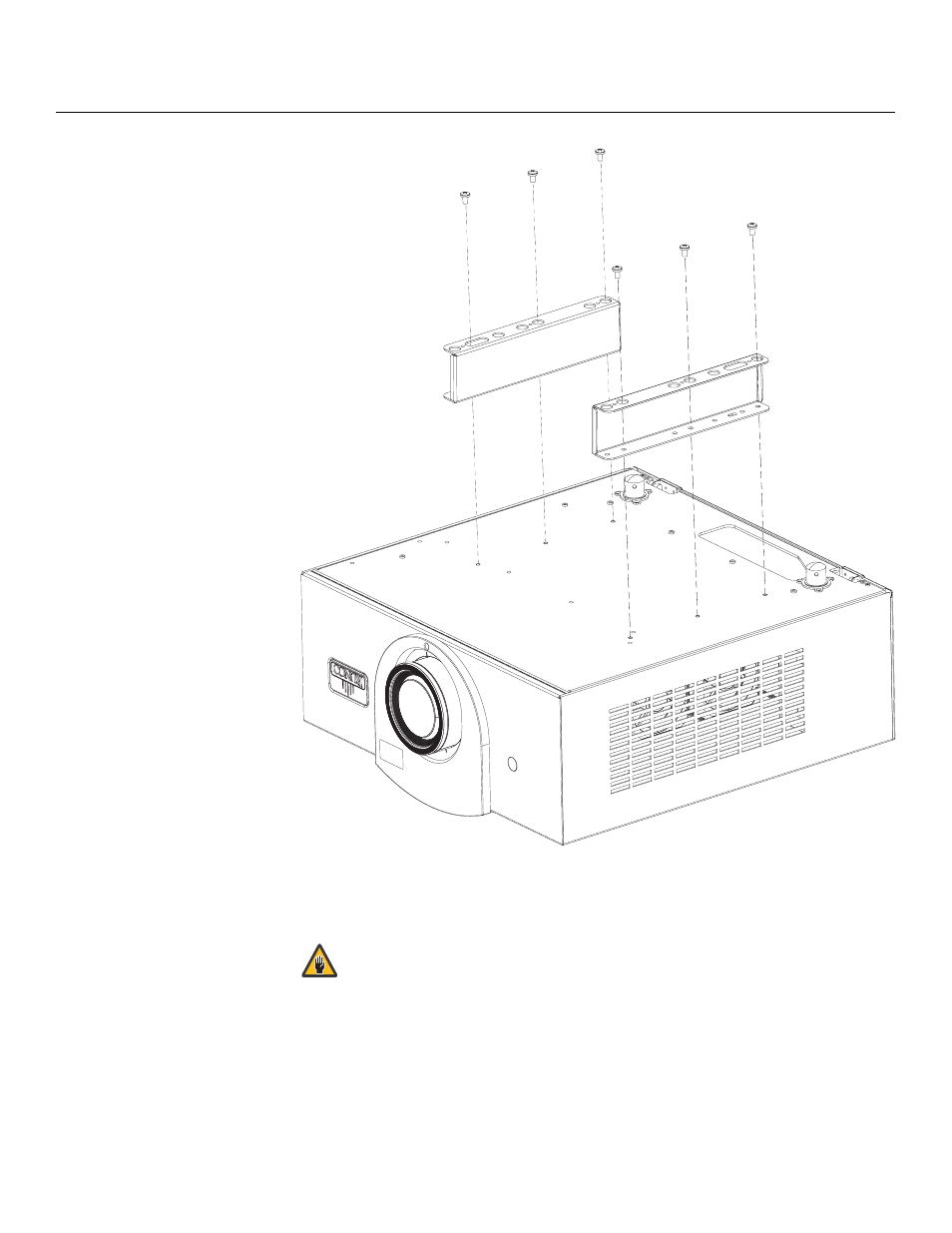

Figure 3-7. Q-750d with Ceiling Mount Adapters/Projector Stands
Install Lens Motor:
1.
Position the AutoScope Lens Motor as shown in Figure 3-8.
2.
Line up the mounting holes on the lens motor housing with those on the underside of
the projector.
DO NOT OVER-TIGHTEN THE SCREWS.
Caution
