Accessories
8.5 Air Cooling System
The sensing head can operate in ambient temperatures up to 200°C
(392°F) with the air‐cooling system. The air‐cooling system comes
with a T‐adapter including 0.8 m (7.5 in) air hose and insulation. The
T‐adapter allows the air‐cooling hose to be installed without
interrupting the connections to the box.
The air‐cooling jacket may be combined with the right angle mirror.
Air cooling (max. 35°C / 95°F)
Cable
Electronic
Housing
T-
Adapter
Air Hose
max. ambient 50°C (122°F)
Sensing Head
max. ambient 200°C (392°F)

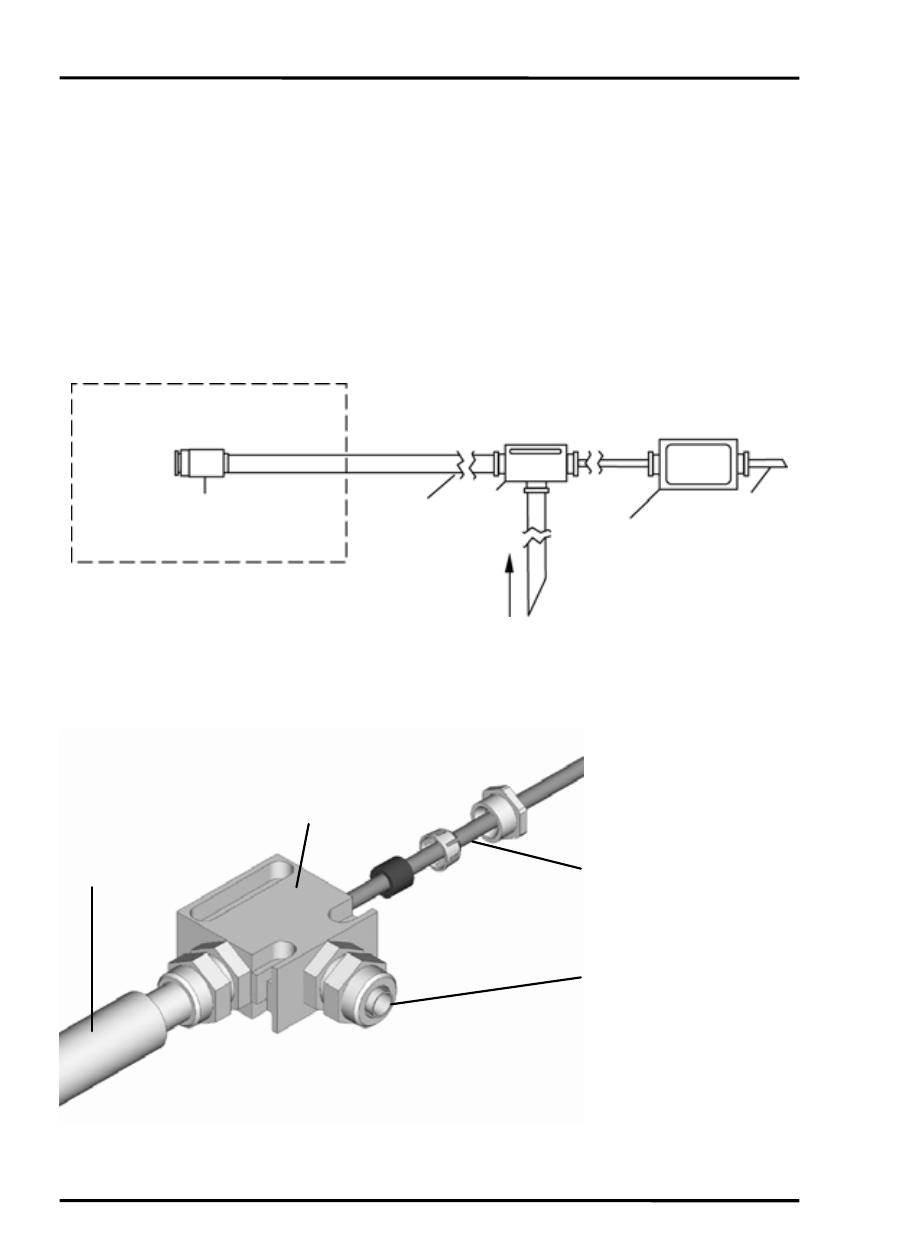

Figure 35: Air Cooling System
T-Adapter
Hose to
sensing head
Cable to electronic
housing
Fitting free for air
connection
Figure 36: Connecting the T‐Adapter (XXXMIACCJ)
