Installation
Hold: This mode acts as external generated hold function. A
transition at the input FTC3 from logical high level toward logical
low level will transfer the current temperature toward the output.
This temperature will be written to the output until a new transition
from high to low occurs at the input FTC3.
Temp
object temperature
output temperature
Trigger

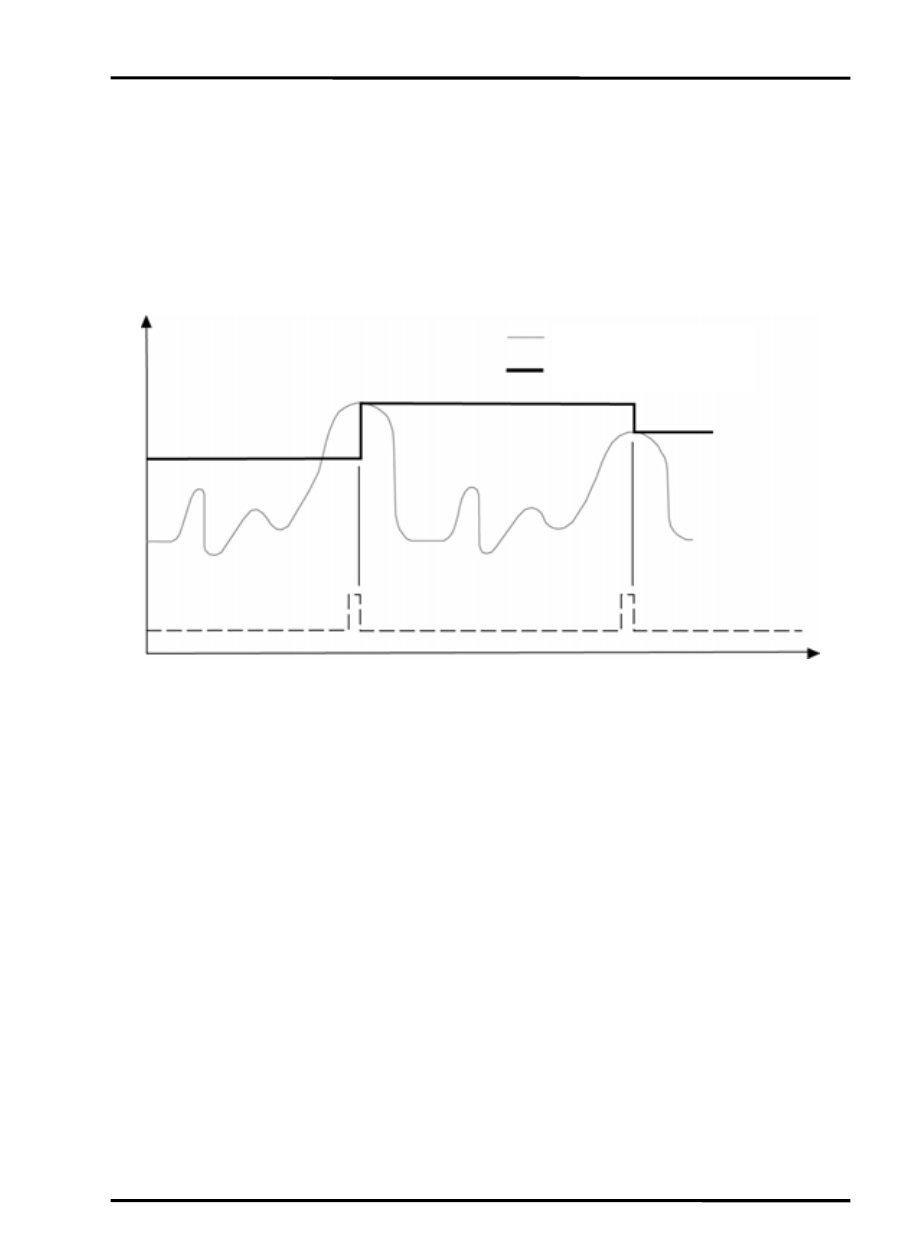

Figure 19: FTC3 for Holding the Output Temperature
Time
