Chapter 5. Block Diagram

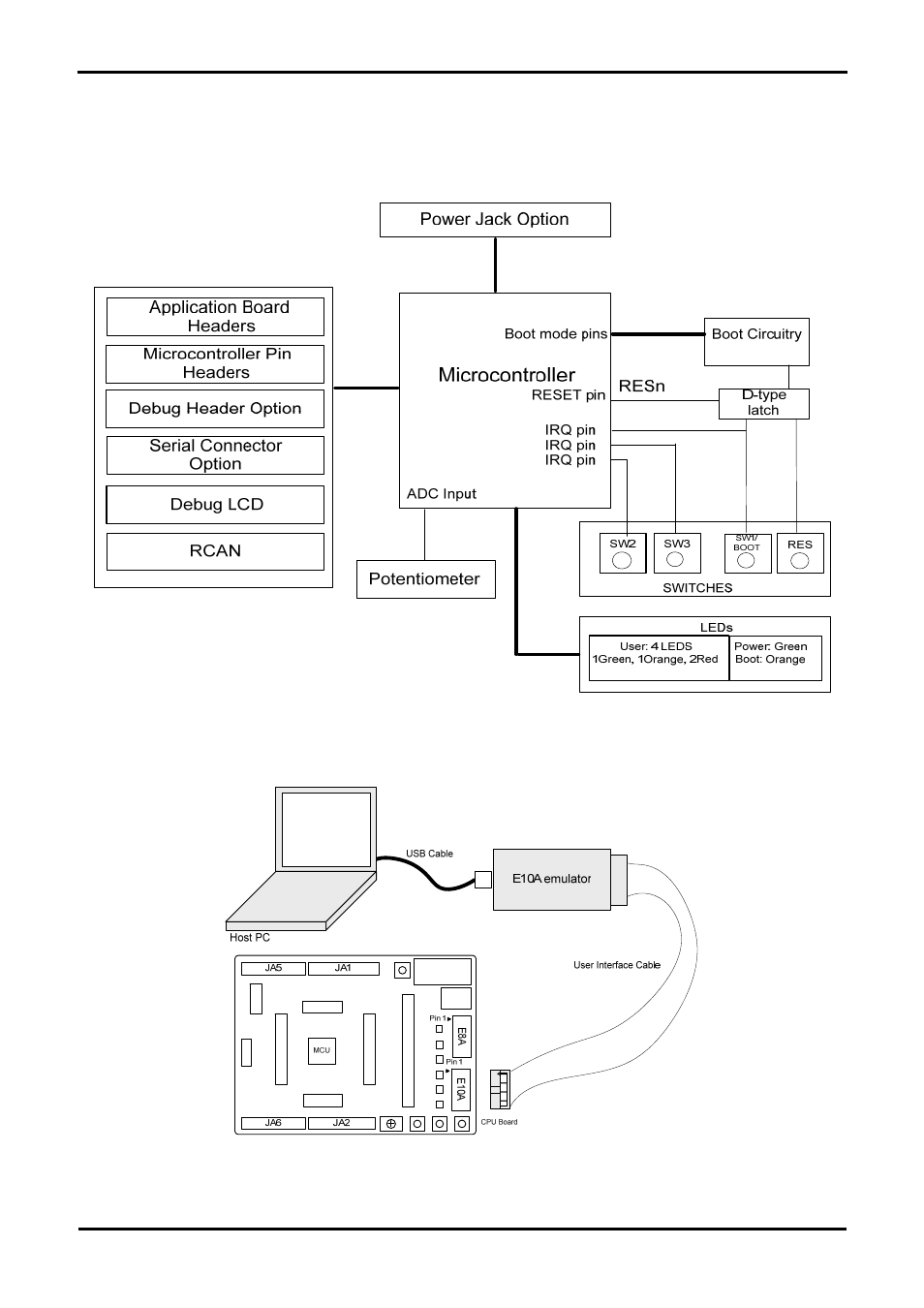

Figure 5-1 shows the CPU board components and their connectivity.
Figure 5-1: Block Diagram
Figure 5-2 shows the connections to the RSK.
Figure 5-2: RSK Connections
