31
(iii) Open the [ASID] page, remove the check mark of the [Don’t care] check box, and enter the
ASID value to be set.
When the ASID value is not set as a condition, do not remove the check mark of the [Don’t
care] check box.
(iv) Open the [Bus state] page and specify the bus type and bus cycle that are to be set.

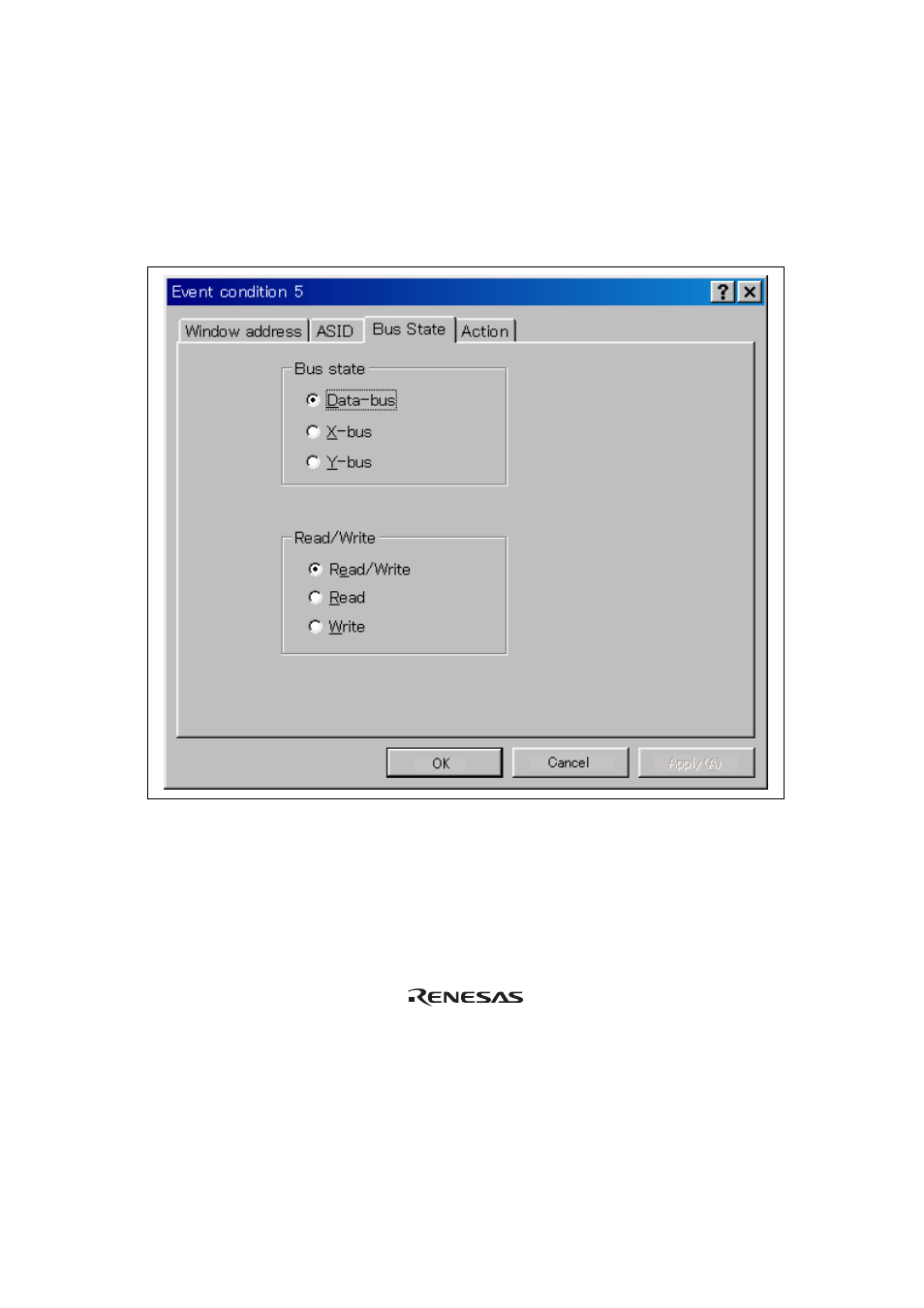

Figure 2.5 [Bus State] Page
(v) Selecting the [Acquire trace] check box in the [Action] page enables acquiring memory
access within the range.
Note: To cancel settings, select the popup menu that is opened by clicking on the Ch5 (OA) or
Ch6 (OA) column with the right-mouse button.
