30
Range Memory Access Trace Functions: The memory access within the specified range is
acquired by a trace. The read cycle, write cycle, or read/write cycle can be selected as the bus type,
ASID value, or bus cycle for trace acquisition.
[Setting Method]
(i) To open the [Event condition 5] or [Event condition 6] dialog box, double-click on the Ch5
(OA) or Ch6 (OA) column of the [Eventpoint] window.
(ii) Remove the check mark of the [Don’t care] check box in the [Window address] page and enter
the memory range to be set.

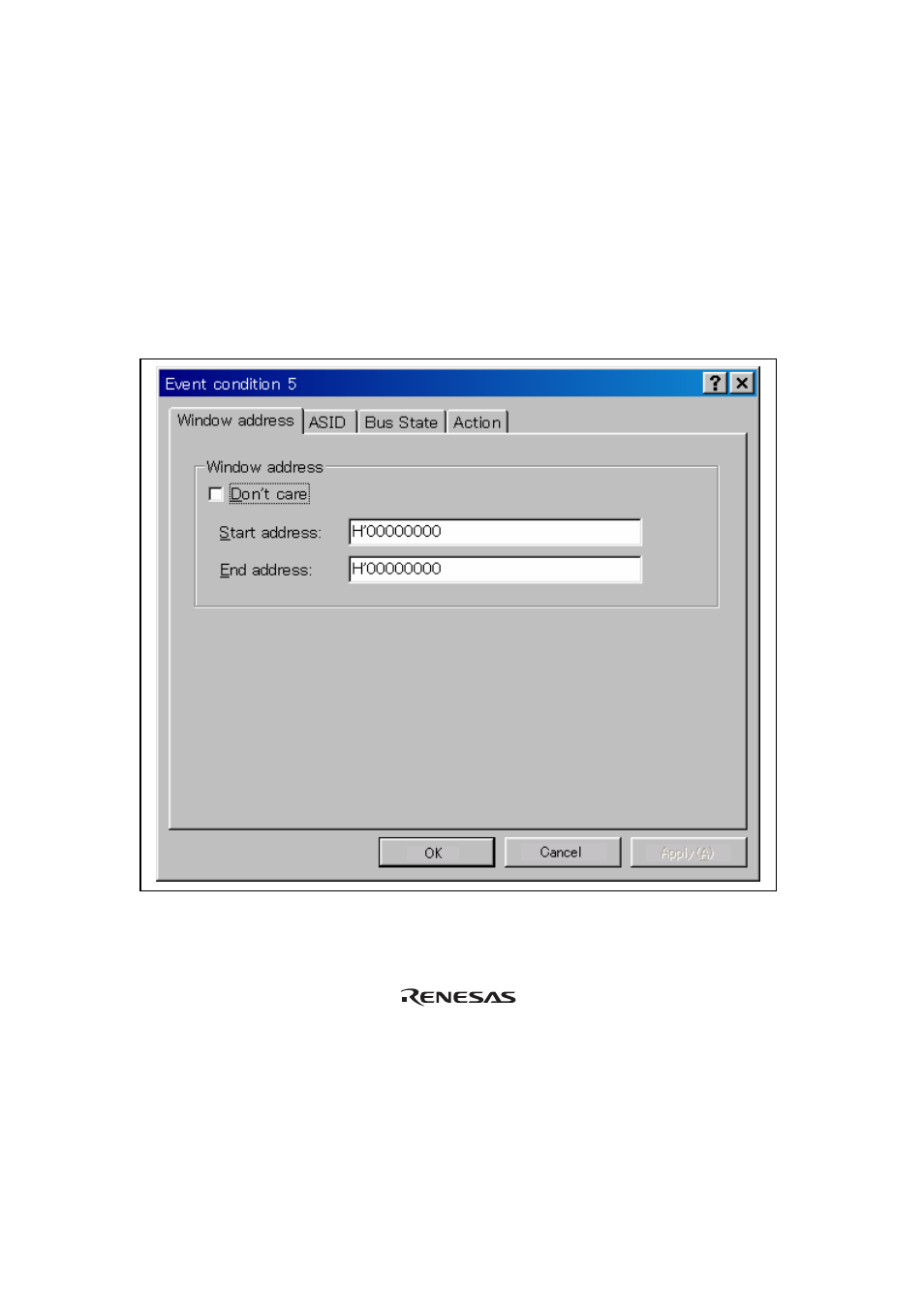

Figure 2.4 [Window address] Page
