42
Motor Specifications
The AC motor used on this saw is a capaci-
tor-start, non-reversible type. The model
covered in this manual has the following
specifications:
Specification: Model
RS10000
Rated H.P. 1.5
Max Developed H.P. 3.0
Voltage 120/240
Amperes 13/6.5
Hertz (cycles) 60
Phase single
RPM 3450
Arbor Shaft Rotation Clockwise
Run Capacitor Yes
Note: If saw does not start when switched on, imme-
diately turn saw off and refer to Troubleshooting.
Leaving the switch on will destroy the motor
Power Supply
WARNING
Saw is factory wired for 120V opera-
tion. Connect to 120V, 15-AMP branch
circuit and use 15-AMP time delay fuse
or circuit breaker. Failure to connect in
this way could result in injury from
shock or fire.
The saw must be properly grounded. Not all
outlets are properly grounded. If you are not
sure that your outlet is properly grounded,
have it checked by a qualified electrician.
WARNING
If not properly grounded, this power
tool could cause electrical shock, par-
ticularly when used in damp locations.
WARNING
If electrical shock occurs, your reac-
tion to shock could bring hands into
contact with blade.
WARNING
To avoid electric shock or fire, immedi-
ately replace worn, cut, or damaged
power cord.

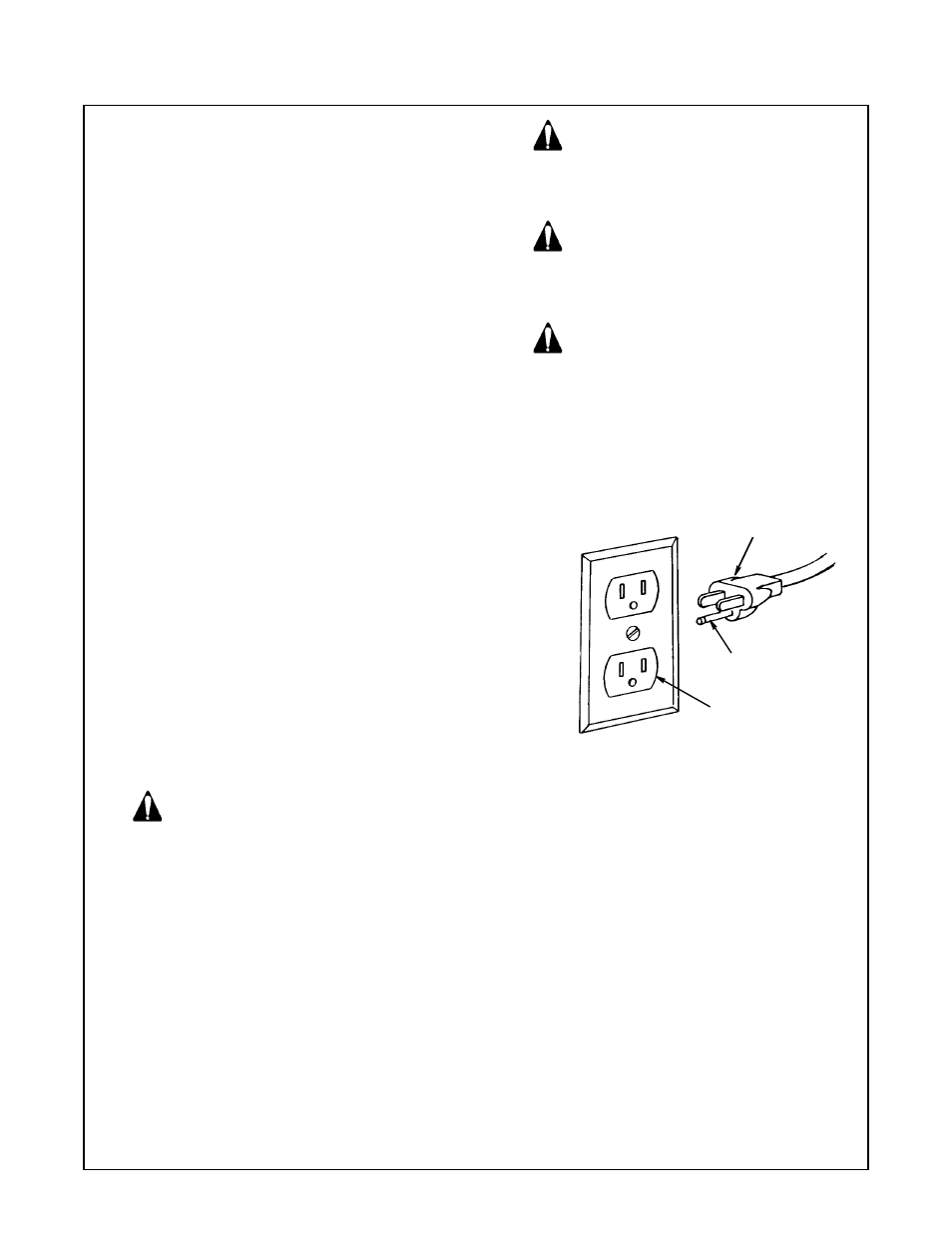

The unit is wired for 120V and has a plug
that looks like this:
The power tool is equipped with a 3-conduc-
tor cord and grounding type plug listed by
Underwriters' Laboratories. The ground con-
ductor has a green jacket and is attached to
the tool housing at one end and to the
ground prong in the attachment plug at the
other end.
The plug requires a mating 3-conductor
grounded type outlet as shown above. If you
have an outlet that is of the 2-prong type, it is
recommended that you have a qualified
electrician replace it with a properly
grounded 3-prong outlet.
3-Prong
Plug
Grounding
Prong
Properly
Grounded Outlet
Electrical Connections
