37
Controls
Control Function Operation/ Comments
Bevel Lock Lever Frees motor to rotate; locks in any
desired position Pull lever to release and push to lock
Support motor before unlocking because it
can swing down quickly
Bevel index lever must be unindexed before
moving motor
Miter/Arm Lock
Lever Frees radial arm to move; locks in
any desired position; pre-set
indexed positions at 0°, 45°L,
45°R Pull lever forward to release index
then swing arm left or right
Hold in
unlocked position while moving arm
Push lever to rear to lock arm
On-Off Switch Turns motor on/off Pull on, push off
Requires yellow key
Yellow Key Allows saw to be switched on Insert into on-off switch
Remove after turning saw off
Bevel Index Lever Indexes the saw blade to 0°, 45°,
or 90° pre-set index positions then
release it Move bevel index lever to the left
while positioning the blade, then
release it
Rip Scale & Rip
Indicators Tells approximate distance
between blade and fence when
saw is in in-rip or out-rip position
Move blade carriage along arm to
align line on indicator with desired
number on scale

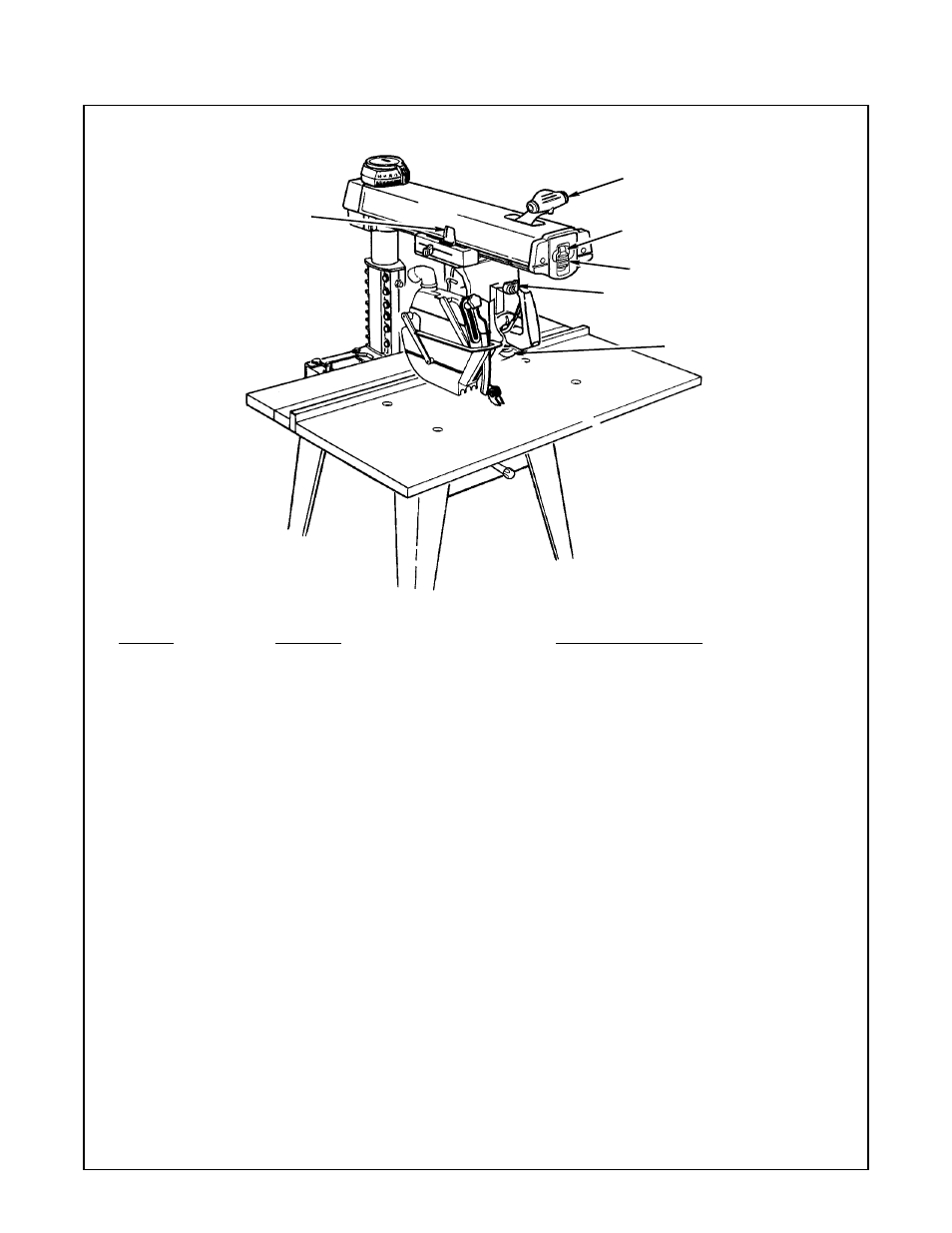

Bevel Index Lever
Miter/Arm Lock Lever
On-Off Switch
Yellow Key
Bevel Lock Lever
Rip Scale &
Rip Indicator
(Out-Rip)
