31
Square Blade to Table for Crosscutting
The goal of this adjustment is to make the
blade square to the table so that crosscuts
will be accurate; otherwise all crosscuts will
have a slight bevel angle.
1. Lower blade until it just clears front table.
Lock miter arm lock lever in the 0° miter
position. Tighten yoke lock handle, carriage
lock knob and bevel lock lever.

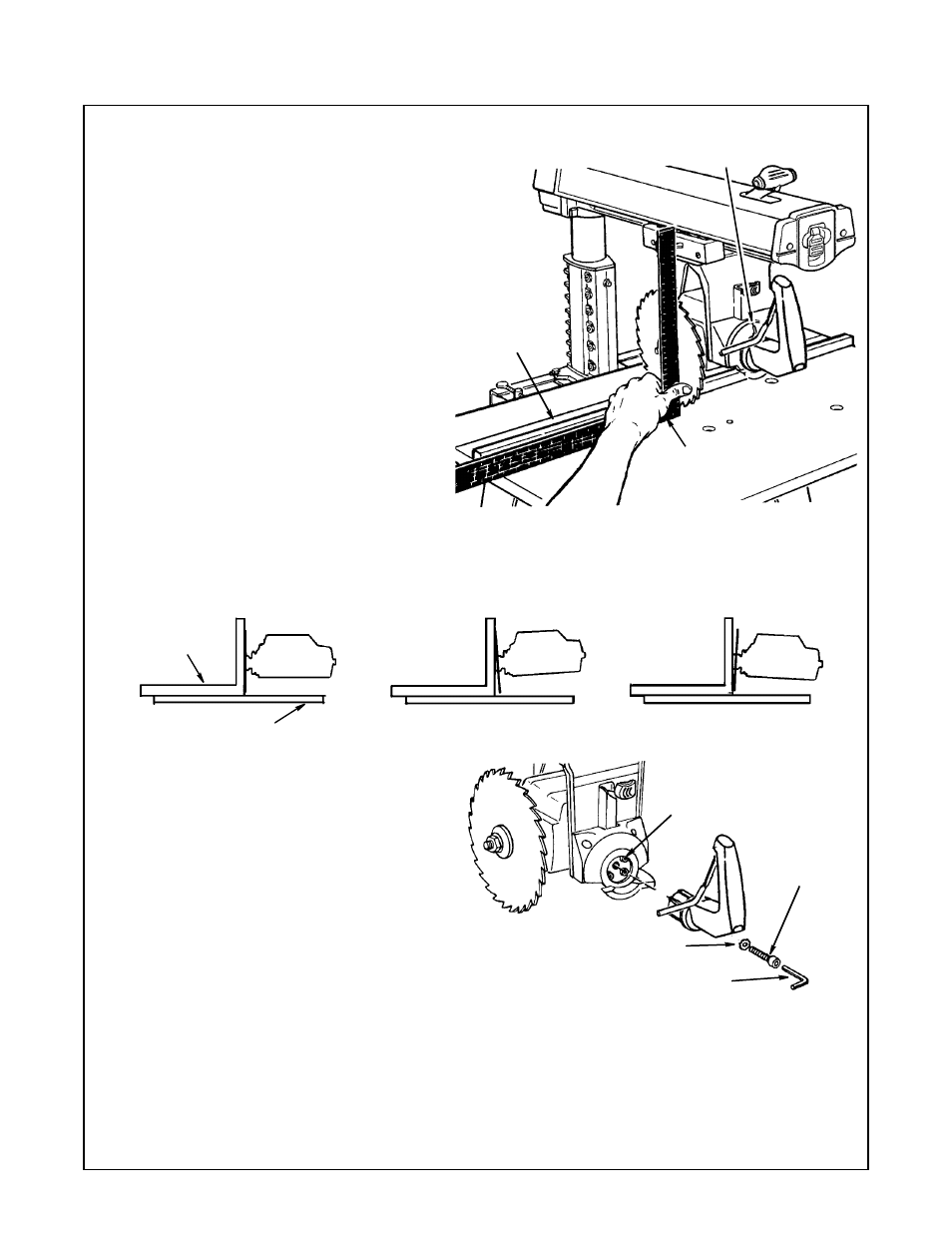

2. Place a framing square on the table with
the short leg against the saw blade and long
leg parallel to fence. Do not allow the square
to rest against a "set-out" tooth; it must rest
flat against the blade side.
3. If the saw blade is square with the table
top (no visible gap appears between the saw
blade and square) no adjustment is required.
Set bevel indicator to 0° reading. If the
square does not touch the saw blade as
shown (with square leg held firmly against
the table top), perform the following adjust-
ments:
a. Remove handle by removing 5/16-18
socket head screw and lockwasher.
b. Slightly loosen the four socket head
screws with 1/4" Hex "L” Wrench. Rotate
motor while holding square firmly against
saw blade and table top.
c. Slightly tighten each of the four screws
and recheck ... Now tighten each screw
tight.
d. Reinstall handle and adjust indicator to
0° reading.
e. Loosen carriage lock knob.
Bevel
Indicator
Rip
Fence
Square
(Place parallel
to fence)
Square
Correct Wrong Wrong
Loosen these
four screws
5/16-18 Socket
Head Screw
5/16" Lockwasher
1/4" Hex “L” Wrench
(Supplied)
Alignment
