This concludes adjusting your saw where you have removed all "looseness" or slack between the
different parts of the saw. The next section deals with actually aligning the sawblade to get accu-
rate cuts.

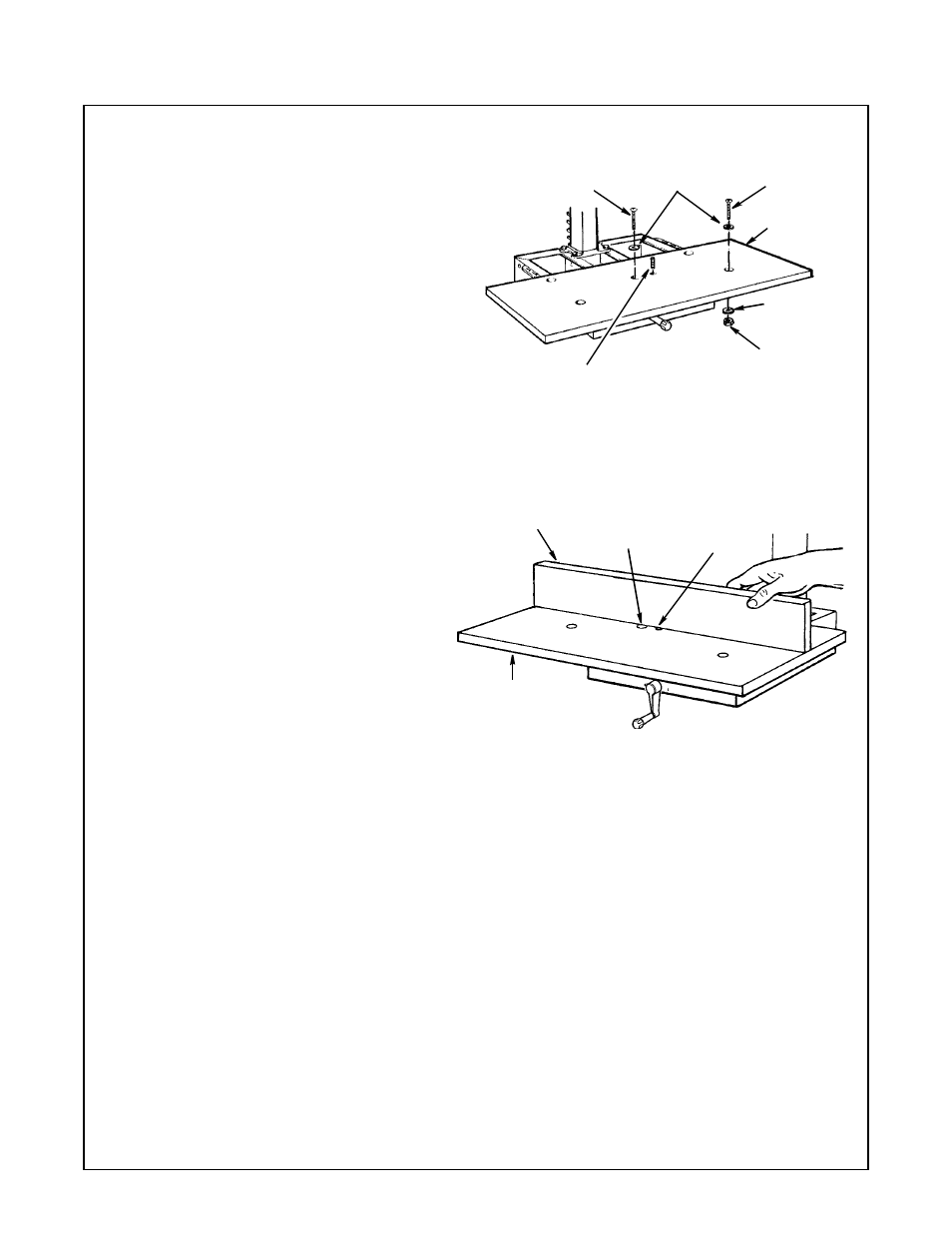

5. Drop a flat washer into each counter-
bored hole.
6. Start 1-3/4" long pan head screw through
center hole and into U-clip, but do not fully
tighten.
7. Start cup point set screw through leveling
hole and into tee nut, but do not fully tighten.
8. Put 1" long pan head screw in each of
four remaining holes and through matching
holes in table supports. Place lockwasher
and nut on the end of each screw, and
tighten with screwdriver.
Make Front Table Flat
1. Place rear table on its edge, across cen-
ter of front table. Check for gap between sur-
faces.
If there is a gap, close gap by raising or low-
ering center of front table:
to raise center, tighten cup point set screw
against frame;
to lower center, tighten center (1-3/4" long)
pan head screw.
2. When gap is closed, make sure cup point
set screw touches frame (look underneath
table), and center (1-3/4" long) pan head
screw is tightened.
1/4-20 x 1-3/4"
Pan Head Screw
17/64"
Flat Washer
1/4-20 x 1"
Pan Head Screw
Front Table
Lockwasher
Hex Nut
1/4-20 x 1"
Cup Point Set Screw
Rear Table
Board
Hold Down
Screw
Leveling
Set Screw
Front Table
Adjustments
