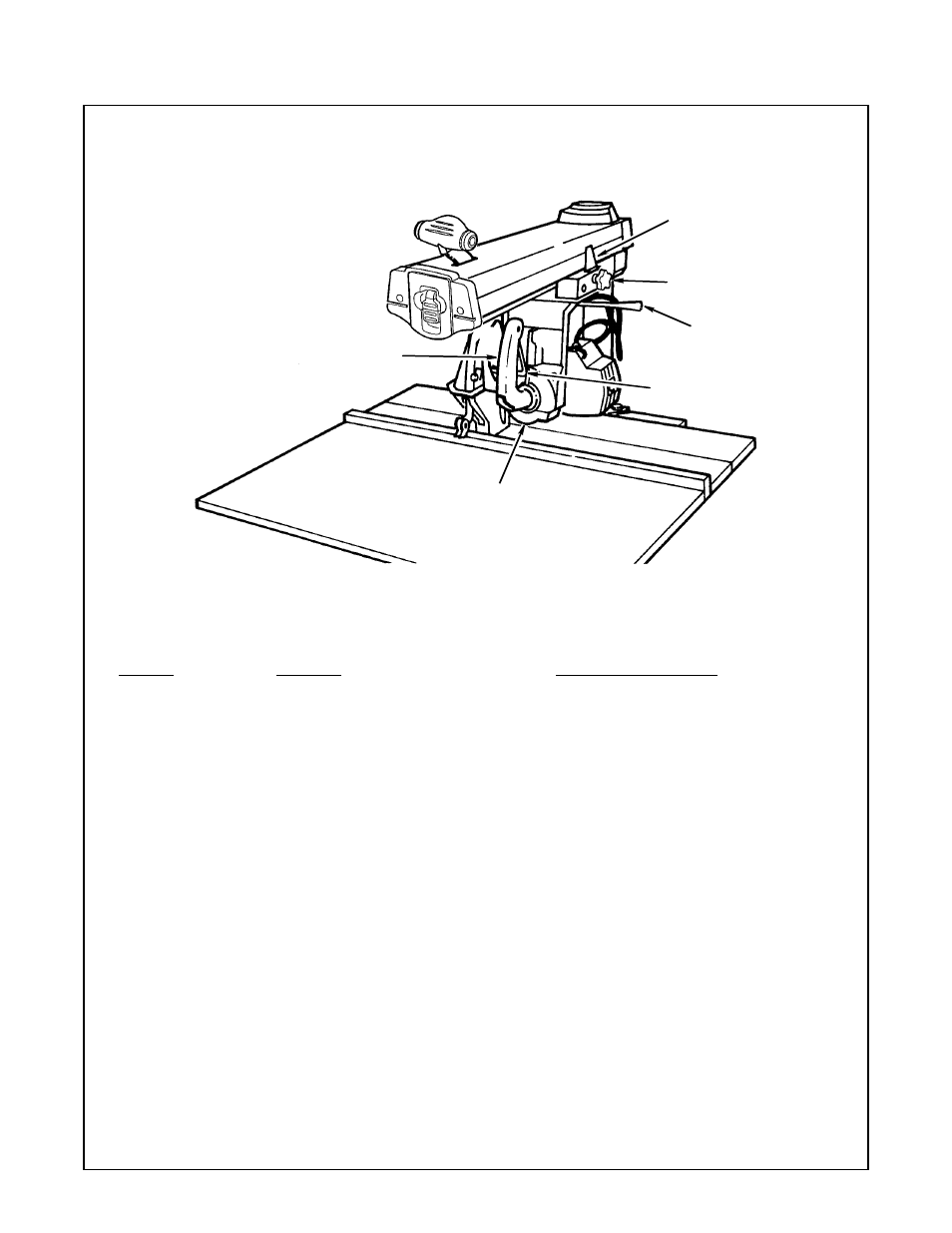

Rip Scale &
Rip Indicator
Carriage Lock
Yoke Lock
Handle
Bevel Lock Lever
Saw Handle
(In-Rip)
Knob
Trigger Guard
Control Function Operation/Comments
Yoke Lock Handle Locks yoke in rip or crosscut posi-
tion
Pull handle forward to release;
push handle reward to tighten
Yoke index lever must be unindexed before
rotating yoke
Carriage Lock
Knob Locks carriage to radial arm for
ripping
Rotate counterclockwise to release
carriage; turn clockwise to lock car-
riage in position
Always Lock before ripping
Saw Handle Provides grasping surface so car-
riage can be moved. Contains trig-
ger mechanism to raise clear
plastic guard when making a
crosscut
Grasp to move blade carriage
Squeeze trigger to fully raise clear plastic
guard. Clear guard must be raised over fence
to crosscut
Controls
