16
CinemaWall Installation/Operation Manual
PRE
L
IMINAR
Y
3.4
Connections to the
CinemaWall
Proceed as follows to connect the CinemaWall to your video sources, external controller(s)
– if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables (sold separately) for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connecting Source
Components to the
CinemaWall
Connect your video sources to the CinemaWall as shown and described in the sections
that follow.
HDMI Connections: The CinemaWall has four (4) HDMI video inputs for connecting a
BD/DVD player, DTV decoder or any other device with a DVI or HDMI output. Connect
such devices as shown in Figure 3-2.

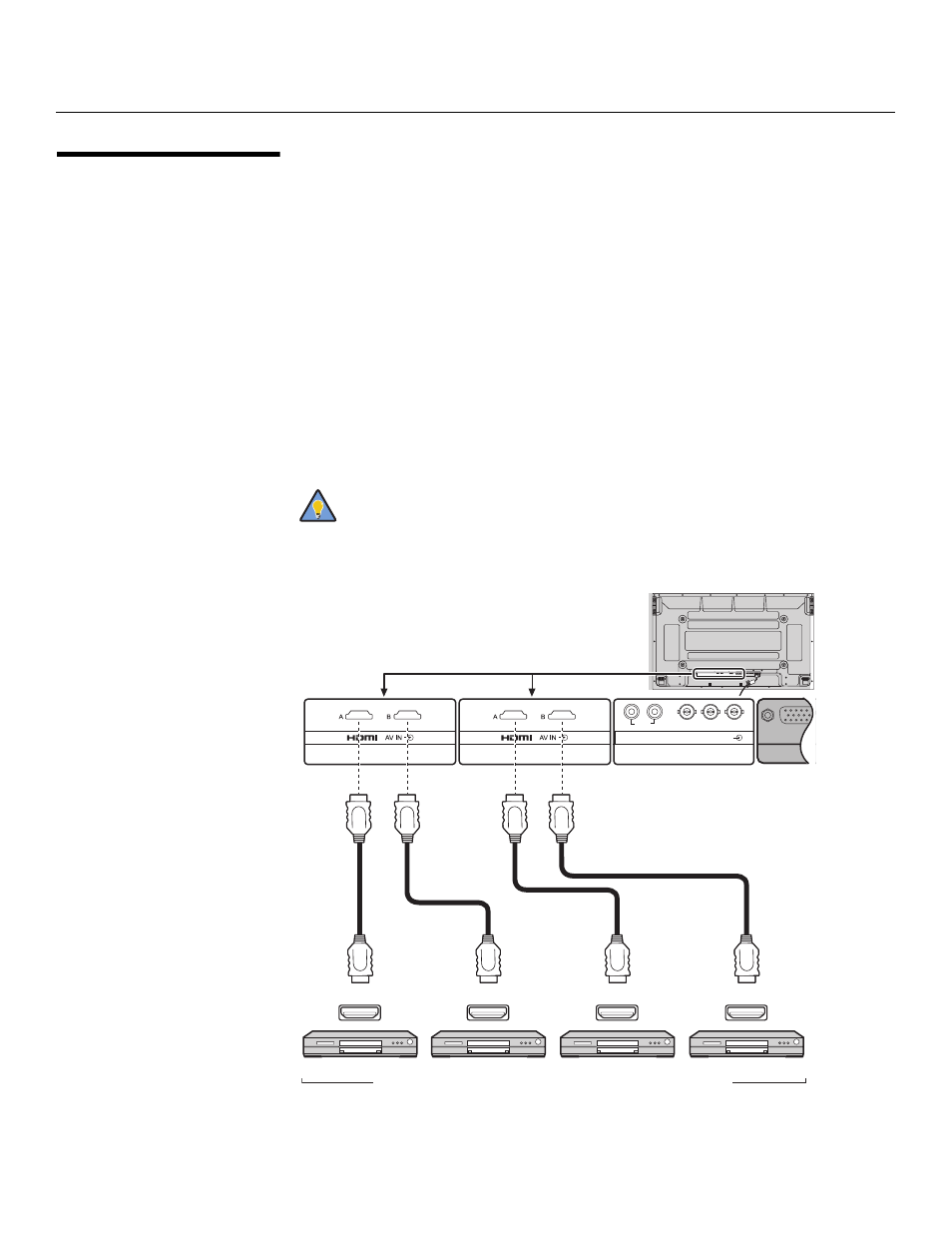

Figure 3-2. HDMI Source Connections
➤
Use the HDMI inputs whenever possible. This ensures the highest
video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the display.
Tip
PC
SLOT1
SLOT2
SLOT3
P
R
/C
R
/R P
B
/C
B
/B
Y/G
AUDIO
R
L
COMPONENT/RGB IN
HDMI
AV OUT
HDMI
AV OUT
HDMI
AV OUT
HDMI sources (BD, DVD, DTV Set-Top Box etc.)
HDMI
AV OUT
