Chapter 3
Installation
RuggedBackbone™ RX1510
Installation Guide
22
WAN Ports: RJ45
Section 3.5
WAN Ports: RJ45
The RX1510 supports T1/E1 WAN ports, to interface to standard T1 or E1 telecommunication infrastructure.
Carefully note the orientation of the RJ45 receptacle when inserting or removing cabling. See the illustration and
table below for pin configuration and assignment.

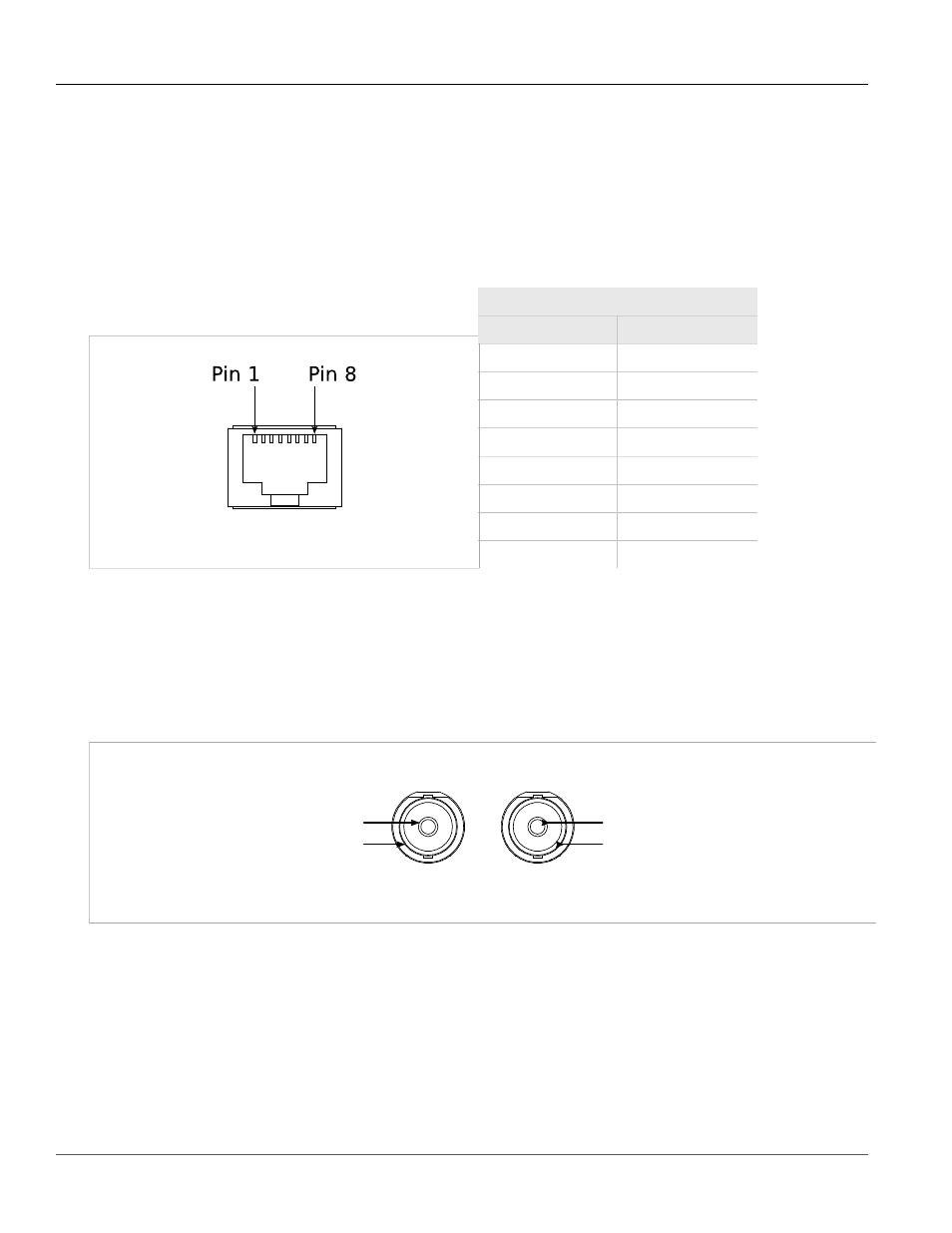

Figure 47: RJ45 T1/E1 Pin Configuration
Table 3: RJ45 T1/E1 Pin Assignment
T1/E1 pinout
Pin
Description
1
RRING
2
RTIP
3
NC
4
TRING
5
TTIP
6
NC
7
NC
8
NC
Section 3.6
WAN Ports: BNC
The RX1510 supports optional E1 WAN ports with BNC connectors. The Tx and Rx connections are labelled on
the line module. See the illustration below for the connection configuration.
Rx
Tx
Chassis
RTIP
Chassis
TTIP
Figure 48: RJ45 T1/E1 Pin Configuration
Section 3.7
Copper Ethernet Ports
The RuggedBackbone™ RX1510 can be ordered with up to 10/100Base-TX ports that allow connection to
standard CAT-5 UTP cable with RJ45 male connectors. All copper Ethernet ports feature auto-negotiation, auto-
polarity, and auto-crossover functions. The female RJ45 connector can accept and take advantage of screened
(commonly known as “shielded”) cabling.
