Connectors for 24, 24P, 48, and 48P Power Modules
Section 3.2.2
Connectors for 24, 24P, 48, and 48P Power Modules

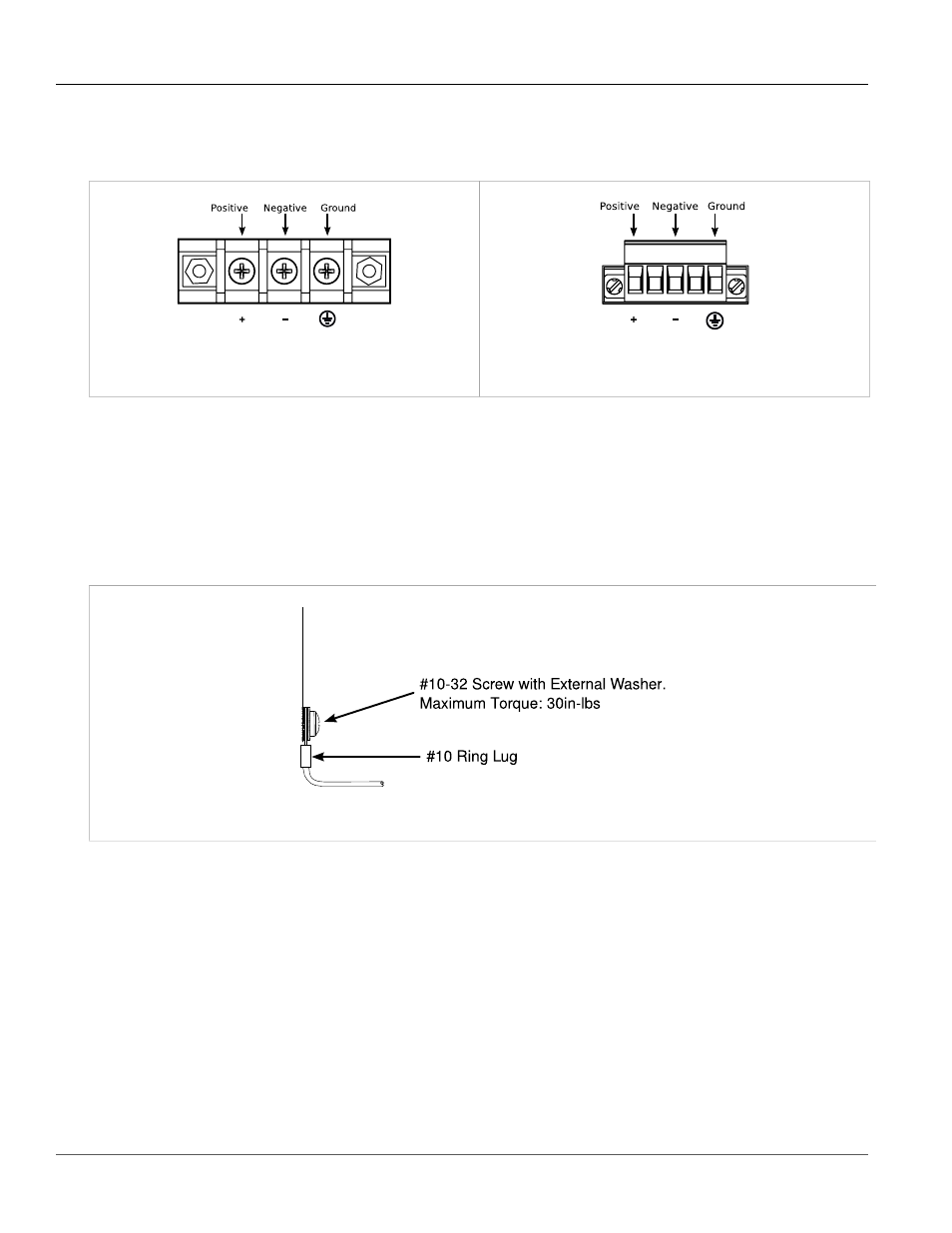

Figure 39: Screw Terminal Power
Connector for 24 and 48 Power Modules
Figure 40: Pluggable Phoenix Power
Connector for 24P and 48P Power Modules
Section 3.2.3
Chassis Ground Connection
The RX1510 chassis ground connection, shown in
Figure 41, “Chassis Ground Connection”
screw. It is recommended to terminate the ground connection in a #10 ring lug. Torque on the chassis ground
connection should not exceed 30 in-lbs (3.4 Nm).
Figure 41: Chassis Ground Connection
