RuggedBackbone™ RX1510
Installation Guide
Chapter 3
Installation
Power Supply Wiring and Grounding 17
Section 3.2
Power Supply Wiring and Grounding
The RX1510 supports dual redundant power supplies, power module 1 (PM1) and power module 2 (PM2). Power
connections are located on the PM1 and PM2 module face plates. An optional chassis ground connection is
located on the front panel as shown in Figure 2, “Front View” .
RX1510 products can be equipped with either a Phillips Screw Terminal Block or a Phoenix Plug Terminal
Block. The Phillips Screw Terminal Block has Phillips screws with compression plates, allowing either bare wire
connections or crimped terminal lugs. We recommend the use of #6 size ring lugs to ensure secure, reliable
connections under severe shock or vibration. Both terminal blocks have a safety cover, secured with two Phillips
screws, which must be removed to make connections. The safety cover must be re-attached after wiring to
ensure personnel safety.
For AC and DC power supply wiring examples, refer to
Section 3.2.4, “AC Power Supply Wiring ” Section 3.2.5,
“DC Power Supply Wiring Examples” , and Section 3.2.6, “AC and DC Power Supply Wiring Example” .
WARNING!
The RX1510 has two (2) power supplies installed and may be supplied from multiple power sources.
Service personnel must isolate all power supplies prior to servicing.
Section 3.2.1
Connectors for HI and HIP Power Modules

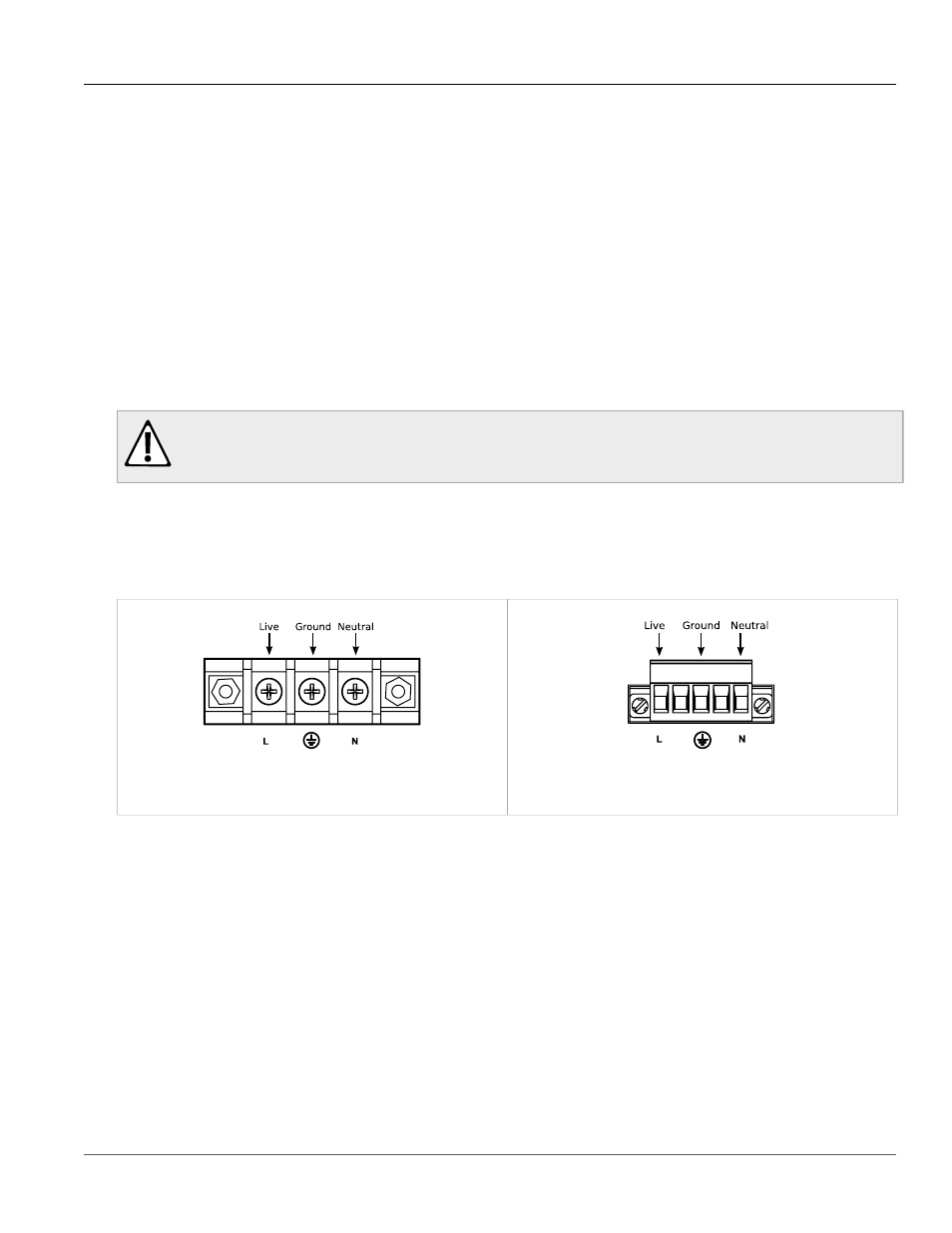

Figure 37: Screw Terminal Power
Connector for HI Power Module
Figure 38: Pluggable Phoenix Power
Connector for HIP Power Module
