RuggedBackbone™ RX1510
Installation Guide
Chapter 2
RuggedBackbone™ Modules
Installing a Module
5
RuggedBackbone™ Modules
The RX1510 chassis provides six module slots. Each slot accommodates a particular type of RuggedCom
Figure 1, “Chassis Slot Assignment”
shows the module slots on the RX1510.

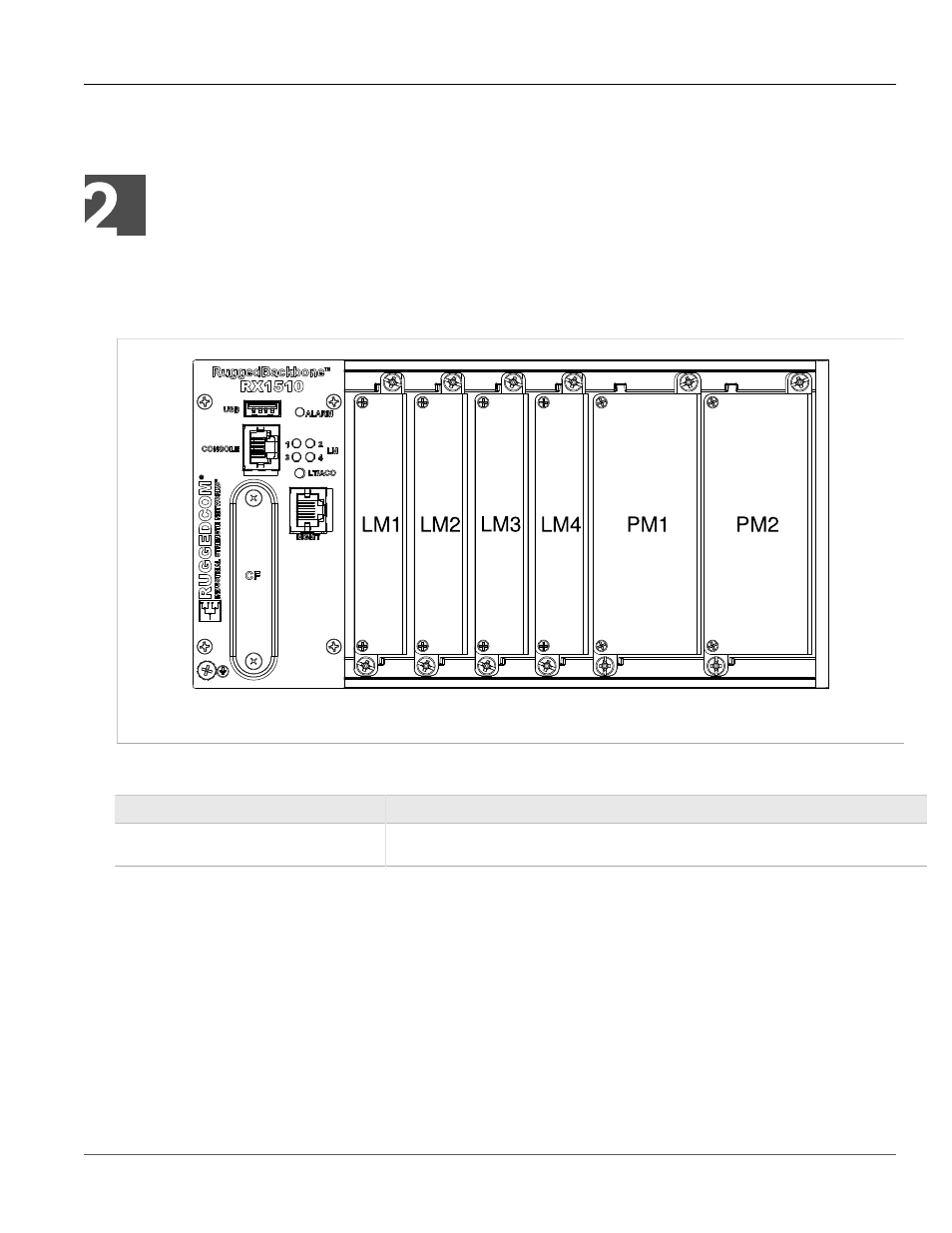

Figure 1: Chassis Slot Assignment
The RX1510 chassis supports the following modules:
Parameter
Description
LM1 through LM4
The RX1510 chassis supports up to four line module (LM) cards. For more information on line
Section 2.3, “Line Modules (LM)”
All modules are built to the RuggedRated™ specifications of the RuggedBackbone™ RX1510. Each module type
is described in the following sections.
Section 2.1
Installing a Module
To install a module into the RuggedBackbone™ chassis, align the module guide ribs with the channels on
the chassis. Push the module in as far as it will go, being sure to push through the resistance provided by the
grounding springs. When properly seated, the module flange will rest on the main chassis frame. Tighten the
thumbscrews using finger strength only.
