17
Setting Up the Kit
Overview
Using the provided cables, connect the pads, cymbals, hi-hat, and kick trigger pad.
* When mounting a TD-12 on an MDS-12 drum stand, use the built-in connection cables.

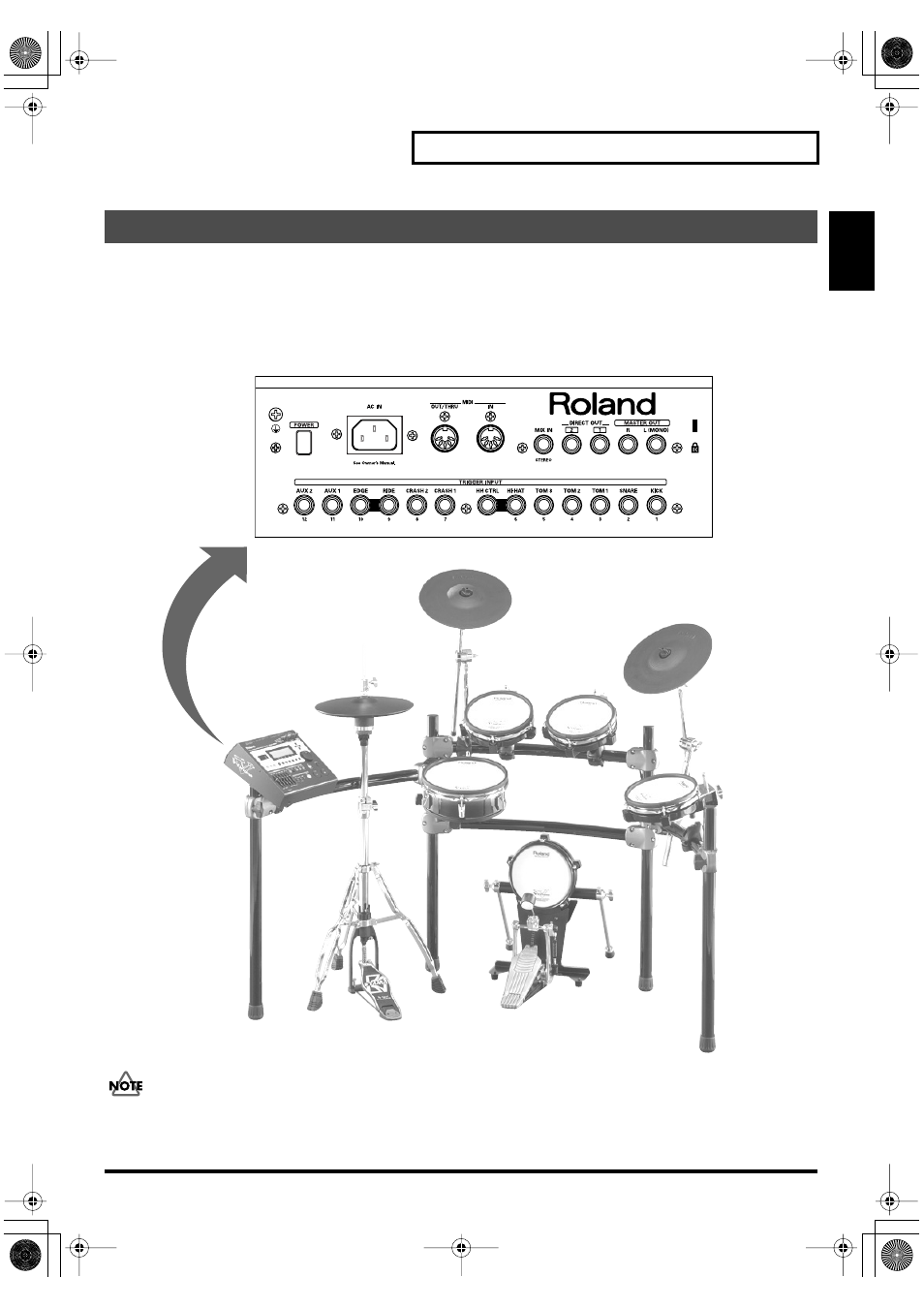

Set Up Example
fig.Kit.e
The HI-HAT and RIDE cymbal use two cables each. See p. 20 and p. 52.
Connecting the Pads and Pedals
3 / TOM 1 4 / TOM 2
PD-85
PD-85
5 / TOM 3
PD-85
9 / RIDE (BOW/BELL)
10 / EDGE (BOW/EDGE)
CY-12R/C
7 / CRASH 1 (BOW/EDGE)
CY-12R/C
1 / KICK
KD-85
2 / SNARE
PD-105
TD-12
6 / HI-HAT (TRIGGER OUT)
HH CTRL (CTRL OUT)
VH-11
TD-12 Rear Panel
