Renesas TM V.3.20A - Manual (Page 37)

37
3.3 Building a Project
The Project Editor is an editor. Therefore, if the project has been changed, it must be saved before building. To save a
project, press the [Save] button on the Project Editor.

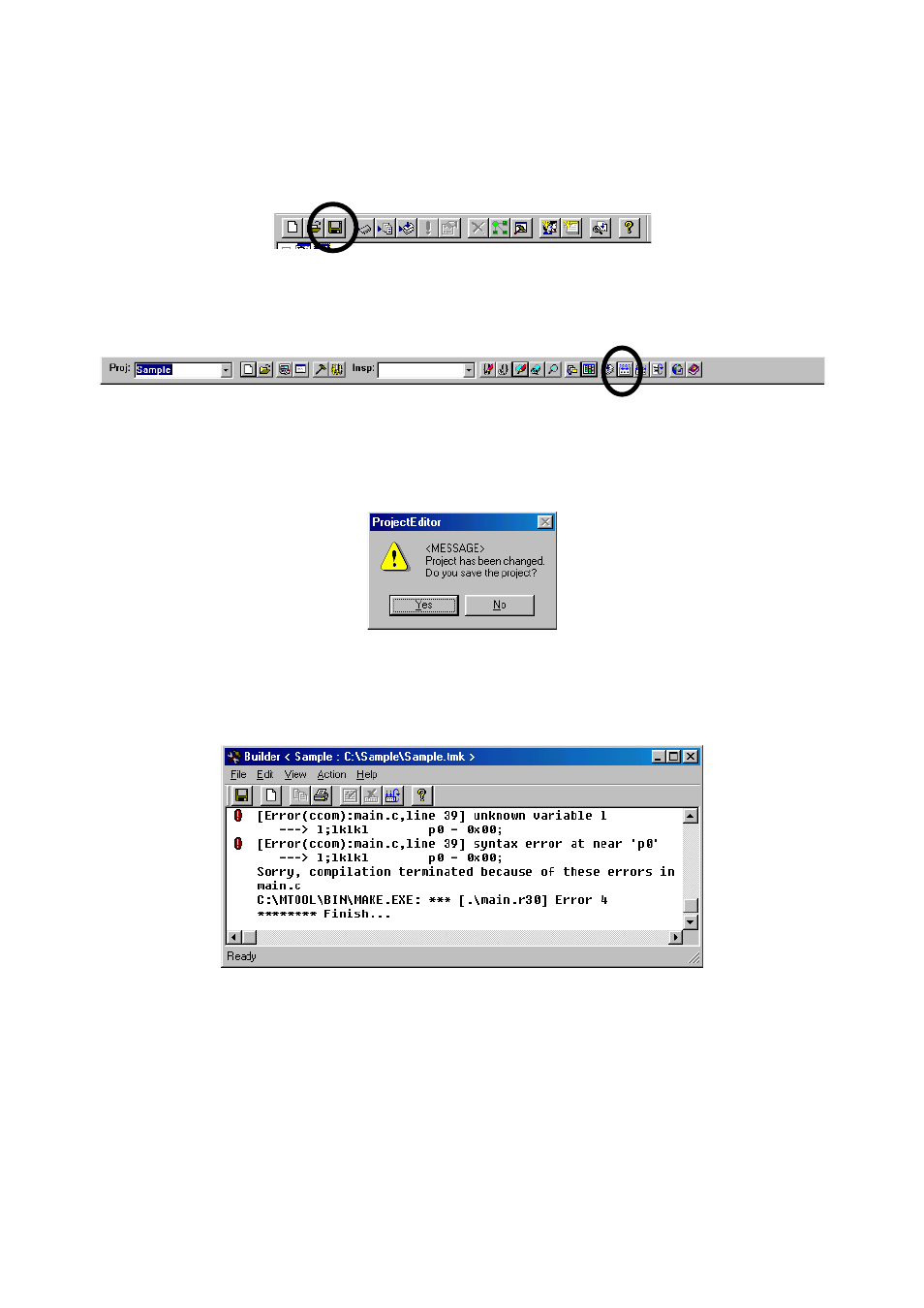

Fig. 3-23 Save Button
Next, press the [Build] button on the Project Bar.
Fig. 3-24 Build Button
This invokes the Builder, and the Builder starts building the project. If you attempted to build a project without
saving it, the Project Editor prompts you to save.
Fig. 3-25 Dialog Box for Confirmation to Save
The Builder starts up, compiling, assembling, and linking the source files. If an error occurs while compiling, for
example, double-click the location in error, and the editor starts up, showing the relevant location.
Fig. 3-26 Error Display during Build Execution
