Fig. 3-17 option setup dialog box – Renesas TM V.3.20A User Manual

Page 34

Definitions of the following are entered by default for each option, respectively:

Compiler (nc30)

CFLAGS

Assembler (as30)

AFLAGS

Linker (ln30)

LFLAGS

Load module converter (lmc30)

LMCFLAGS

“CFLAGS” is a makefile macro, which defines the options used when compiling a program. Choose “CFLAGS” and

press the [Mod] button, and the dialog box shown below appears.

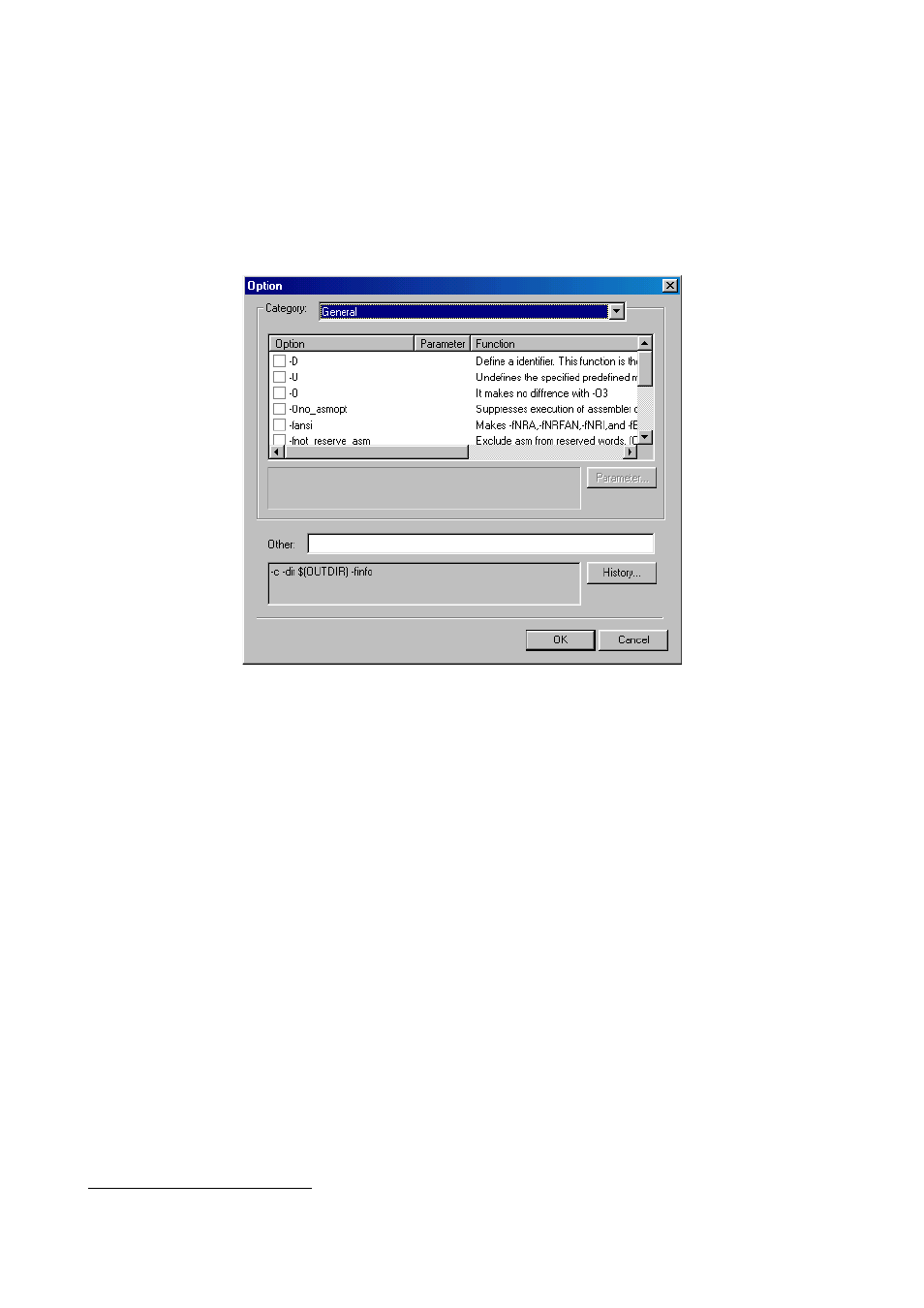

Fig. 3-17 Option Setup Dialog Box

Use this dialog box to choose the options you want to choose. Choose the type of option from Category and check the

options you need.

Use [Other] when you set any option not found in the above check box or when you set a known

option directly.

The “-finfo” option is needed for the inspector function to be used. Do not change options such as “-c” which are associated with make control.
