Panel descriptions | Connection panel of the FBC-7
14
r
FR-7b/FR-5b V-Accordion

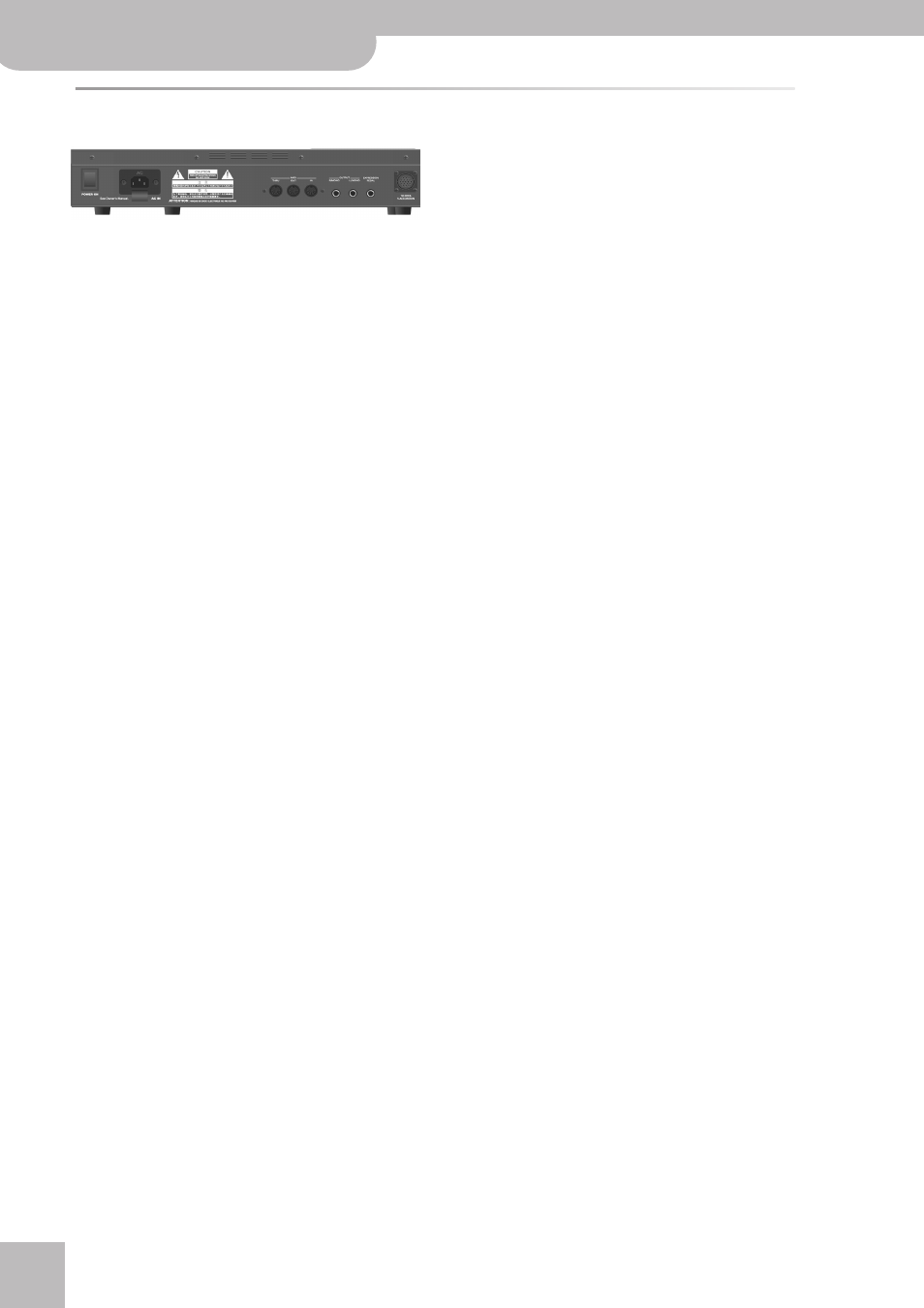

Connection panel of the FBC-7
A POWER ON switch
Press it to switch the FBC-7 (but not the FR-7b/
FR-5b) on and off.
B AC connector
This is where you need to connect the supplied power
cable. See also page 16.
C MIDI THRU/OUT/IN sockets
Use these sockets to connect the FR-7b/FR-5b to
external MIDI gear (see p. 82).
D OUTPUT R/MONO & L/MONO sockets
Connect these sockets to an external amplifier or
mixing console. For stereo operation, be sure to con-
nect both jacks.
E EXPRESSION PEDAL socket
This is where you can connect an optional EV-series
expression pedal (see p. 35).
F TO FR7/5 V-ACCORDION socket
Use the supplied 19-pin cable to connect this socket
to your FR-7b/FR-5b (see p. 35).
Note: See also “Using the FBC-7” on p. 35 for additional func-
tions of the FBC-7.
