1-16 hsb 2 PLUS Series LCD Display
O
pe
ra
tin
g C
on
tro
ls
Op
er
atin
g Con
tro
ls
1.4 Operating Controls
You operate the radar and chart using a variety of controls:
• A trackpad providing up, down, left, right and diagonal control of an on-
screen cursor.
• Eleven dedicated (labeled) control keys.
• Four soft keys with labels displayed on the screen.
• Pop-up menus, displayed on-screen, from which you select options.
• Database lists, displayed on-screen, which enable you to edit items.
Note: The cursor is the cross-hair symbol (+) visible on the display. You move
the cursor using the trackpad and use it to select a position or item on the chart.
The control keys are shown in Figure 1-6. They are back-lit for night-time use.
When you use a control, a help message is displayed at the top of the screen
(unless you switch help off as described in Chapter 7). The following
paragraphs describe the controls and on-screen facilities.

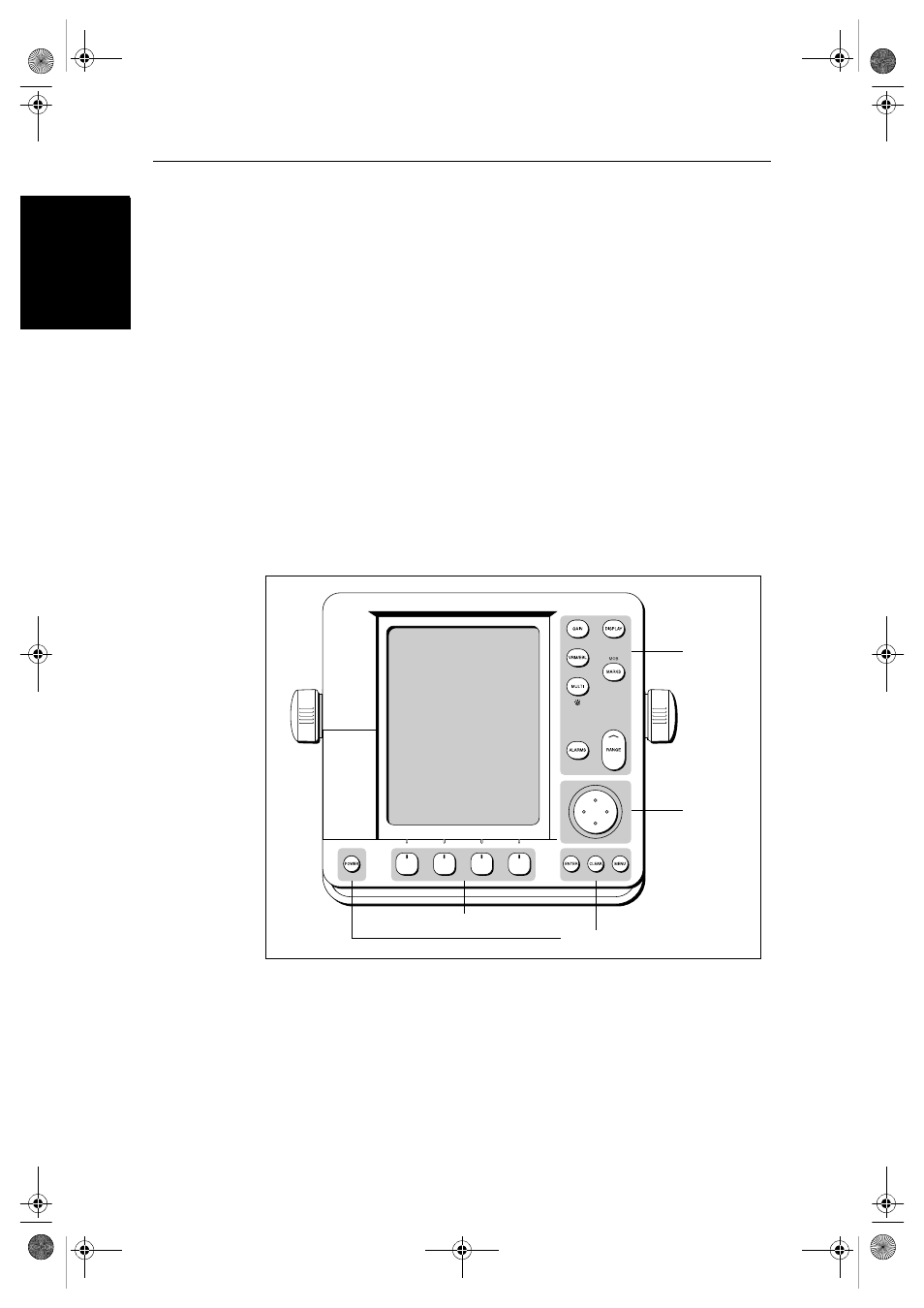

Figure 1-6: LCD Display Control Keys
Trackpad and Cursor
The trackpad has several functions:
• To move the cursor around the screen
• To select an item from a pop-up menu
• To adjust a variable soft key control
Dedicated
keys
Trackpad
Soft keys
Dedicated keys
D3596-3
