Chapter 8: Installation 8-9
M
ount
in
g t
he
Di
spl
ay
Un
it
8.5 Mounting the Display Unit
The display unit is waterproof to CFR46 and can be installed either above or
below deck. The display unit can be mounted using the mounting bracket
supplied, or console mounted using the optional flush-mounting kit (see
Section 8.2).
Mounting Bracket
The display unit can be mounted on a dash, chart table, bulkhead or deckhead.

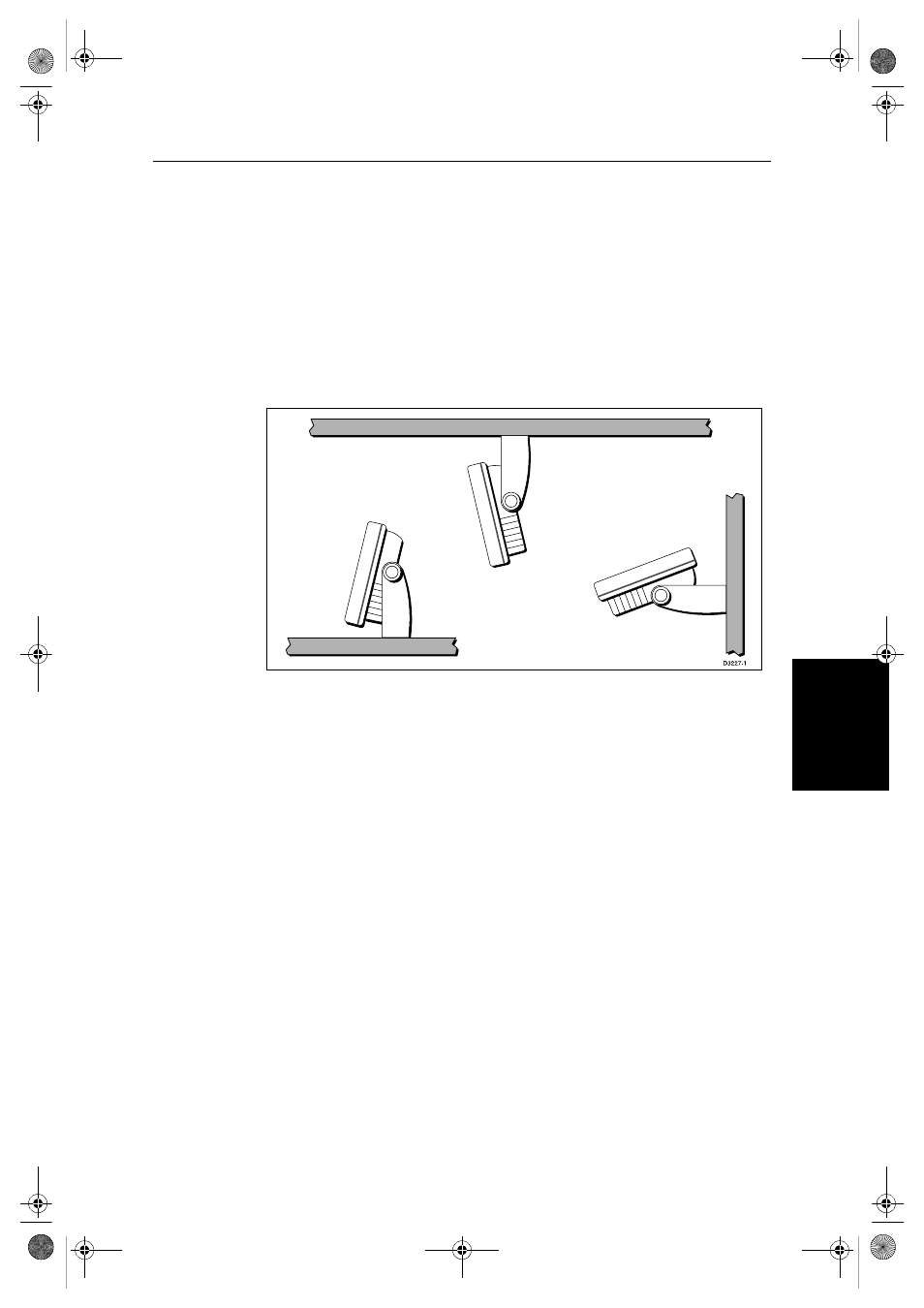

Figure 8-4: LCD Display Mounting
1. Loosen the knobs and remove the mounting bracket from the display unit.
2. Mark the locations of the mounting bracket screw holes on the mounting
surface.
3. Use the screws supplied to attach the mounting bracket at the marked loca-
tions.
4. Attach the display unit to the mounting bracket, adjust the display angle
and tighten the knobs.
Console Mounting
The display unit can be console mounted if required, using the optional flush-
mounting kit (M92708).
