(3) LED Display When the PC4701 Starts Up Normally
After the emulator starts up, check the status of the LEDs on the front panel to see whether emulation
pod operation is enabled or not. Figure 4.1 shows front panel LED lighting status when the emulator
is turned ON.

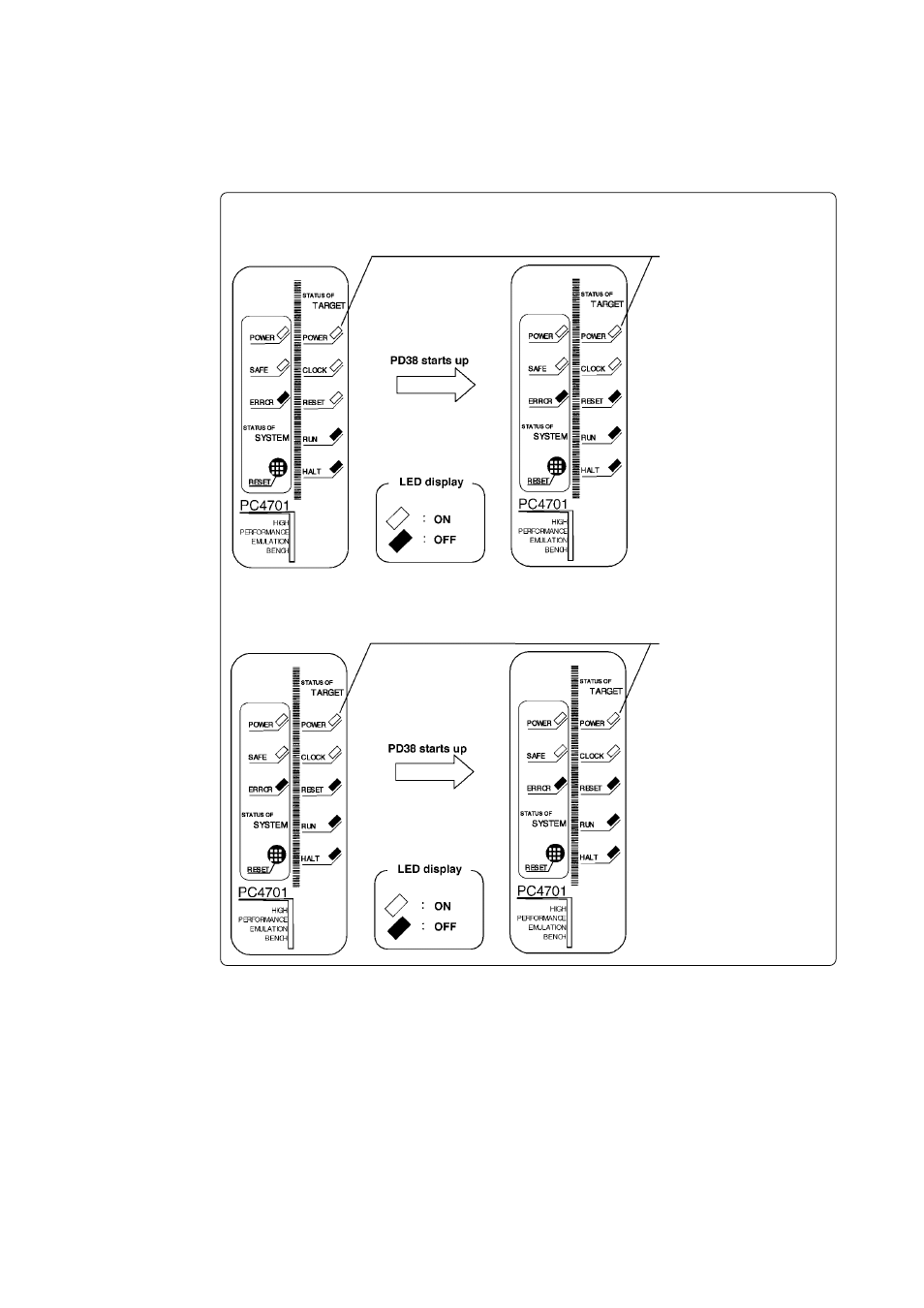

Figure 4.1 LED display when the power turned on
Started up normally
after powered on
When starting up M3T-PD38
When this does not light, check
the power voltage of the target
system.
When using M3T-PD38 V.2.00 Release 1 or earlier version
When using M3T-PD38 V.3.00 Release 1 or later
Started up normally
after powered on
When starting up M3T-PD38
When this does not light, check
the power voltage of the target
system.
