3.4 Connecting the Emulator MCU
There are following three methods to connect the emulator MCU and M38000TL2-FPD, so you can
choose the appropriate method depending on the type of an emulator MCU.
(1) When the emulator MCU is an RSS or RLSS chip
(2) When the emulator MCU is an RFS or RLFS chip with screw-lock
(3) When the emulator MCU is an RFS or RLFS chip without screw-lock
For methods (1) and (3), use the 28DP-WS board as the probe direction converter board; for method
(2), use the 32LCC-S board. Figures 3.3 and 3.4 show the top view of the 28DP-WS and that of the
32LCC-S, respectively.

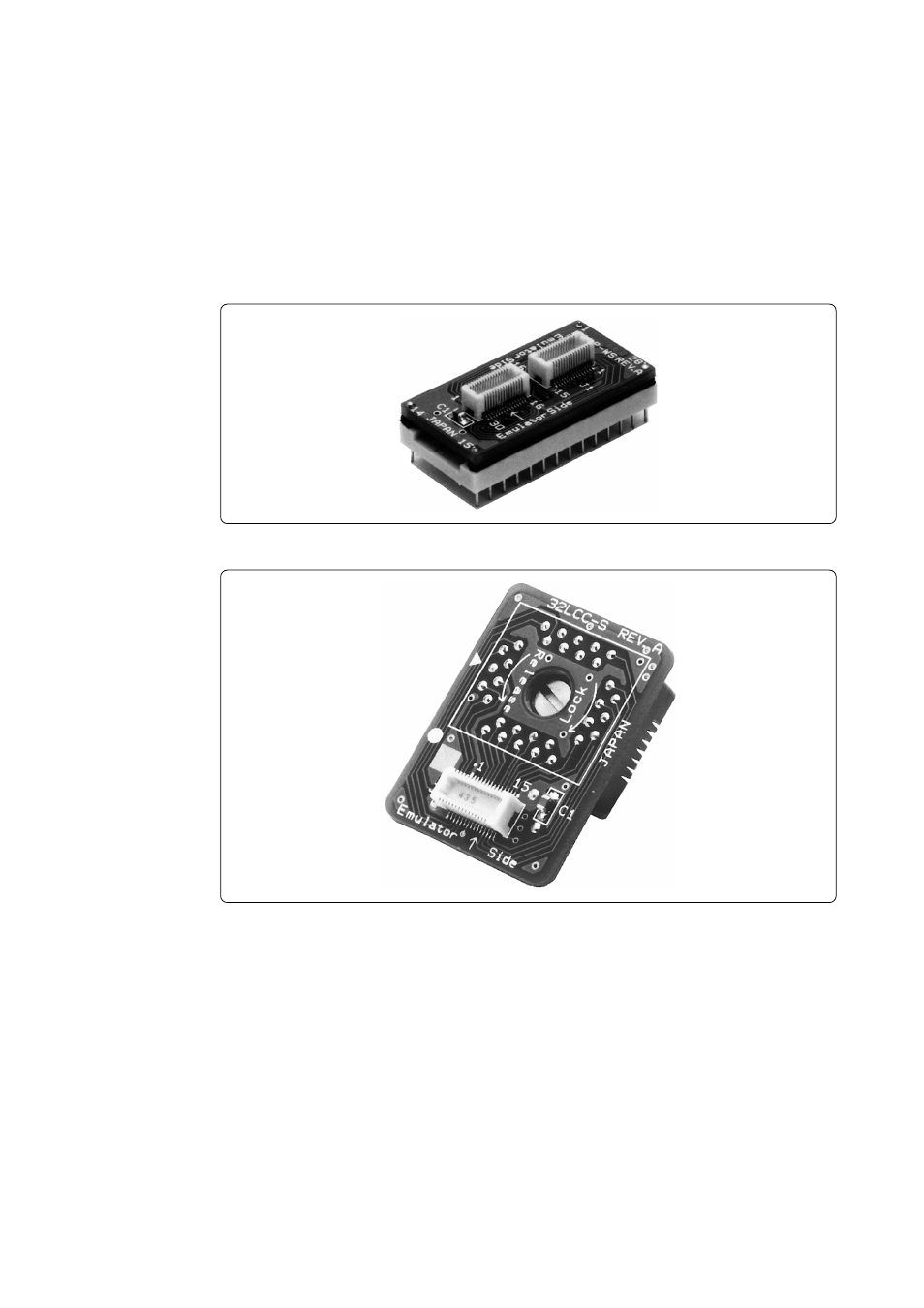

Figure 3.3 External view of the 28DP-WS (included)
Figure 3.4 External view of the 32LCC-S (included)
