2.3 Name of Each Part

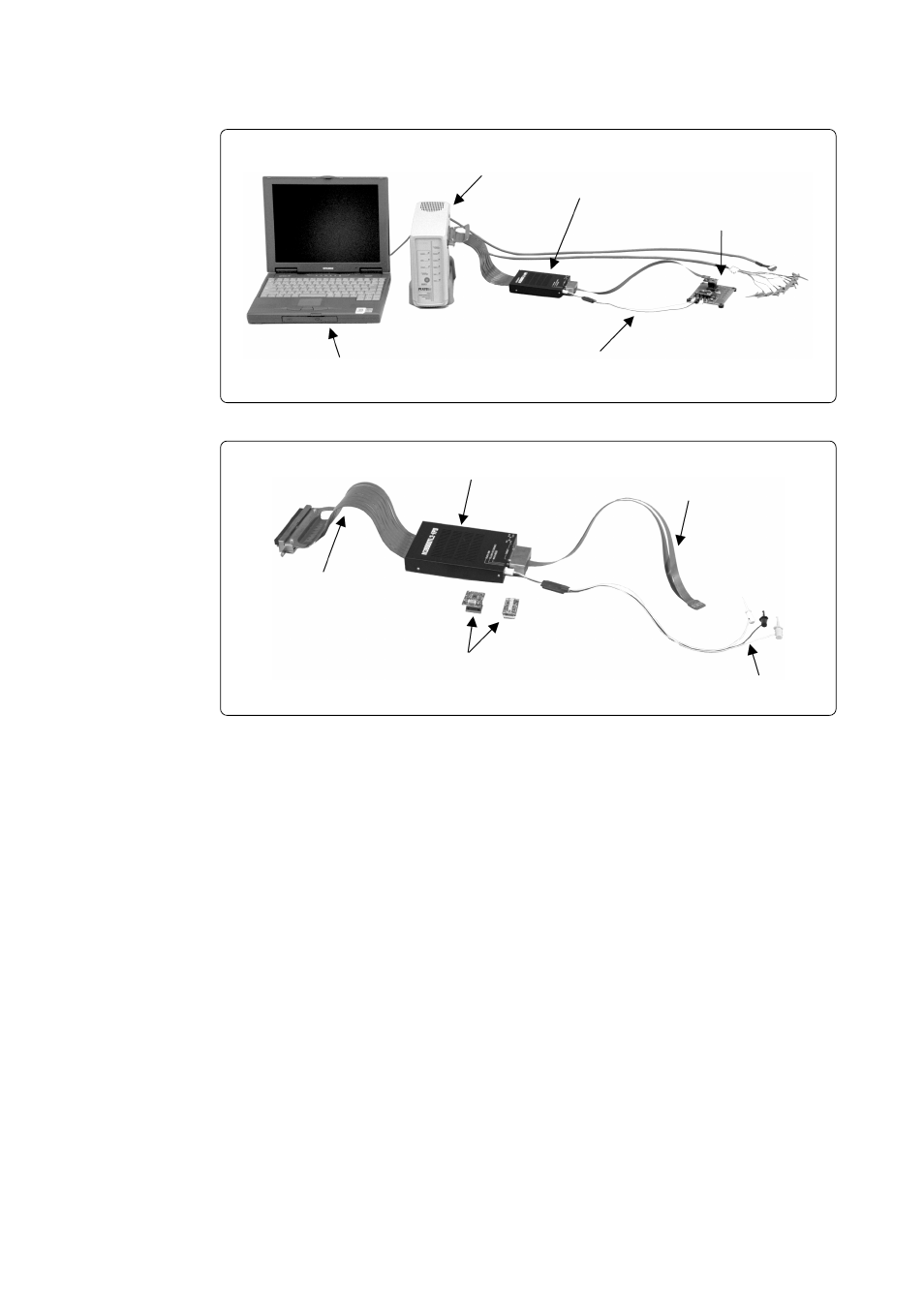

Figure 2.1 System configuration
Figure 2.2 M38000TL2-FPD
(1) Emulation pod (M38000TL2-FPD)
This emulation pod contains an evaluation MCU, emulation memory and circuit to feature the
debugging functions.
(2) Connector for connecting the PC4701
This 120-pin flexible cable connects the PC4701 emulator and the emulation pod.
(3) Flexible cable for connecting target system (PCA7733 REV.B)
This cable connects the emulation pod and target system.
(4) Probe direction converter board (28DP-WS, 32LCC-S)
These are the pitch converter and direction converter boards. For details, refer to "3.4 Connecting
the Emulator MCU" (page 23).
(5) RESET, GND and Vcc cables
Cables for connecting RESET, GND and Vcc pins on the target system. For details, refer to "3.6
M38000TL2-PSW (RESET, GND and Vcc Cables with Overcurrent Protective Circuits)" (page 27).
PC4701
Emulation pod main unit
(M38000TL2-FPD)
Target system
RESET, GND and Vcc cables with overcurrent protective circuits
Host machine
(1) Emulation pod main unit
(M38000TL2-FPD)
(3) Flexible cable for connecting target system
(PCA7733 REV.B)
(2) Connector for connecting the PC4701
(4) Probe direction converter board
(28DP-WS, 32LCC-S)
(5) RESET, GND and Vcc cables with
overcurrent protective circuits
