(2) When Emulator MCU is an RFS or RLFS Chip with Screw-lock
If the emulator MCU is an RFS or RLFS chip with a screw-lock, use the 32LCC-S board as the probe
direction converter board to connect with the target system.

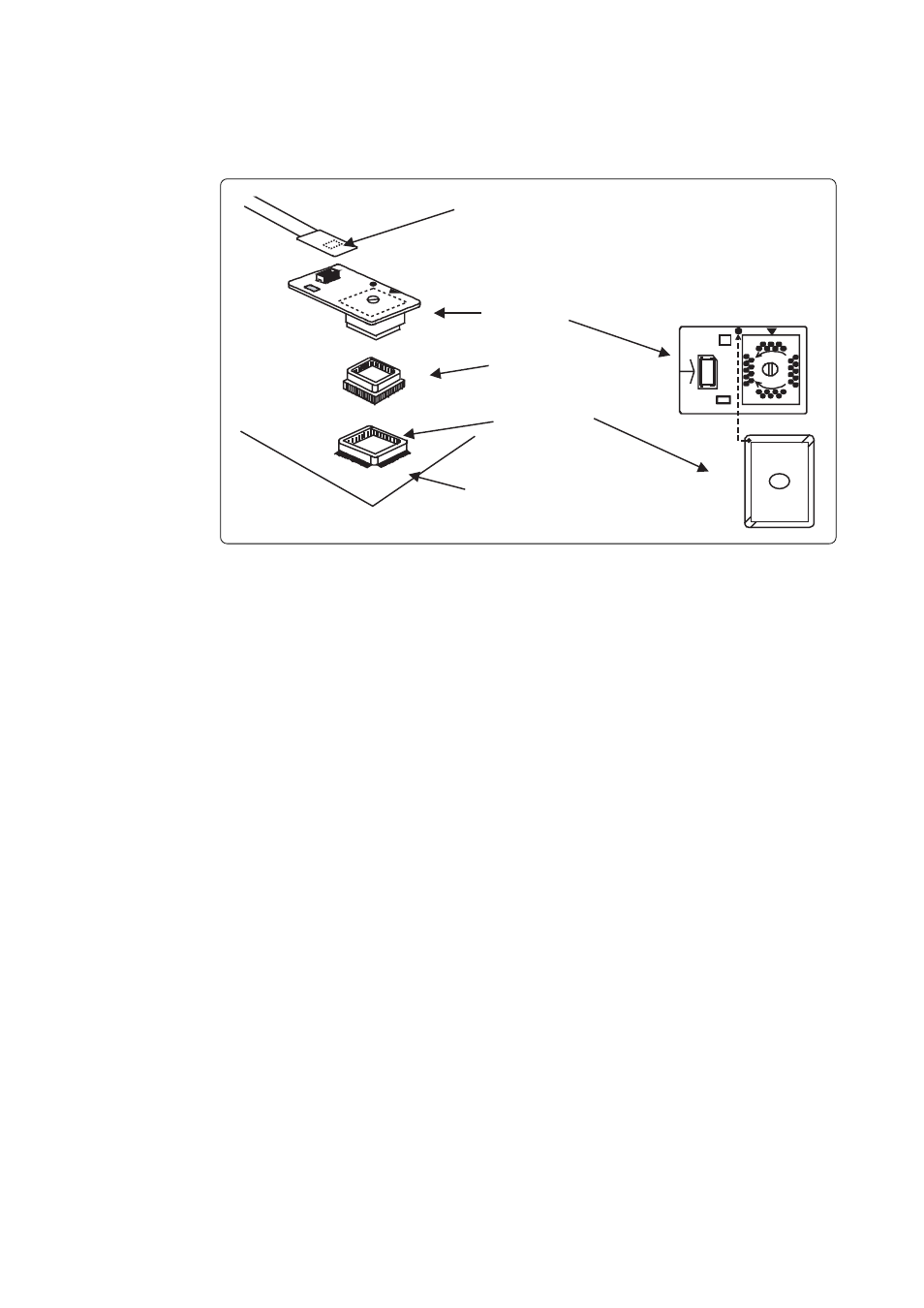

Figure 3.6 Connecting the M38000TL2-FPD and RFS chip (with screw-lock)
Emulator side
Re Rel e as a s e
Lo Lock
C1C
1
1
151
5
J1J1
32LCC-S
PCA7733 REV.B
LCC socket
Emulator MCU
with a screw-lock
Target system
Connecting procedure
(1) Connect the RFS/RLFS chip with a screw-
lock to the MCU socket on the target system.
(2) Connect the 32LCC-S to the RFS/RLFS chip
with a screw-lock.
(3) Connect the PCA7733 REV.B and the
32LCC-S.
Make sure the polarity key is set properly.
