Ignition Module

When additional heat is needed, the combustion air

blower starts to purge air from the combustion cham-

ber for about 15 seconds. On proof-of-air flow, the

air-proving switch closes and the igniter is energized.

To ensure safe operation, the gas valve cannot open

until the igniter is verified. The main burner is automat-

ically lit when the device is powered and pre-purged.

The heater performs its own safety check and opens

the main valve only after the igniter is proven to be

capable of ignition.

The standard ignition module will attempt to light three

times before locking out. To reset it, turn off power to

the heater, wait 30 seconds and re-apply power. The

optional single-try ignition module will lock out after

failing to light one time. To reset it, press and release

the small, recessed black push button located inside of

the cut-out on the lower right-hand corner of the igni-

Code

Condition

On

System OK;

No faults present

Off

Possible control fault;

Check power

1 Flash

Low air pressure, brief flash-

ing normal on start-up

2 Flashes

Flame in combustion

chamber; No call for heat

3 Flashes

Ignition lockout

4 Flashes

Low igniter current

5 Flashes

Low 24VAC, check control

supply voltage

6 Flashes

Internal fault;

Replace control

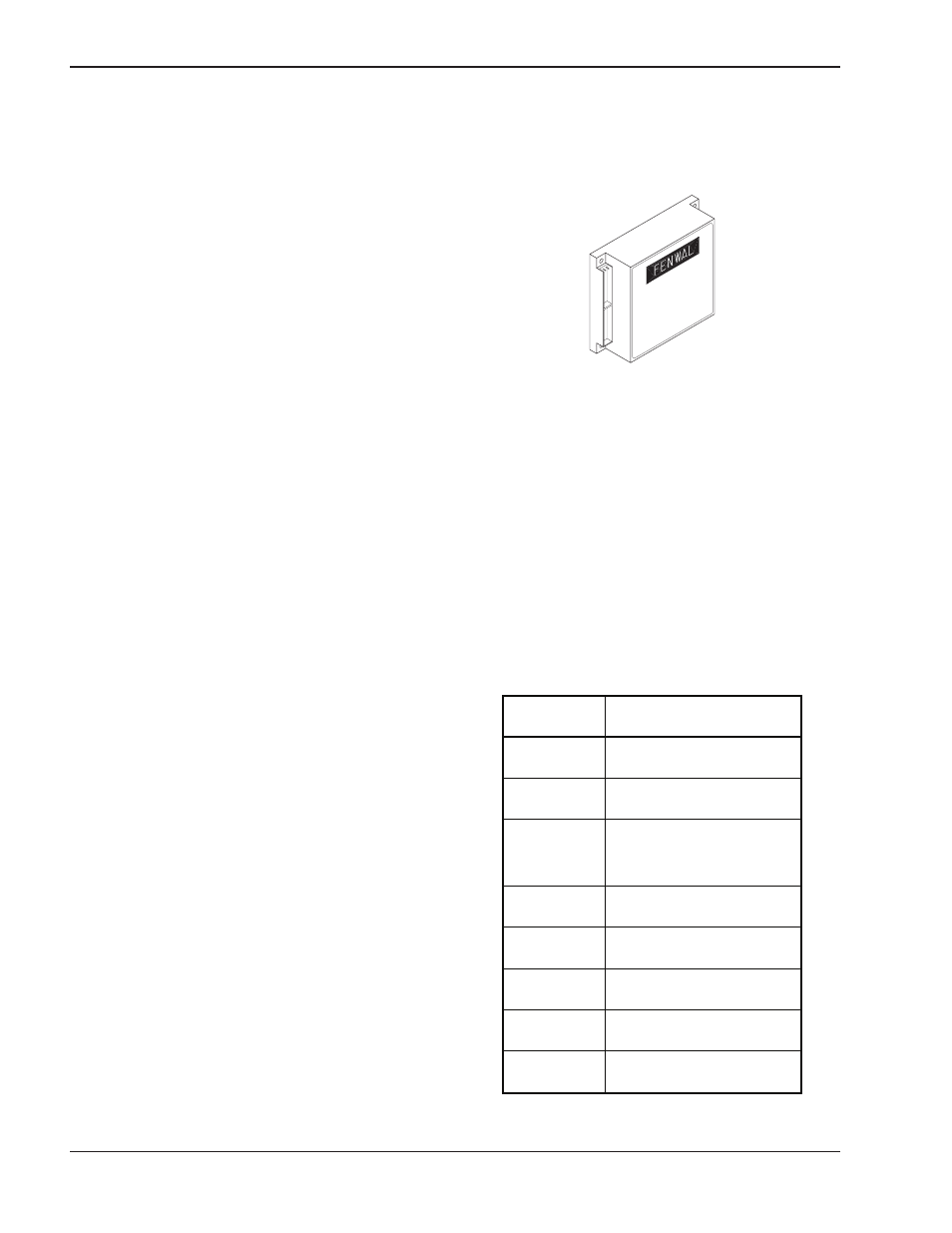

Fig. 29: Ignition Module

Table Q: Ignition Module

Diagnostic LED Codes

36

erly, a 24 VAC signal is output from pin GV on the

module.

44. 24 VAC signal is received at gas valve 1 thus ener-

gizing it.

45. The stage 1 LED on the status display board is

now illuminated.

46. The coil of relay K-2 is now energized with the

N.O. contacts closing downstream of the stage 2

connections.

47. The gas coming through the burners should ignite

from the heat of the hot surface igniter and the

flame should carry over from one burner to the

other burners of stage 1. The remote sensor is

now trying to sense the flame. If the flame is not

sensed within 4 seconds, the ignition module will

shut down gas valve 1 and retry the hot surface

igniter. During ignition retry the heater must per-

form a 15-second pre-purge and an approximately

30-second igniter warm-up before opening gas

valve 1 again. The standard ignition module will

attempt ignition a maximum of three times prior to

ignition lockout.

48. If the ignition module locks out, a signal will be

sent to the Universal Diagnostics Board to indicate

an ignition fault.

49. (Models 302B-402B only) 24 VAC is now waiting

at pin 3 of the stage 2 connections on the CPW

board.

50. (Models 502B-902B only) When power is sent to

gas valve 1 it is also sent to time delay relay 1 (TD-

1) which starts a 5-second countdown.

51. (Models 502B-902B only) After the 5-second

countdown from TD-1, 24 VAC is waiting at pin 3

of the stage 2 connections on the CPW board.

52. After closure of the stage 2 contacts Gas valve 2

is energized.

53. The stage 2 LED on the status display board is

now illuminated.

54. The Heater is now operating at full fire.
