Check the Power Source

Check the power source:

AC = 108 VAC Minimum, 132 VAC MAX

AB = 108 VAC Minimum, 132 VAC MAX

BC = <1 VAC Maximum

If the heater does not have a factory-wired stage con-

troller, it is factory-wired in an on-off configuration with

other stage terminals jumpered.

To field-connect a stage controller, remove factory-

installed jumpers and wire stage controller as shown in

Fig. 21.

Making the Electrical Connections

Refer to Fig. 18-23.

1. Verify that circuit breaker is properly sized by

referring to heater rating plate. A dedicated circuit

breaker should be provided.

23

CIRCUIT

BREAKER

WHITE

GROUND

BLACK

GREEN

A B C

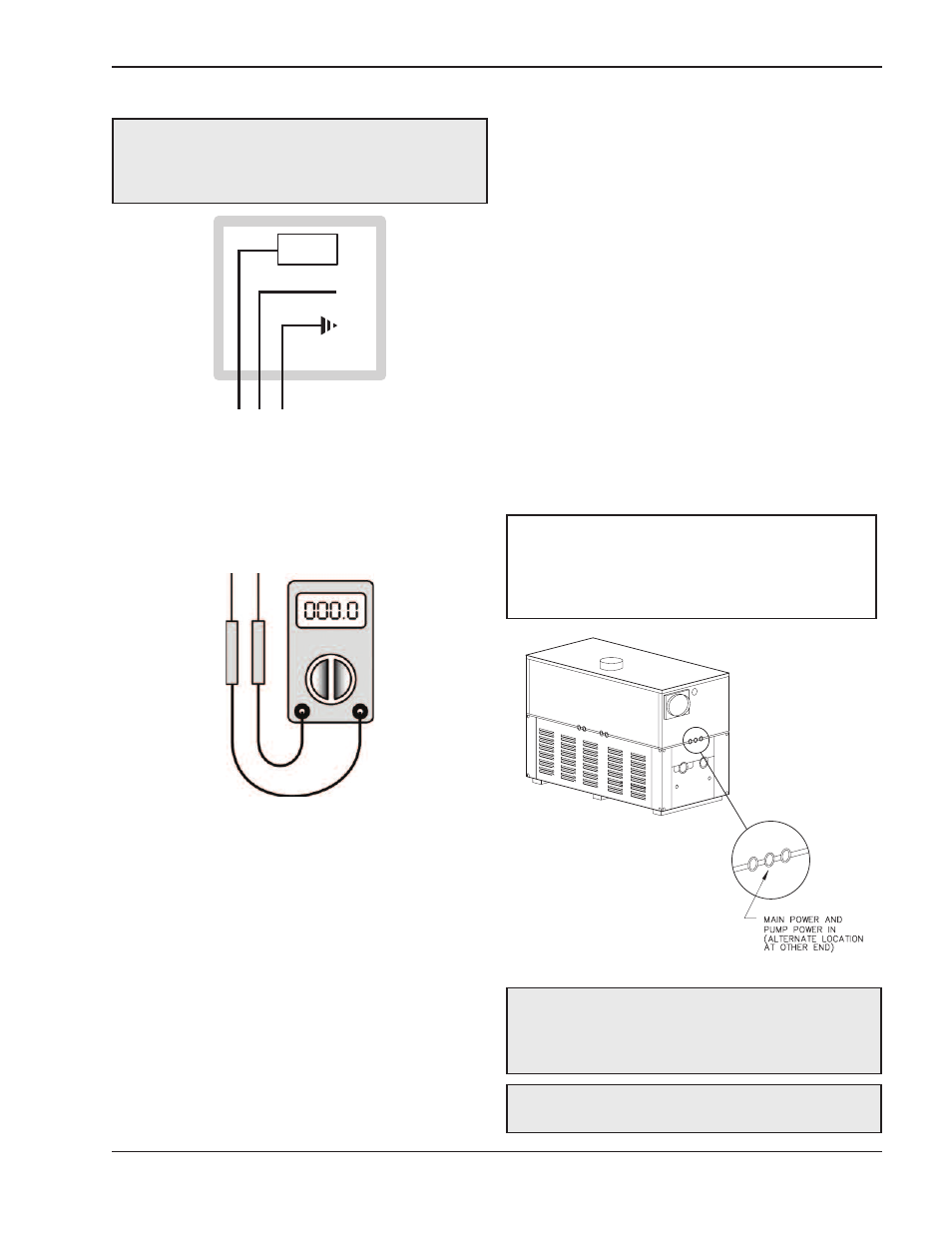

Fig. 18: Wiring Connections

Fig. 19: Multi-meter

2. Turn off all power to the heater. Verify that power

has been turned off by testing with a multi-meter

prior to working with any electrical connections or

components.

3. Observe proper wire colors while making electri-

cal connections. Many electronic controls are

polarity sensitive. Components damaged by

improper electrical installation are not covered by

warranty.

4. Provide overload protection and a disconnect

means for equipment serviceability as required by

local and state code.

5. Install heater controls, thermostats, or building

management systems in accordance with the

applicable manufacturers’ instructions.

6. Conduit should not be used as the earth ground.

Field Wiring Connection

NOTE: A grounding electrode conductor shall be

used to connect the equipment grounding

conductors, the equipment enclosures, and the

grounded service conductor to the grounding

electrode.

CAUTION: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause im-

proper and dangerous operation. Verify proper

operation after servicing.

Fig. 20: Wiring Location

WARNING: Using a multi-meter, check the

following voltages at the terminal block inside the

unit. Make sure proper polarity is followed and house

ground is proven. (See Fig. 18.)

CAUTION: For pumps larger than 3/4 HP, a

separate circuit breaker may be required.
