1. Overview
1.1 Outline of the Product
Table 1.1 Mounted Microcomputer Type
Mounted microcomputer type name M32176F4VFP
Evaluation board type name (socket mounted type) M3A-2152G02
Table 1.2 Specification of Product
Operation mode Single-chip mode, Processor mode and External extension mode
Board extension Can be extended using the board’s extension connector
CAN I/F Comes standard with a 2-channel CAN connector, CAN modular cord included
RS-232C I/F Comes standard with an RS-232C connector
Serial port One of four channels can be selected using a rotary switch
Analog port Inputs on two channels can be controlled using variable resistor (VR) controls
Display I/O Comes with a single-port LED
Input I/O Comes with a single-port toggle switch

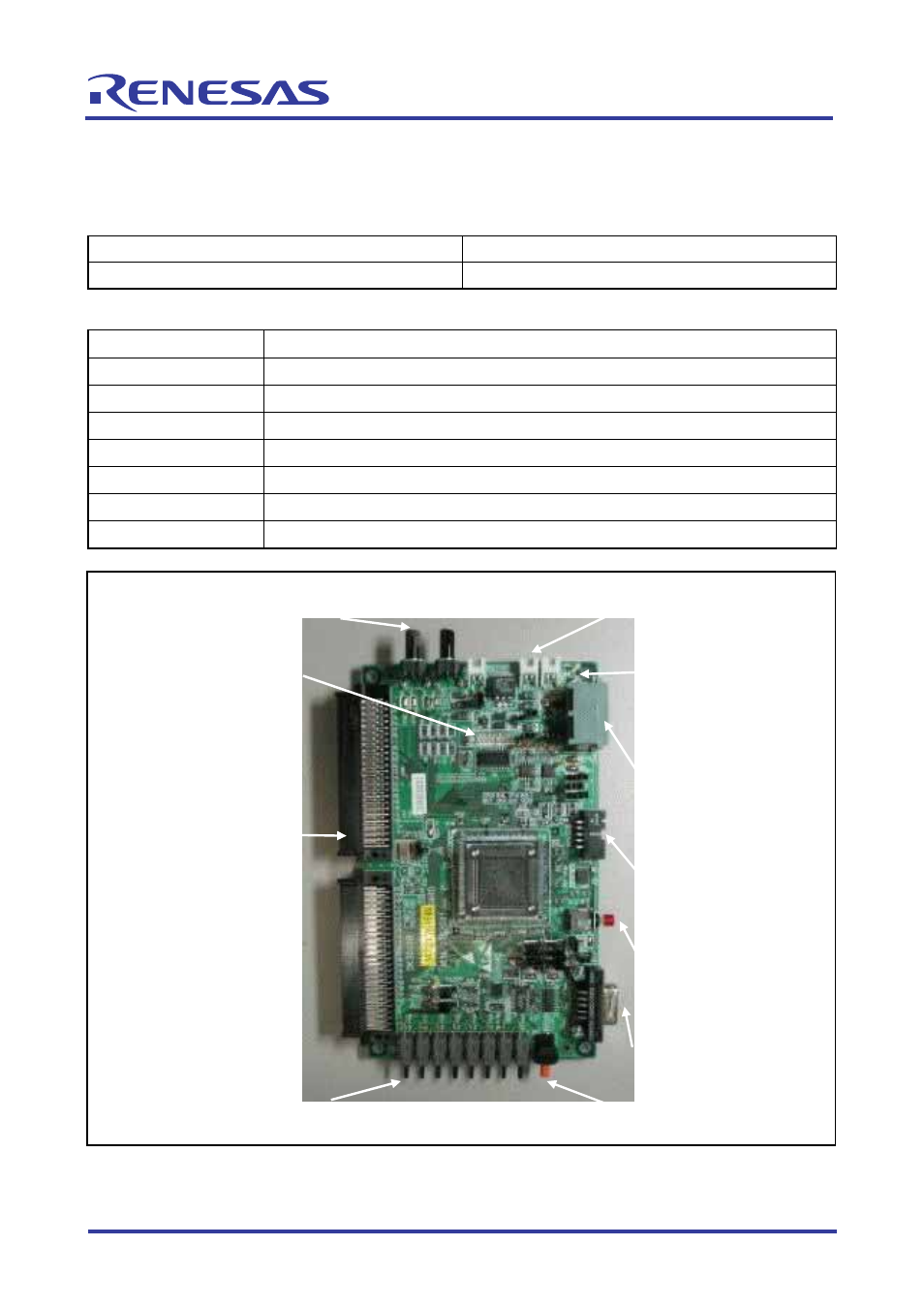

Figure 1.1 Photograph of the M3A-2152G02
Power supply connector
CAN connector
Reset key
JTAG connector
RS-232C connector
Rotary switch
(selects a serial I/O channel) Toggle switch
(port input)
LED indicator
(port output)
VR controls
External
extension
connector
LED indicator
(power-on)
