3.6 About Evaluation Board
When the evaluation board does not start operation after supplied power, check the following
points.
3.6.1 Contact failure of IC Socket
Oscillation or thermal expansion may cause a poor connection between microcomputers and IC
socket on the Evaluation Board. Follow the steps below.
-
Screw down the top cover of IC socket with setscrews at four corners.
The tightening torque shall be 0.054 N.m.
Note that only one tight setscrew may cause a poor connection.
The IC socket included in the evaluation board uses NQPACK and HQPACK by TOKYO
ELETECH CORPORATION.
For more details, visit their website at http://www.tetc.co.jp/e_index.htm.

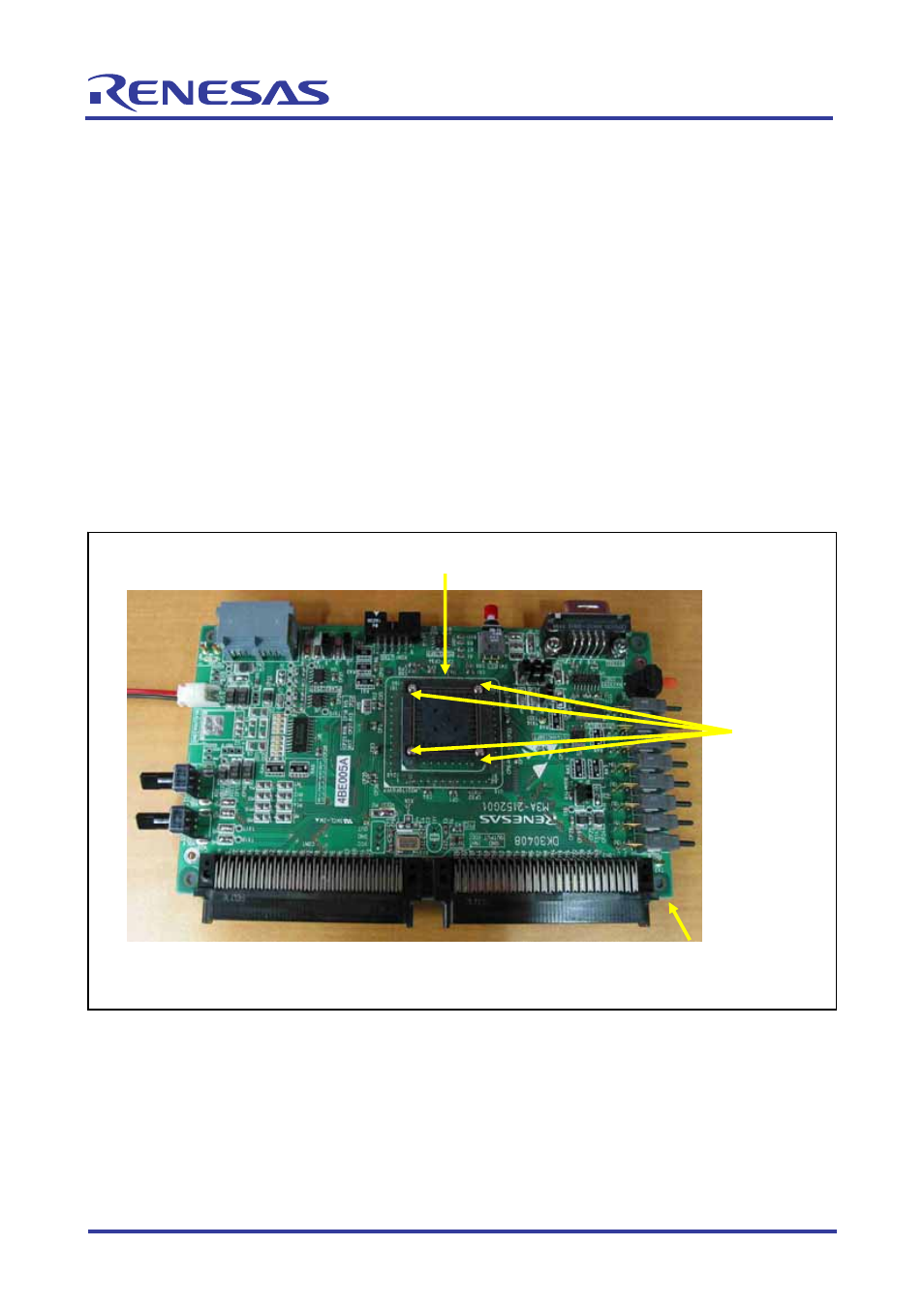

The following illustrates configuration of M3A-2152G02 (32176 Group Evaluation Board).
Figure 3.2 M3A-2154G02A
3.6.2 Cable
Connection
-
Make sure the cables are connected to the evaluation board firmly.
IC socket (HQPACK)
32176 group evaluation
board M3A-2152G02
Setscrews on
cover of
IC socket
