Renesas M30220TF-PRB User Manual
Page 46
( 44 / 54 )
(3) External Dimensions of the Converter Board (FLX-144NSE)

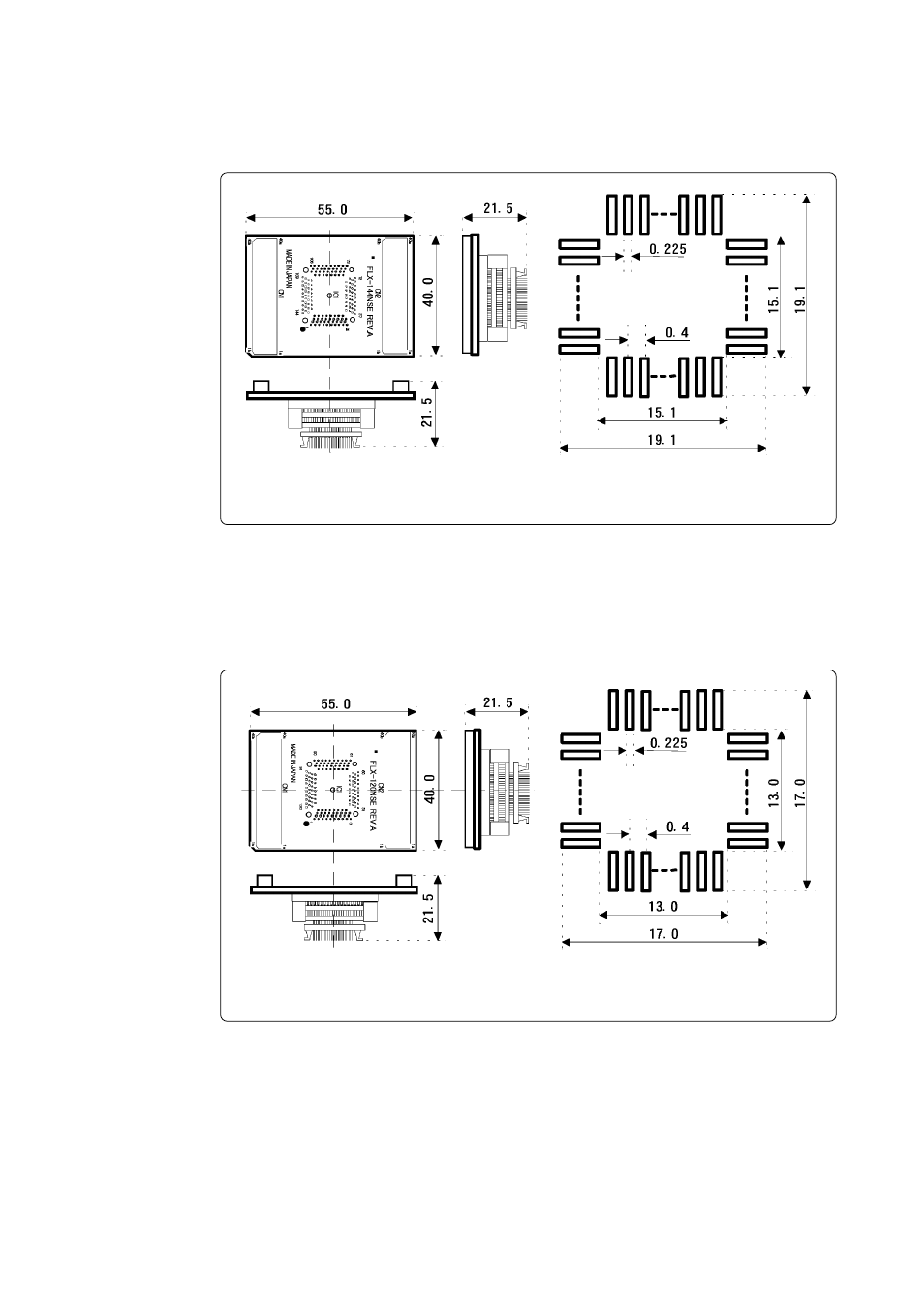

Figure 5.3 shows the external dimensions and a sample foot pattern of the pitch converter board FLX-
144NSE for 144-pin 0.4-mm-pitch TQFP.
Unit: mm
Figure 5.3 External dimensions of the FLX-144NSE
(4) External Dimensions of the Converter Board (FLX-120NSE)
Figure 5.4 shows the external dimensions and a sample foot pattern of the pitch converter board FLX-
120NSE for 120-pin 0.4-mm-pitch LQFP.
Unit: mm
Figure 5.4 External dimensions of the FLX-120NSE
Sample foot pattern
Sample foot pattern
