Caution – Renesas M30220TF-PRB User Manual
Page 27
( 25 / 54 )

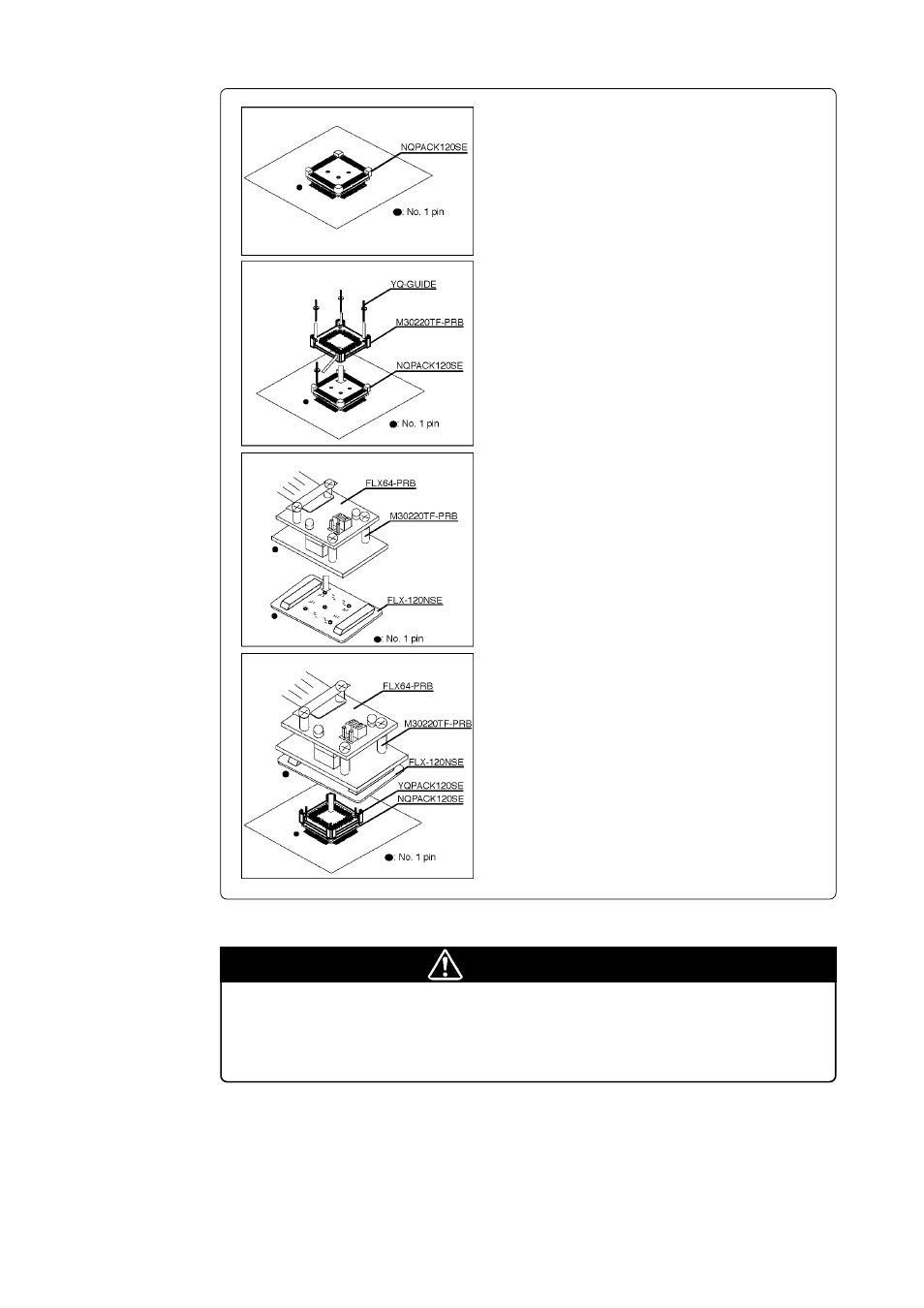

Figure 3.8 Connecting the pitch converter board FLX-120NSE for 120-pin 0.4-mm-pitch LQFP
CAUTION
Note on Connecting the Target System:
• Take care not to mount the pitch converter board in a wrong direction.
(1) Mount the NQPACK120SE included in the FLX-
120NSE (separately available) to the target system.
(2) Connect the YQPACK120SE included in the FLX-
120NSE to the NQPACK120SE. Secure the
YQPACK120SE using the YQ-GUIDE's.
(3) Connect the FLX-120NSE to the M30220TF-PRB.
(4) Connect the FLX-120NSE to the YQPACK120SE.
