3.2 A-D Conversion Bypass Capacitor
This product has foot patterns on the board for mounting a bypass capacitor for the A-D converter
circuit. Mount a suitable bypass capacitor as occasion demands.

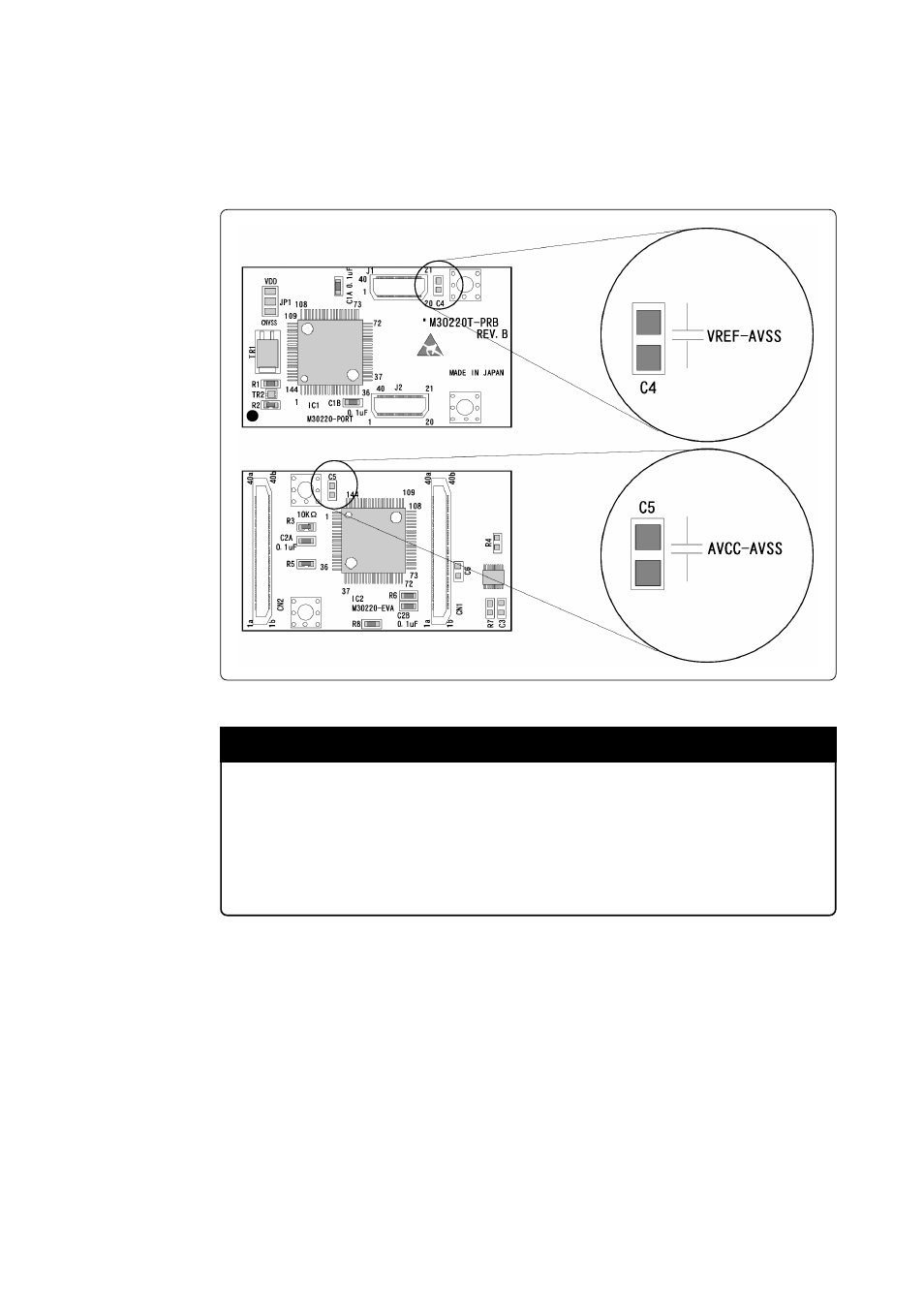

Figure 3.2 shows the position of the bypass capacitor.
Figure 3.2 Foot patterns of A-D conversion bypass capacitor
IMPORTANT
Note on the Operation of A-D Converter:
• The characteristics of A-D converter differ from those of actual MCU because there
are a flexible cable, pitch converter and other devices between the evaluation MCU
and the target system. Make the final evaluation of the A-D converter with the actual
MCU.
