2.3 System Configuration

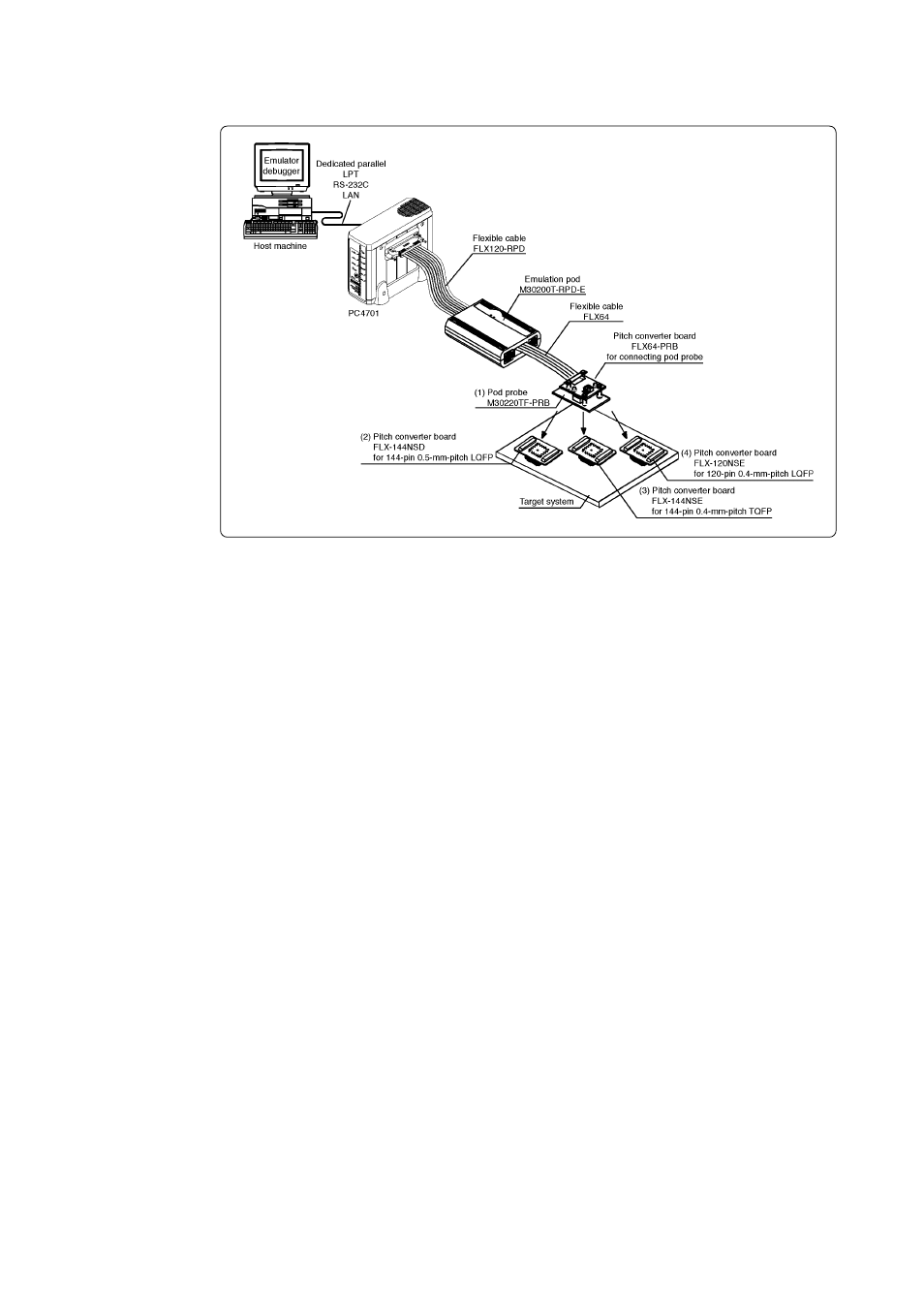

Figure 2.1 System configuration
Product (1) shown in Figure 2.1 is this product. Get (2) to (4) separately.
(1) Pod probe (M30220TF-PRB)
This pod probe is for flash memory rewrite mode debug of M30220 and M30221 Group MCUs.
The evaluation MCUs M30220GP-EVA and M30220GP-PORT are mounted on it.
(2) Pitch converter board for 144-pin 0.5-mm-pitch LQFP (FLX-144NSD)
This is a pitch converter board (separately available) to be mounted on the foot pattern for 144-
pin 0.5-mm-pitch LQFP prepared on the target system.
(3) Pitch converter board for 144-pin 0.4-mm-pitch TQFP (FLX-144NSE)
This is a pitch converter board (separately available) to be mounted on the foot pattern for 144-
pin 0.4-mm-pitch TQFP prepared on the target system.
(4) Pitch converter board for 120-pin 0.4-mm-pitch LQFP (FLX-120NSE)
This is a pitch converter board (separately available) to be mounted on the foot pattern for 120-
pin 0.4-mm-pitch LQFP prepared on the target system.
For details on the connection, refer to "3.4 Connecting the Target System" (page 22).
